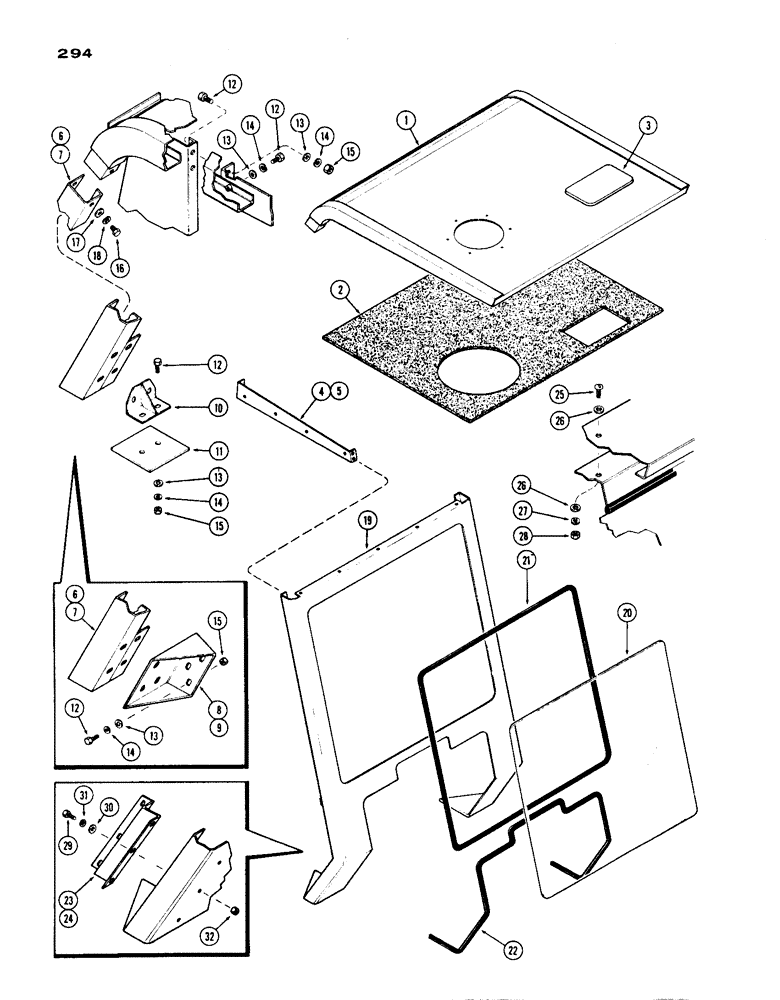

Запчасти Case IH 1200 (294) - CAB ROOF AND WINDSHIELD (09) - CHASSIS

1

L30061

ROOF ASSY. - cab, Includes: Ref. 2 and 3

1шт.

2

L30133

INSULATOR

INSULATION - roof

1шт.

3

L30723

VENTILATOR ASSY. - cab

1шт.

L30147

HANDLE - roof ventilator (not illust.)

1шт.

4

L30118

HEADER - right hand cab door

1шт.

5

L30119

HEADER - left hand cab door

1шт.

6

L30068

LEG - cab right hand rear strut

1шт.

7

L30069

LEG - cab left hand rear strut

1шт.

8

L30070

ANGLE - right hand strut (fuel tank mount)

1шт.

9

L30071

ANGLE - left hand strut (fuel tank mount)

1шт.

10

L30378

ANGLE - strut (Fender mount)

2шт.

11

L30377

PLATE - angle base (fender mount)

2шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Plate & Roof Hex, 5/16"-18 x 1", G5, Full Thd

16шт.

13

195-103

WASHER,5/16"

- flat, 5/16"

16шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

16шт.

15

9635082

NUT,5/16" - 18, Gr 5

8шт.

16

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Strut Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

17

195-104

WASHER,3/8"

- flat, 3/8"

4шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

19

L30064

PANEL ASSY. - cab, front, Includes: Ref. 20 - 22

1шт.

20

L30109

WINDSHIELD - (safety glass)

1шт.

21

L30079

MOLDING - window weatherstrip (150" long)

1шт.

22

L30095

GASKET - panel (108" long)

1шт.

23

L30116

BRACKET - front panel mtg., right hand

1шт.

24

L30117

BRACKET - front panel mtg., left hand.

1шт.

25

175-410

SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- panel, 5/16" x 3/4" N.C. truss hd.

5шт.

26

195-103

WASHER,5/16"

- flat, 5/16"

10шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

28

9635082

NUT,5/16" - 18, Gr 5

5шт.

29

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Bracket Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

30

195-104

WASHER,3/8"

- flat, 3/8"

6шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.
