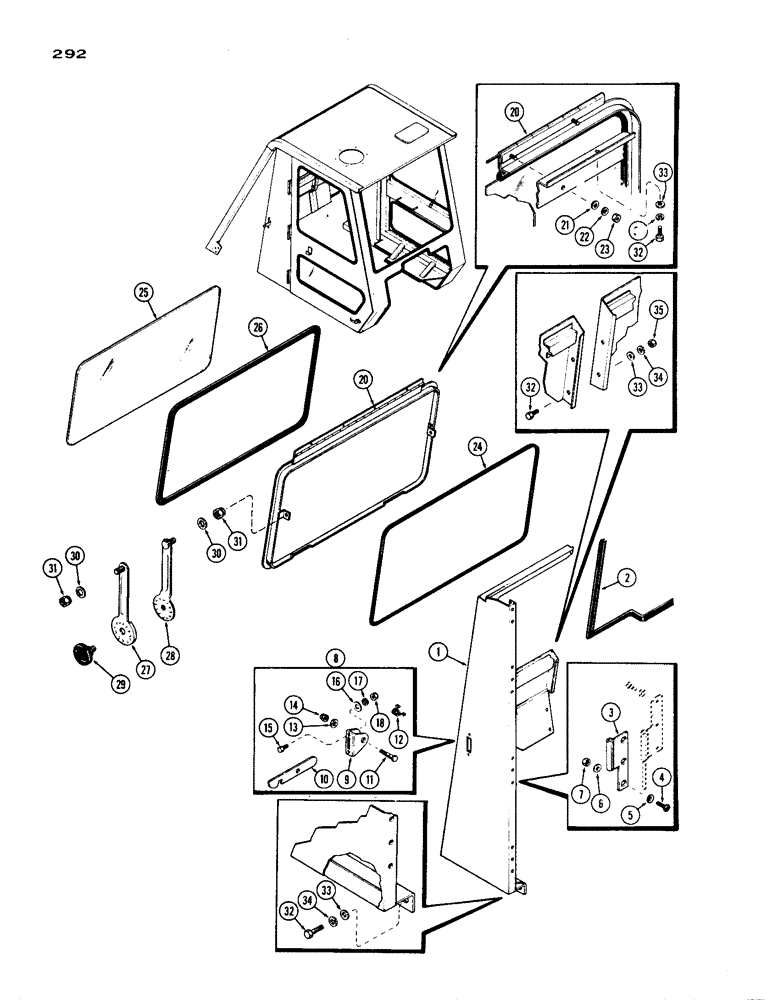

Запчасти Case IH 1200 (292) - CAB REAR PANEL (09) - CHASSIS

1

L30063

PANEL ASSY. - rear right hand, Includes: Ref. 2 - 7

1шт.

1

L30062

PANEL ASSY. - rear left hand, Includes: Ref. 2 - 7

1шт.

2

L30148

GASKET - panel

1шт.

3

L30123

HINGE - door, right hand panel

3шт.

4

L30121

HINGE - door, left hand panel

3шт.

4

171-206

SCREW,Flat Hd, Spin Lock, 1/4" X 3/4"

- hinge, 1/4 x 3/4" N.C., flat hd.

9шт.

5

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

9шт.

6

195-52

WASHER

- flat, 1/4"

9шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

9шт.

8

L30920

LATCH ASSY. - door (replaces L30067), Includes: Ref. 9 - 14

2шт.

9

L30098

BRACKET - door latch

1шт.

10

L30099

LATCH - door strap

1шт.

11

L30100

PIN - latch pivot

1шт.

12

L30101

SPRING - latch tension

1шт.

13

195-518

WASHER,1/4", SAE

- latch pin, 1/4" flat

1шт.

14

131-506

NUT,1/4-20

NUT - latch pin, 1/4" N.C. Flexloc

1шт.

15

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

Bracket Hex, 1/4"-20 x 5/8", G5, Full Thd

2шт.

16

195-518

WASHER,1/4", SAE

- flat, 1/4"

2шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

L30060

FRAME ASSY. - cab rear window (not illust.), Includes: Ref. 20 - 31

1шт.

20

L30111

FRAME ASSY. - window, w/hinge

1шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

22

195-103

WASHER,5/16"

- flat, 5/16"

4шт.

23

9635082

NUT,5/16" - 18, Gr 5

4шт.

24

L30074

GASKET - frame (122" long)

1шт.

25

L30110

GLASS - safety, rear window, (tinted)

1шт.

26

L30078

MOLDING - window weatherstrip (113" long)

1шт.

27

L30142

ARM - right hand (female)

1шт.

27

L30140

ARM - left hand (female)

1шт.

28

L30141

ARM - right & left hand (male)

2шт.

29

L30087

KNOB

- arm lock

2шт.

30

95-6

WASHER,3/8"

- lock, 3/8"

4шт.

31

131-508

NUT,3/8"-16

NUT - arm, 3/8" N.C. Flexloc

4шт.

32

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Panel Hex, 5/16"-18 x 1", G5, Full Thd

21шт.

33

195-103

WASHER,5/16"

- flat, 5/16"

21шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

21шт.

35

9635082

NUT,5/16" - 18, Gr 5

3шт.
