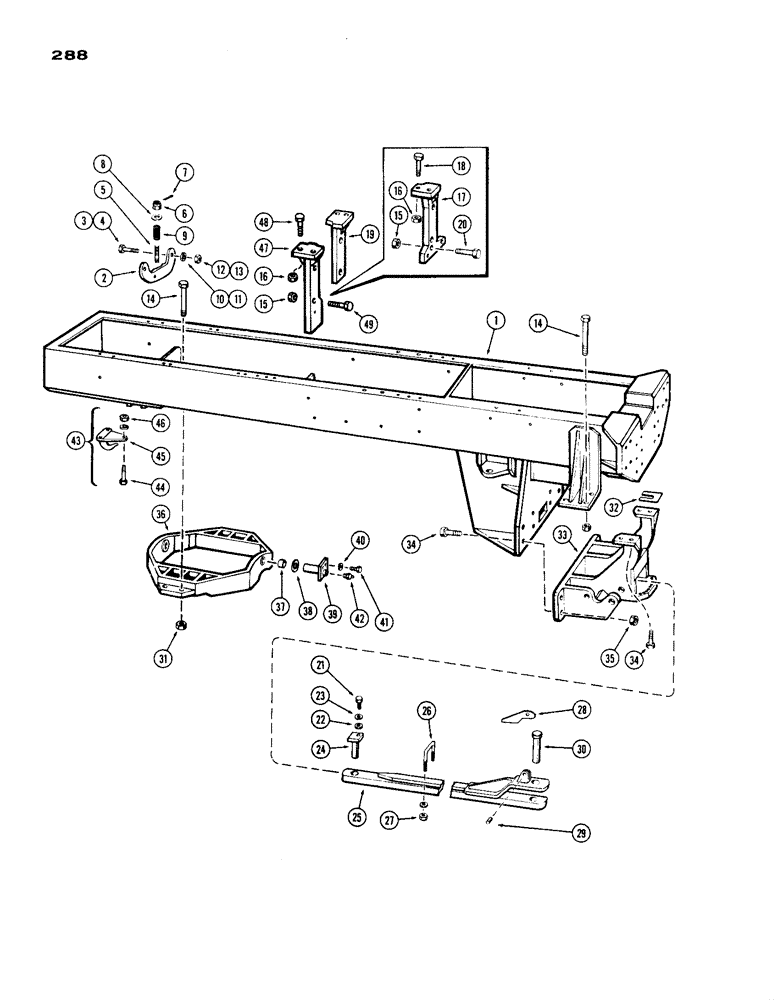

Запчасти Case IH 1200 (288) - FRAME DRAWBAR AND ATTACHING PARTS (09) - CHASSIS

1

A55001

FRAME ASSY. - tractor

1шт.

2

A55292

SUPPORT - front engine

1шт.

3

15-1240

X

BOLT - support, 3/4 x 2-1/2" N.C. hex. hd.

1шт.

4

15-1244

BOLT

- support, 3/4 x 1-3/4" N.C. hex. hd.

1шт.

5

A12226

STUD - front engine mount

1шт.

6

131-17

LOCK NUT

NUT - 7/8" N.F. hex., (Essna lock)

1шт.

7

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

8

195-49

WASHER

- 7/8" plain

3шт.

9

A12227

VALVE SPRING

SPRING - engine mounting stud

1шт.

10

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

11

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

12

25-1012

NUT,3/4"-10, G5

1шт.

13

25-1412

JAM NUT,Jam, 3/4"-10, G5

- jam, 3/4" N.C. hex.

1шт.

14

116-702

BOLT

BOLT - trunnion, 3/4 x 8" N.F., hex. hd. (Grade 8)

16шт.

15

131-18

TUBE NUT,7/8"-9, GB

NUT - lock, 7/8" N.C. hex.

4шт.

16

131-20

LOCK NUT,1"-8, GB

NUT - lock, 1" N.C. hex.

4шт.

17

A55187

SUPPORT - trans. L.H. (Prior Unit S/N 9801866)

1шт.

18

13-1660

BOLT,Hex, 1" - 8 x 3-3/4", Gr 5

Support Hex, 1"-8 x 3 3/4", G5

4шт.

19

A55186

SUPPORT - transmission, R.H.

1шт.

20

13-1468

BOLT,Hex, 7/8" - 9 x 4-1/4", Gr 5

- support, 7/8 x 4-1/4" N.C., hex. hd.

4шт.

21

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Pin Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

22

195-33

WASHER,1/2"

- plain 1/2"

1шт.

23

92-8

LOCK WASHER,1/2"

1шт.

24

A55266

PIN - drawbar pivot

1шт.

25

A56536

DRAWBAR - unit (Late Model Tractor)

1шт.

25

A55181

DRAWBAR - unit (Early Model Tractor)

1шт.

26

A55133

U-BOLT - drawbar

1шт.

27

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

1шт.

28

A56540

LEVER - drawbar latch

1шт.

29

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

1шт.

30

A56523

PIN - implement attaching

1шт.

31

131-186

LOCK NUT,3/4"-16, GB

NUT - lock, 3/4" N.F., hex.

16шт.

32

A56516

SHIM,.030" Thk

Drawbar support .030" Thk

6шт.

33

A55122

SUPPORT - drawbar

1шт.

34

15-1248

X

BOLT - support, 3/4 x 3" N.C., hex. hd.

12шт.

35

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

12шт.

36

L10307

TRUNNION ASSY. - front axle mounting, Includes: Ref. 37

1шт.

37

A12058

BUSHING,44.88mm ID x 53.92mm OD x 38.1mm L

- trunnion mounting

2шт.

38

A14003

WASHER

"T" WASHER - trunnion mtg. & pivot

2шт.

38

A14001

PIN - trunnion pivot

2шт.

40

A15157

LOCK ASSY

LOCK - pivot pin bolt

2шт.

41

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Pivot Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

42

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

43

A56110

ATTACHMENT - towing hook (Mach. item), Includes: Ref. 44 - 46

1шт.

44

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Hook mounting Hex, 5/8"-11 x 2 1/2", G5

3шт.

45

A56111

HOOK - towing (use Ref. 43)

1шт.

46

25-1010

NUT,5/8"-11, G5

3шт.

47

L10528

SUPPORT - trans. L.H. (Unit S/N 9801866 and after)

1шт.

48

113-906

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8, Full Thd

- support, 1 x 2-3/4" N.C. hex. hd. (Z.P.)

4шт.

49

113-800

BOLT - support, 7/8 x 3-3/4" N.C. hex. hd. (Z.P.)

4шт.
