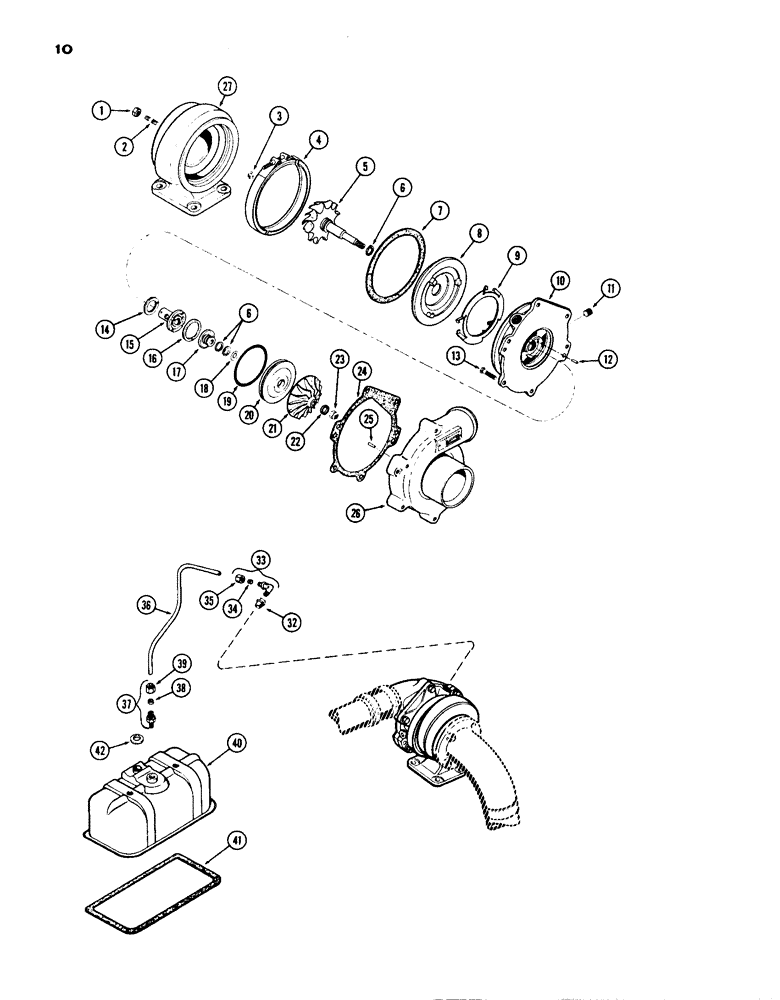

Запчасти Case IH 1200 (010) - TURBO CHARGER, (451) DIESEL ENGINE (02) - ENGINE

1

131-903

NUT,3/8"-16

NUT - N.C. Seez-Prof. (Steel) 3/8"-16

4шт.

2

A29356

STUD

- exhaust, Serial Range: mtg.-turbo

4шт.

A24934

X

TURBOCHARGER ASSY - engine (Order A34289, P.11B), Includes: Ref. 3 - 27

1шт.

3

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT LOCK #10-32 hex. (cadium plated)

1шт.

4

A40448

CLAMP ASSY - vee, turbo hsg. (Exh. stock, then use A56252)

1шт.

4

A56252

CLAMP

ASSY - vee, turbo housing

1шт.

5

A56253

WHEEL & SHAFT - turbine

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston ring (Order A56278 kit)

3шт.

7

A56251

GASKET - turbine hsg.

1шт.

8

A56255

SHIELD - turbocharger

1шт.

9

A56256

SPRING - turbo ring

1шт.

10

A56257

HOUSING - turbo bearing

1шт.

11

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, 1/2" hex. sckt. hd.

2шт.

12

138-51

LOCK PIN,1/8" x 3/8", Slotted

PIN, 1/8" x 3/8", Slotted

1шт.

13

A56276

BOLT - turbo compressor hsg.

6шт.

14

A56260

SHIM - turbo bearing (.014")

1шт.

14

A56259

SHIM - turbo bearing (.012")

1шт.

14

A56263

SHIM - turbo bearing (.011")

1шт.

14

A56258

SHIM - turbo bearing (.010")

1шт.

14

A56262

SHIM - turbo bearing (.009")

1шт.

14

A56261

SHIM - turbo bearing (.008")

1шт.

15

A56264

BEARING

- turbo shaft

1шт.

16

A56265

RING - bearing retainer

1шт.

17

A56267

SPACER - turbo shaft

1шт.

18

A56269

SHIM - turbo impeller (.010")

1шт.

18

A56270

SHIM - turbo impeller (.015")

1шт.

19

A56268

O-RING

"O"RING - turbo oil retainer

1шт.

20

A56266

PLATE - oil retainer

1шт.

21

A56271

IMPELLER - turbo

1шт.

22

A56273

WASHER - turbo impeller

1шт.

23

A56272

NUT - self-aligning, hex (left-hand thread)

1шт.

24

A56275

GASKET - compressor hsg.

1шт.

25

135-256

PIN - groove, 1/4" x 5/8" type 2

2шт.

26

A56274

HOUSING - turbo compressor

1шт.

27

A56250

HOUSING - main, turbo

1шт.

A56278

SEAL ASSY.

SEAL AND RING KIT - turbo (contains ref. #6 and tool)

1шт.

32

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

BUSHING - reducer, 1/2" to 1/4" pipe, turbo charger venting 1st used eng s/n 2136869 use w/A24934 only

1шт.

33

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY - 90deg. x #69 ft. 5/16" tube x 1/4" P.T., turbo charger venting 1st used eng s/n 2136869 use w/A24934 only, Includes: Ref. 34 and 35

1шт.

34

222-103

SLEEVE,5/16" Tube

#60 ft., , turbo charger venting 1st used eng s/n 2136869 use w/A24934 only 5/16" Tube

1шт.

35

222-113

TUBE NUT,9/16"-24

NUT #61 ft. 5/16" tube, turbo charger venting 1st used eng s/n 2136869 use w/A24934 only

1шт.

36

A34293

TUBE - turbo charger venting 1st used eng s/n 2136869 use w/A24934 only

1шт.

37

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY #68 Fl., 5/16" tube x 1/4" P.T., turbo charger venting 1st used eng s/n 2136869 use w/A24934 only, Includes: Ref. 38 and 39

1шт.

38

222-103

SLEEVE,5/16" Tube

- connector, #60 fl., , turbo charger venting 1st used eng s/n 2136869 use w/A24934 only 5/16" Tube

1шт.

39

222-113

TUBE NUT,9/16"-24

NUT - flex, #61 fl., 5/16" tube, turbo charger venting 1st used eng s/n 2136869 use w/A24934 only

1шт.

40

A34294

COVER ASSY. - cylinder head, turbo charger venting 1st used eng s/n 2136869 use w/A24934 only

1шт.

41

A27972

CYLINDER HEAD GASKET

- cylinder head cover, turbo charger venting 1st used eng s/n 2136869 use w/A24934 only

1шт.

42

A23685

GASKET

- breather tube, turbo charger venting 1st used eng s/n 2136869 use w/A24934 only

3шт.

A40884

X

INSTALLATION KIT - (used for Prior Engine S/N 2136869)(Incl. Refs. 32 - 42), turbo charger venting 1st used eng s/n 2136869 use w/A24934 only

1шт.
