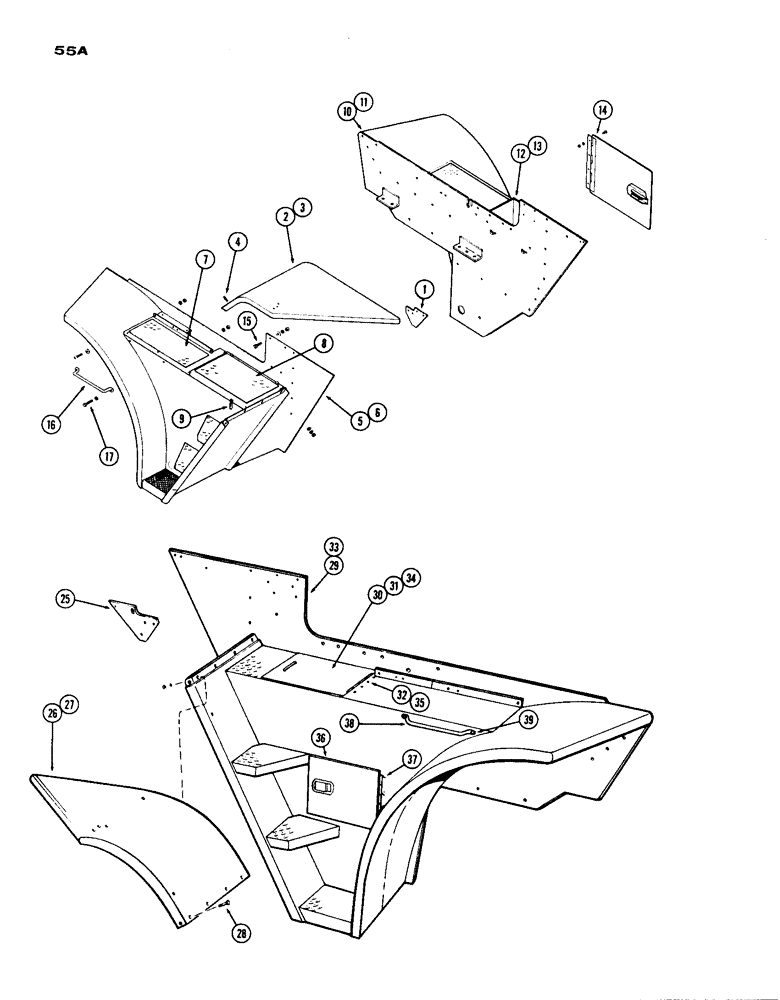

Запчасти Case IH 1200 (055A) - FENDERS, FIRST USED TRACTOR SERIAL NUMBER 9801866 (09) - CHASSIS

1

L10121

BRACKET - hood and fender, L.H. & R.H.

2шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex.

10шт.

2

A56492

FENDER - front R.H., top

1шт.

3

A56493

FENDER - front L.H. top

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

4

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

4

75-510

HANDBOOK

SCREW - 5/16" x 5/8" N.C., rd. hd.

10шт.

5

L10591

SIDE & FENDER ASSY. - tractor, R.H (Unit S/N 9801866 and after), Includes: Ref. 7 - 9

1шт.

6

L10298

SIDE & FENDER ASSY. - tractor, R.H. (Unit S/N 9800691 to Unit S/N 9801866), Includes: Ref. 7 - 9

1шт.

7

L30177

COVER - rear top

1шт.

73-58

SCREW - mach. 6/16" x 1/2" N.C. flat hd.

6шт.

8

L30178

COVER - oil tank compartment

1шт.

9

L10473

LATCH

FASTENER - toggle

1шт.

175-299

SCREW - mach., #10 x 5/8" N.F., Truss hd.

2шт.

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, , SAE Ext Tooth, #10

2шт.

205-72

HOLE PLUG BUTTON,3"

PLUG - button, hole diameter 3"

1шт.

10

L10592

SIDE & FENDER ASSY. - tractor, L.H. (Unit S/N 9801899 amd after), Includes: Ref. 12 - 14

1шт.

11

L10297

SIDE & FENDER ASSY. - tractor, L.H. (Unit S/N 9800691 to S/N 9801866), Includes: Ref. 12 - 14

1шт.

12

L30179

COVER - top, battery compartment

1шт.

13

L10473

LATCH

FASTENER - toggle

1шт.

175-299

SCREW - mach., #10 x 5/8" N.F., truss hd.

2шт.

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, , SAE Ext Tooth, #10

2шт.

14

L30176

DOOR ASSY. - tool compartment

1шт.

77-412

SCREW

- mach., 1/4" x 3/4" N.C., Truss hd.

4шт.

205-72

HOLE PLUG BUTTON,3"

PLUG - button, hole diameter 3"

1шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(w/ref. 5 & 10) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

7шт.

15

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

(w/ref. 5 & 10) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

15

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(w/ref. 5 & 10) Hex, 1/2"-13 x 1 3/4", G5

9шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Use w/L10592) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

15

173-252

SCREW,Sl Rnd Hd, 5/16" - 18 x 5/8"

- mach., 5/16" x 5/8" N.C. rd. hd. (Use with L10297 & L10298)

10шт.

16

A56109

HANDLE - tractor mounting

4шт.

17

175-411

SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- mach., 5/16" x 1" N.C. rd. hd.

8шт.

25

L10121

BRACKET - hood and fender (L.H. & R.H.), used prior to tractor s/n 9801866

2шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- hex., 3/8" x 1" N.F., used prior to tractor s/n 9801866

10шт.

26

A56492

FENDER - front R.H. top, used prior to tractor s/n 9801866

1шт.

27

A56493

FENDER - front L.H. top, used prior to tractor s/n 9801866

1шт.

28

75-510

HANDBOOK

SCREW - mach., 5/16 x 5/8" N.C. rd. hd., used prior to tractor s/n 9801866

10шт.

28

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used prior to tractor S/N 9801866 Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used prior to tractor S/N 9801866 Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

29

A56480NS

SIDE & FENDER ASSY. - tractor, R.H. (Order L10298), used prior to tractor s/n 9801866, Includes: Ref. 30 - 32

1шт.

30

A55236

PLATE ASSY. - oil tank compartment, used prior to tractor s/n 9801866

1шт.

73-516

SCREW,Slotted Flat Hd, 5/16"-18 x 1"

- 5/16" x 1" N.C., flat hd., used prior to tractor s/n 9801866, Includes: Ref. 31 and 32

6шт.

31

A55241

DOOR - oil compartment, used prior to tractor s/n 9801866

1шт.

32

72-412

SCREW,Slotted Fil Hd, 1/4"-28 x 3/4"

- 1/4" x 3/4" N.C., flat hd., used prior to tractor s/n 9801866

3шт.

33

A56481NS

SIDE & FENDER ASSY. - tractor, L.H. (Order L10287), used prior to s/n 9801866, Includes: Ref. 34 - 37

1шт.

34

A55100

DOOR ASSY. - battery compartment top, used prior to tractor s/n 9801866

1шт.

35

77-412

SCREW

- 1/4" x 3/4" N.C., truss. hd., used prior to tractor s/n 9801866

4шт.

36

A55096

DOOR - battery compartment, side, used prior to tractor s/n 9801866

1шт.

37

77-412

SCREW

- 1/4" x 3/4" N.C., truss hd., used prior to tractor s/n 9801866

4шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

- 3/8" x 1" N.C., hex., used prior to tractor s/n 9801866

16шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used prior to tractor S/N 9801866 Hex, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C., hex., used prior to tractor s/n 9801866

18шт.

38

A56109

HANDLE - tractor mtg., used prior to s/n 9801866

4шт.

39

175-437

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

- 5/16" x 5/8" N.C., truss hd., used prior to tractor s/n 9801866

8шт.
