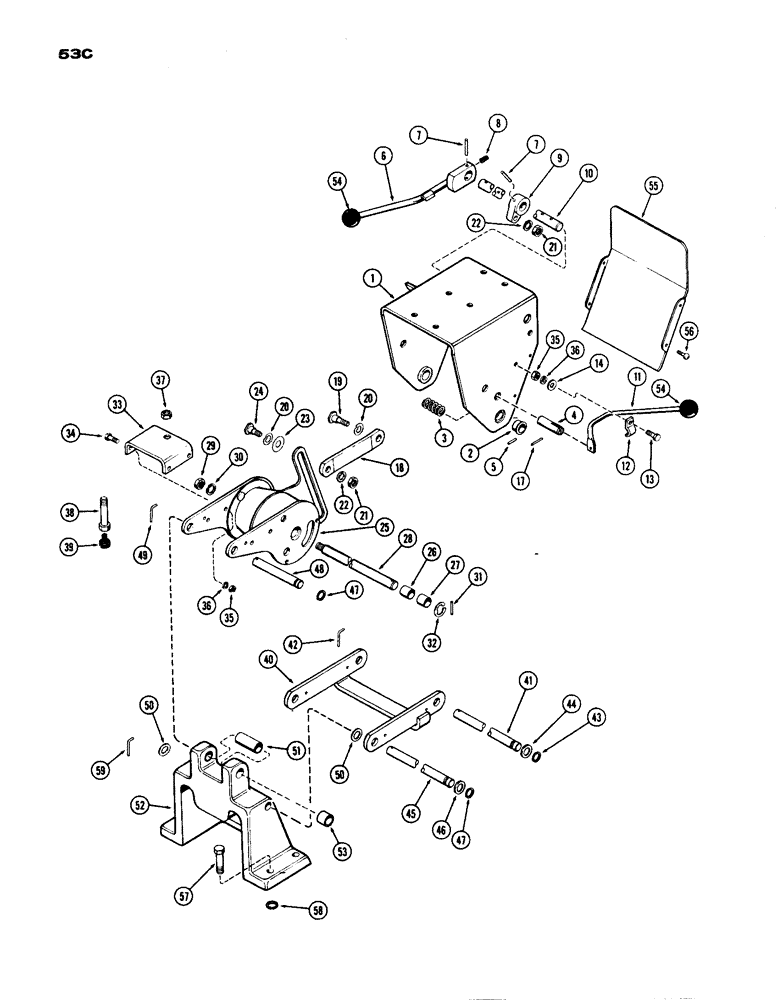

Запчасти Case IH 1200 (053C) - SEAT SUSPENSION (09) - CHASSIS

A34598

X

SUSPENSION ASSY. - operator's seat, Includes: Ref. 1 - 44

1шт.

1

A34502

X

SADDLE ASSY. - seat mounting, Includes: Ref. 2 - 5

1шт.

2

A24503

COIL

BUSHING - parallel link

2шт.

3

A23969

SPRING

- upstop & lock rod

1шт.

4

A23967

ROD

- seat lock lever

1шт.

5

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

6

A32547

LEVER - seat adjusting

1шт.

7

138-202

LOCK PIN,1/2" x 1 3/8", Slotted

PIN - spirol, 3/16 x 1-1/4"

4шт.

8

A9478

SPRING

- hand lever tension

1шт.

9

A23957

LEVER - seat adjusting

1шт.

10

A32549

SHAFT - adjusting lever cross

1шт.

11

A32546

LEVER - seat lock

1шт.

12

A24014

CLIP - lock lever retainer

1шт.

13

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- clip, 1/4 x 3/4" N.F. hex. hd.

1шт.

14

95-4

WASHER,1/4"

- plain, 5/16 x 3/4 x 1/16"

1шт.

17

138-69

LOCK PIN,5/32" x 1/2", Slotted

Pin, 5/32" x 1/2", Slotted

1шт.

18

A23962

LINK - seat adjusting

1шт.

19

A23964

BOLT - shoulder, adj. pivot front

1шт.

20

A23963

WASHER - tension, pivot bolt

2шт.

21

25-116

NUT,Hex, 3/8"-24, G5

- pivot bolt, 3/8" N.F. hex.

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

A30752

WASHER

- rear pivot bolt, 17/32 x 1-1/16 x 1/32"

1шт.

24

A27277

STEP BOLT

BOLT - shoulder, adj. pivot rear

1шт.

25

A34676

DIFFERENTIAL ASSY

ARM ASSY. - torsion spring, Includes: Ref. 26

1шт.

26

A27793

BUSHING

- torsion pin, 5/8 x 3/4 x 3/4"

2шт.

27

A23966

SPACER

- torsion arm centering

2шт.

28

A23965

BOLT

- torsion arm

1шт.

29

25-158

JAM NUT,Jam, 1/2"-20, G5

- torsion bolt, 1/2" x N.F. hex. jam

1шт.

30

92-8

LOCK WASHER,1/2"

1шт.

31

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

32

A27811

CIRCLIP,#X74, .616" Dia, E-Type

Ring, Retaining, , arm spacer #X74, .616" Dia, E-Type

2шт.

33

A23975

BRACE - mounting arm cross

1шт.

34

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

- cross brace, 1/4 x 7/8" N.F. hex

4шт.

35

25-114

NUT,1/4"-28, G5

- clip & brace bolt, 1/4" N.F. hex

5шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

37

25-108

NUT,1/2"-13, G5

- bumper bolt, 1/2" N.C. hex

1шт.

38

A33741

BOLT

- seat bumper

1шт.

39

A34372

BUMPER - seat (Rubber)

1шт.

40

A34512

X

LINK - parallel

1шт.

41

A34515

X

PIN - parallel link

1шт.

42

A34516

PIN

- lock, parallel pin

1шт.

43

A26828

RING

- snap, parallel pin

1шт.

44

A7915

SHIM,.0359" Thk

Washer, Parallel pin .0359" Thk

1шт.

45

A34515

X

PIN - parallel link mounting

1шт.

46

A7915

SHIM,.0359" Thk

Washer, Parallel pin .0359" Thk

1шт.

47

A26828

RING

- snap, pin retaining

3шт.

48

A23976

PIN

- torsion arm pivot

1шт.

49

A27275

PIN - lock, pivot pin

1шт.

50

195-41

WASHER,5/8"

2шт.

51

A24490

SPACER

- seat support

1шт.

52

A32877

SUPPORT ASSY. - seat & suspension, Includes: Ref. 53

1шт.

53

A27793

BUSHING

- support pin

1шт.

54

A23885

KNOB

- hand lever

2шт.

55

A23977

COVER - suspension saddle

1шт.

56

187-1108

SCREW - cover, #8 x 3/8" N.C. pan hd.

4шт.

57

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- support, 1/2 x 1-3/4" N.C. hex. hd.

4шт.

58

92-8

LOCK WASHER,1/2"

4шт.

59

A34516

PIN

- lock, link mounting

1шт.
