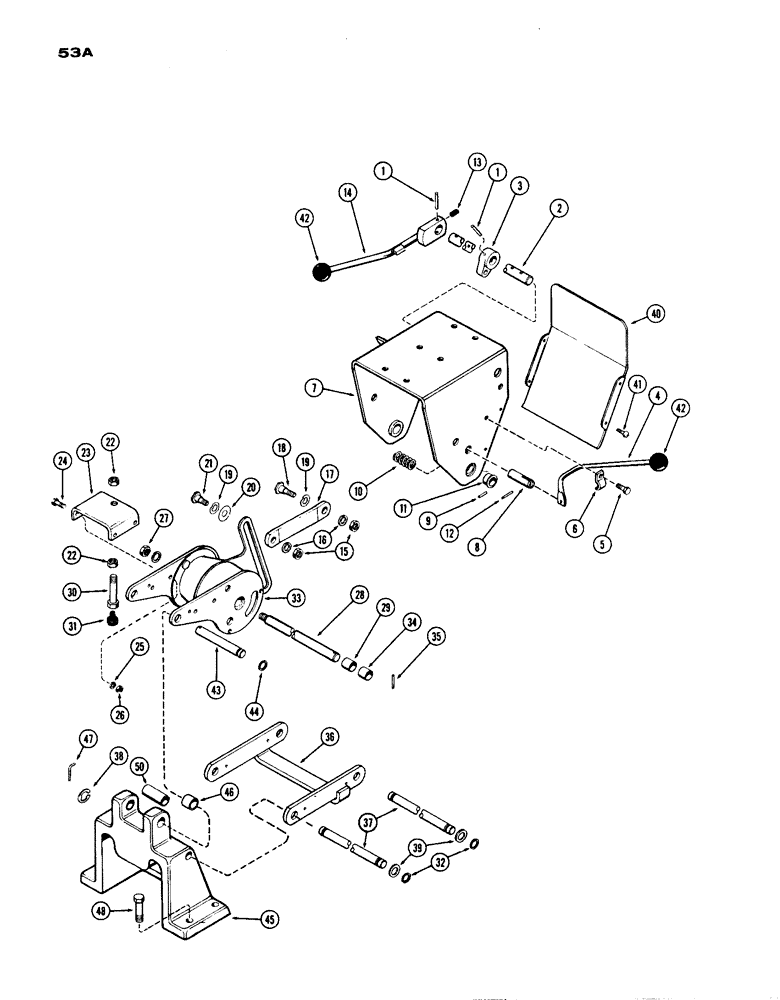

Запчасти Case IH 1200 (053A) - SEAT SUSPENSION (09) - CHASSIS

A33231

SUSPENSION ASSY. - seat (Order A34598, P. 53D), Includes: Ref. 1 - 50

1шт.

1

138-2002

PIN,3/16" x 1 1/4", Coiled

4шт.

2

A32549

SHAFT - adjusting, seat

1шт.

3

A23957

LEVER - adjusting, seat

1шт.

4

A32546

LEVER - seat lock

1шт.

5

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4 x 3/4" N.F., hex;1;6

1шт.

6

A24014

CLIP - lock rod lever

1шт.

7

A32544

SADDLE

ASSY. - seat mtg., w/bushing, Includes: Ref. 8 - 11

1шт.

8

A23967

ROD

- up-stop & lock, seat adj.

1шт.

9

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

10

A23969

SPRING

- up-stop & lock rod

1шт.

11

A13583

BUSHING

- saddle, parallel link

2шт.

12

138-69

LOCK PIN,5/32" x 1/2", Slotted

Pin, 5/32" x 1/2", Slotted

1шт.

13

A23646

SPRING

- tension, seat adj. lever

1шт.

14

A32547

LEVER - adjusting, seat

1шт.

15

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

A23962

LINK - adjusting, seat

1шт.

18

A23964

BOLT - shoulder, seat adj. pivot

1шт.

19

A23963

WASHER - tension, adj. link

2шт.

20

A30752

WASHER

- seat adj. link

1шт.

21

A27277

STEP BOLT

BOLT - shoulder, seat adj. pivot

1шт.

22

25-108

NUT,1/2"-13, G5

- 1/2" N.F. hex

2шт.

23

A23975

BRACE - cross seat mtg. arm

1шт.

24

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

- 1/4 x 7/8" N.F. hex

4шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

26

25-114

NUT,1/4"-28, G5

- brace bolt, 1/4" N.F. hex

4шт.

27

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F. hex

1шт.

28

A23965

BOLT

- torsion spring

1шт.

29

A23966

SPACER

- centering, torsion spring

2шт.

30

A24369

BOLT - bumper

1шт.

31

A24372

BUMPER - seat rubber

1шт.

32

A26828

RING

- snap, pivot pin

2шт.

33

A23947

X

ARM ASSY. - torsion spring, w/bshg., Includes: Ref. 34

1шт.

34

A27793

BUSHING

- torsion spring mtg.

2шт.

35

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

36

A23970

LINK

- parallel, seat mtg.

1шт.

37

A23973

PIN

- parallel link

2шт.

38

A27811

CIRCLIP,#X74, .616" Dia, E-Type

Ring, Retaining, , pin end #X74, .616" Dia, E-Type

2шт.

39

A7915

SHIM,.0359" Thk

Washer, Parallel link pin .0359" Thk

1шт.

40

A23977

COVER - saddle, suspension

1шт.

41

187-1108

SCREW - #8 x 3/8" N.C., pan hd.

4шт.

42

A23885

KNOB

- hand lever, lock rod

2шт.

43

A23976

PIN

- pivot, torsion spring

1шт.

44

A26828

RING

- snap, pivot pin

1шт.

45

A32877

SUPPORT ASSY. - seat suspension, Includes: Ref. 46

1шт.

46

A27793

BUSHING

- support assy.

2шт.

47

A27275

PIN - lock, pivot pin

1шт.

48

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- seat support, 1/2 x 1-3/4" N.C. hex

4шт.

49

92-8

LOCK WASHER,1/2"

4шт.

50

A24490

SPACER

- bushing, seat support

2шт.
