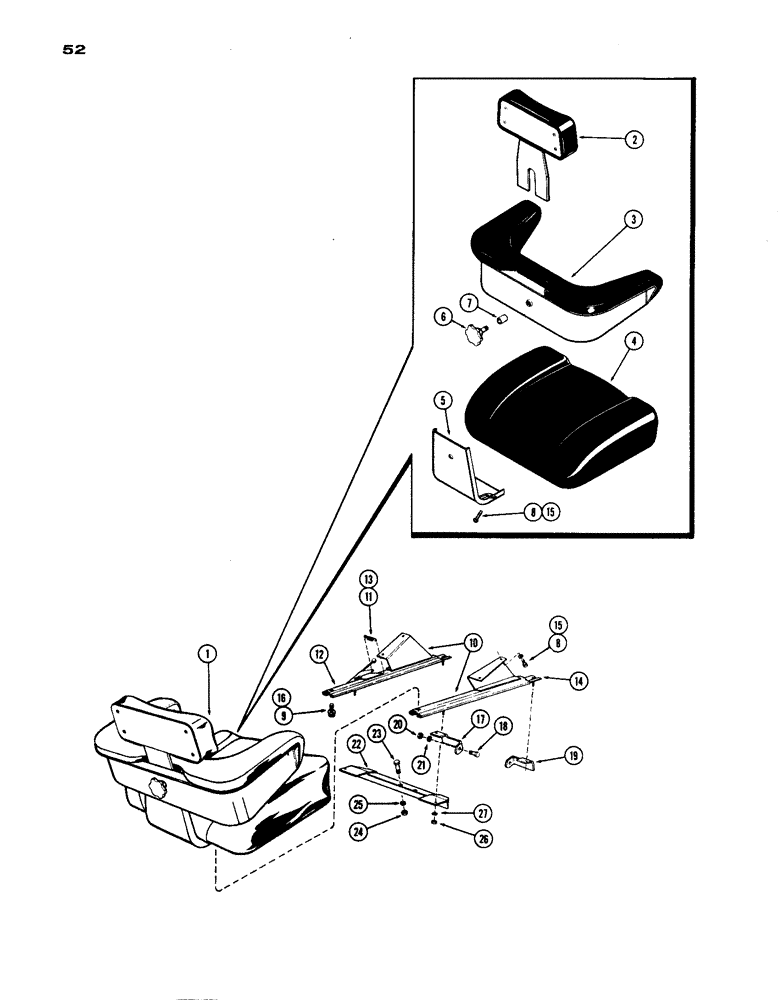

Запчасти Case IH 1200 (052) - OPERATORS SEAT (09) - CHASSIS

1

A32872

SEAT ASSEMBLY - operators, Includes: Ref. 2 - 16

1шт.

2

A34283

CUSHION

ASSY. - upper backrest

1шт.

3

A33318

CUSHION

ASSY. - arm & lower backrest

1шт.

4

A33317

CUSHION

ASSY. - operators seat

1шт.

5

A57405

SUPPORT

BRACKET - seat supporting

1шт.

6

A40972

KNOB

SCREW - adjusting, upper backrest

1шт.

7

A40600

SPACER

- adjusting screw

1шт.

8

173-255

SCREW - 5/16 x 5/8" N.C. rd. hd. Ph. (Use w/ref. 10)

8шт.

9

169-135

SCREW,Phil Hd, 5/16" x 3/4"

- 5/16" x 3/4" N.C. fill. hd. Ph. (Use w/ref. 10)

2шт.

10

A25260

BRACKET

- seat mtg. & adj. L.H. & R.H. (Set of 2) (exhaust stock, then order Ref. 12 and 14), Includes: Ref. 11

1шт.

11

A25261

SPRING - tension, adj. lever (L.H. brckt.)

1шт.

12

A40942

BRACKET

ASSY. - seat L.H., Includes: Ref. 13

1шт.

13

A25261

SPRING - adjusting lever

1шт.

14

A40943

KIT

BRACKET - seal R.H.

1шт.

15

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

(Use w/ref. 12 and 14) Hex, 5/16"-18 x 5/8", G5, Full Thd

8шт.

16

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

SCREW - 5/16 x 5/8" N.C. Ferry hd. (Use w/Ref. 12 and 14)

2шт.

17

A34229

BRACKET - seat support, front L.H.

1шт.

18

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

19

A34228

BRACKET - seat support, front R.H.

1шт.

20

25-106

NUT,3/8"-16, G5

- bracket bolt, 3/8" N.C. hex.

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

A32873

BRACKET - seat support, rear

1шт.

23

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

24

25-108

NUT,1/2"-13, G5

- bracket bolt, 1/2" N.C. hex.

2шт.

25

92-8

LOCK WASHER,1/2"

2шт.

26

129-122

NUT,5/16"-24, G5

Bracket stud 5/16"-24, G5

4шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.
