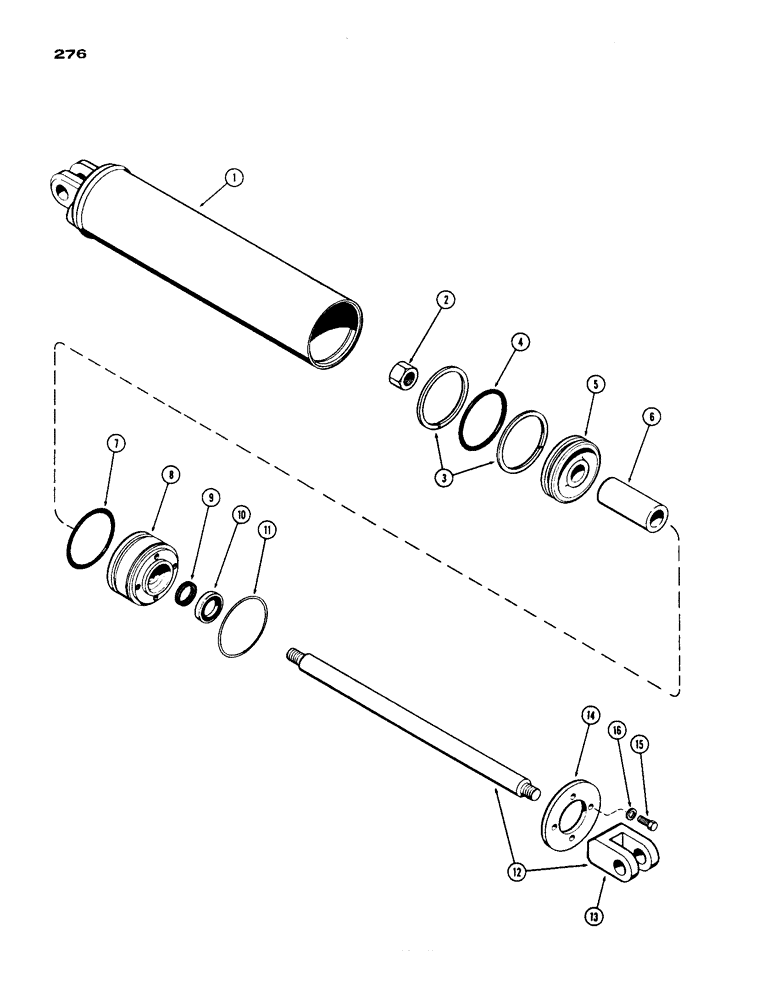

Запчасти Case IH 1200 (276) - HITCH CYLINDER (08) - HYDRAULICS

A56414

CYLINDER ASSY. - 3 point hitch, L.H. & R.H., Includes: Ref. 1 - 16

2шт.

1

A56415

HEAD & BODY - cyl.

1шт.

2

131-369

LOCK NUT,7/8"-14, GA

NUT - lock, 7/8" N.F., hex.

1шт.

3

A23535

OIL SEAL

RING - back-up, piston

2шт.

4

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

"O" RING - piston

1шт.

5

A23534

PISTON - cylinder

1шт.

6

A56417

SPACER - piston

1шт.

7

A23536

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

"O" RING - cylinder head

1шт.

8

A11248

HEAD

- cylinder

1шт.

9

A11251

SEALING RING

RING - quad, head

1шт.

10

A23537

OIL SEAL,28.57mm ID x 46.582mm OD x 6.35mm Thk

SEAL - oil, piston rod

1шт.

11

A30896

RING

- snap, cyl. head retaining

1шт.

12

A56418

ROD ASSY. - piston, Includes: Ref. 13

1шт.

13

NSS

NOT SOLD SEPARAT

YOKE - piston rod (Order A56418)

1шт.

14

A11249

PLATE - cylinder head end

1шт.

15

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Plate mounting Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

16

92-5

LOCK WASHER,5/16"

4шт.
