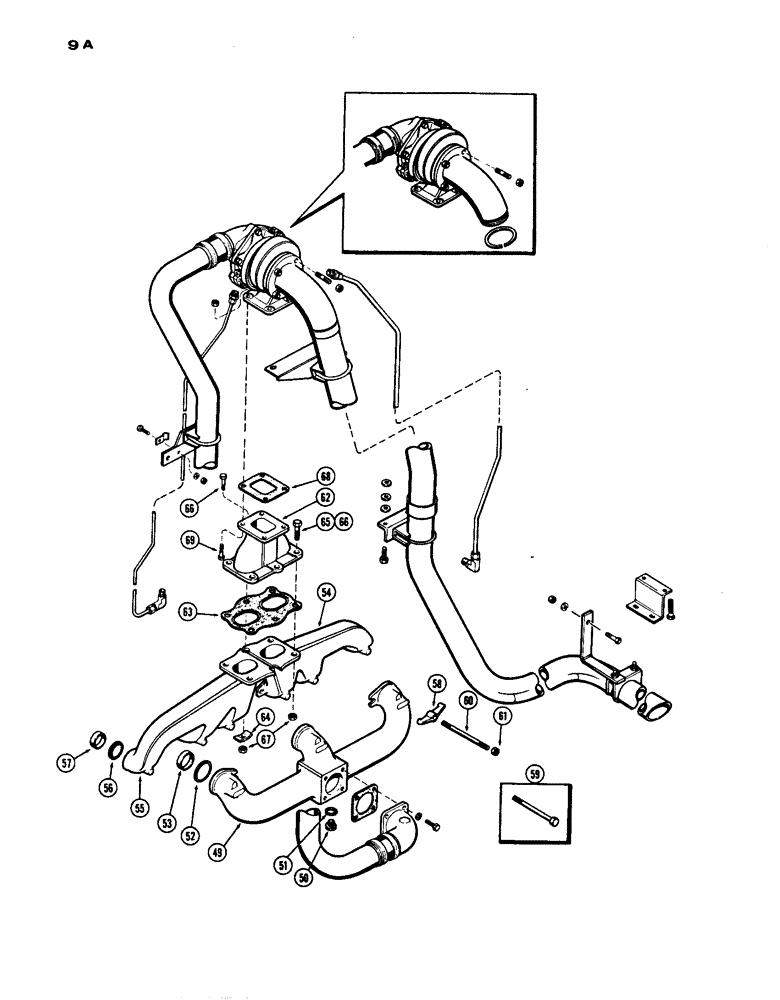

Запчасти Case IH 1200 (009A) - TURBO CHARGER SYSTEM, CONTINUED, (451) DIESEL ENGINE, INTAKE AND EXHAUST MANIFOLD (02) - ENGINE

49

A20913

MANIFOLD - intake

1шт.

50

A20917

PLUG

- intake manifold

1шт.

51

A20916

MANIFOLD GASKET

GASKET - intake manifold plug

1шт.

52

A21054

MANIFOLD GASKET

- intake manifold

3шт.

53

A21053

BUSHING,55.5mm ID x 57.15mm OD x 12.7mm L

FERRULE - intake manifold

3шт.

54

A24979

MANIFOLD

- exhaust, rear

1шт.

55

A24980

MANIFOLD

- exhaust, front

1шт.

56

A11888

MANIFOLD GASKET

- exhaust manifold

6шт.

57

A21056

CAP

FERRULE - exhaust manifold

6шт.

58

A24368

CLAMP

- intake and exhaust manifold

6шт.

59

13-792

BOLT

- hex. hd., 7/16 x 5-3/4" N.C. (1st used Late Model)

6шт.

60

A27911

STUD

- int. & exh. manifold (Early Model) (Use Ref. 59)

6шт.

61

25-117

NUT,7/16"-20, G5

- 7/16" N.C. hex.

6шт.

62

A24959

STACK - exhaust, turbo mtg.

1шт.

63

A24966

GASKET

- exh., Serial Range: stack-manifold

1шт.

64

A57382

CLAMP

- exhaust manifold and stack

2шт.

65

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

66

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C. hex.

4шт.

67

131-906

NUT

- see-proof, 1/2" N.C. hex.

6шт.

68

A24968

GASKET

- turbo to exh. stack

1шт.

69

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.
