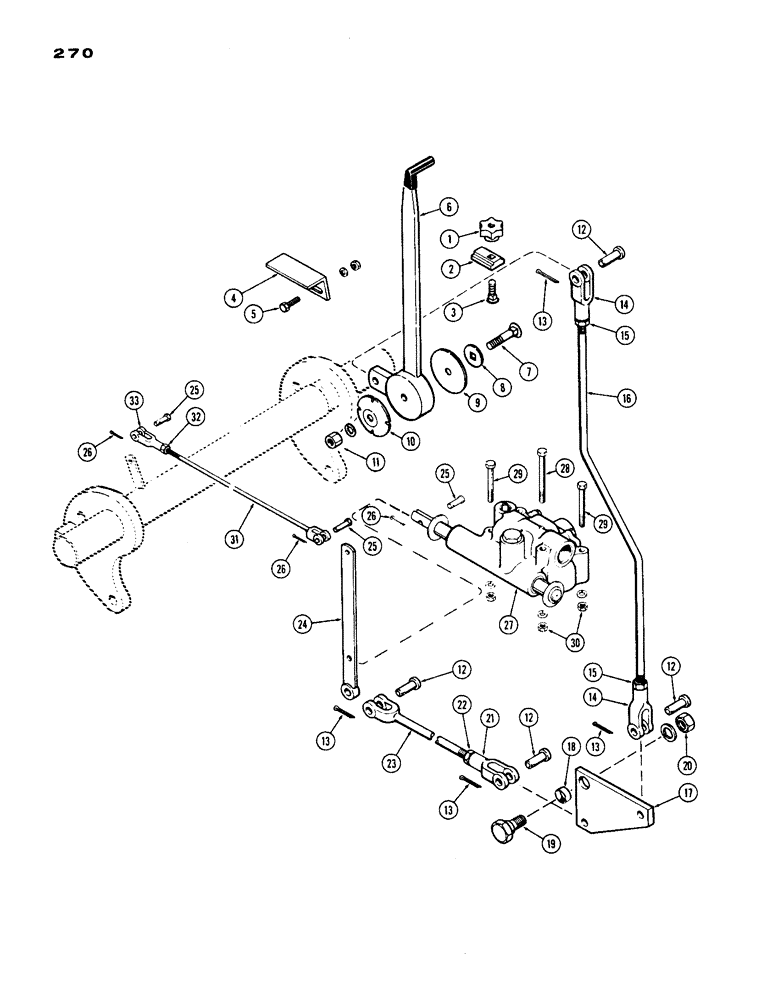

Запчасти Case IH 1200 (270) - THREE POINT HITCH CONTROL LEVER LINKAGE (08) - HYDRAULICS

1

A56333

KNOB - adj. 3-point hitch control arm

2шт.

2

A56332

STOP - hitch arm control

2шт.

3

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

4

A56334

STOP - hitch control lever

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Stop Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

6

A56320

LEVER - hitch arm control

1шт.

7

11-840

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

- carriage, 1/2 x 2-1/2" N.C. sq. neck

1шт.

9

195-45

WASHER,3/4"

1шт.

9

G10786

DISC

- friction, hitch control lever

1шт.

10

G49412

WASHER

- spring, hitch lever

1шт.

11

131-10

NUT,1/2"-13, GB

NUT, LOCK, (Esna) 1/2"-13, GB

1шт.

12

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2" std.

4шт.

13

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

14

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - adj. end, 1/2"

2шт.

15

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F., hex.

2шт.

16

A56325

ROD - hitch arm linkage

1шт.

17

A56326

BELLCRANK - hitch arm linkage

1шт.

18

A30770

BUSHING - bellcrank

1шт.

19

A31098

BOLT - shoulder, bellcrank

1шт.

20

25-1010

NUT,5/8"-11, G5

1шт.

21

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - adj. end, 1/2"

1шт.

22

25-158

JAM NUT,Jam, 1/2"-20, G5

- jam, 1/2" N.F., hex.

1шт.

23

L10016

ROD - hitch control

1шт.

24

A56327

LEVER - hitch control valve

1шт.

25

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

3шт.

26

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

27

L10043

VALVE

ASSY. - depth & position (Repairs, F. 275)

1шт.

28

13-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- valve mtg., 5/16 x 4" N.C., hex.

1шт.

29

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- valve mtg., 5/16 x 3-1/4" N.C., hex.

2шт.

30

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C., hex.

3шт.

31

A56330

ROD - hitch arm

1шт.

32

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

33

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - rod end, 5/16"

1шт.
