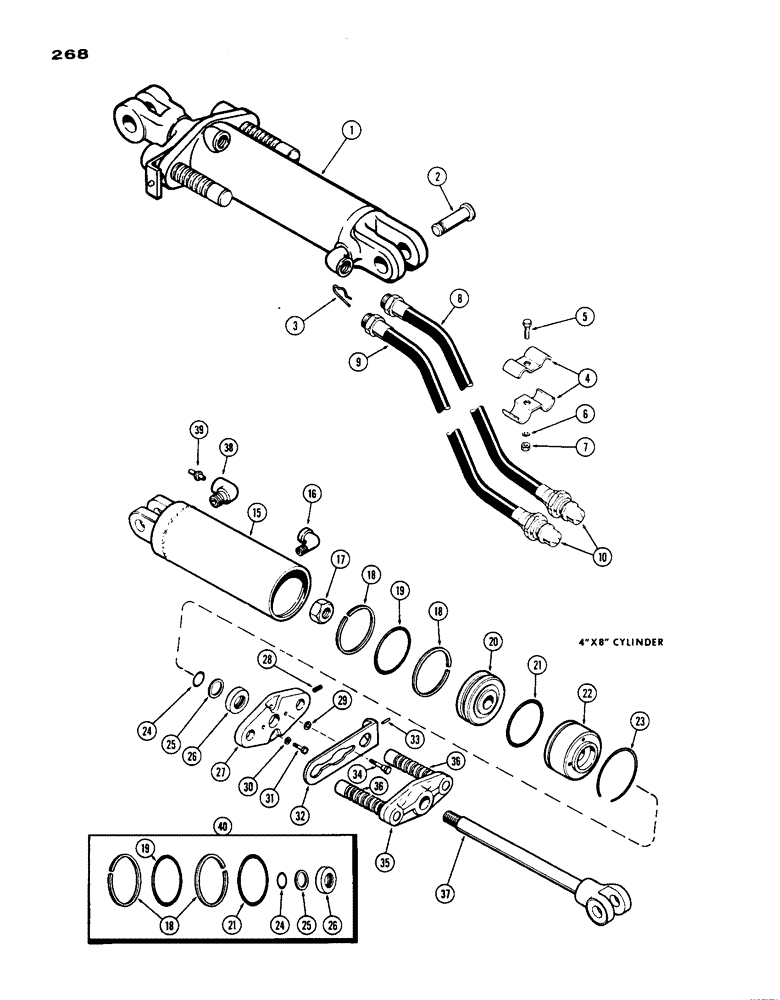

Запчасти Case IH 1200 (268) - PORTABLE HYDRAULIC CYLINDER ATTACHMENT (08) - HYDRAULICS

A23545M

ATTACHMENT - portable hydraulic cylinder, Includes: Ref. 1 - 10

1шт.

1

A23546

CYLINDER

ASSY. - portable (4 x 8")

1шт.

2

A27347

PIN

- cylinder mounting

2шт.

3

A29054

HAIR PIN COTTER

- hair cotter, mounting pin

2шт.

4

A27440

CLAMP

- tie, hose

2шт.

5

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Clamp Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

6

92-5

LOCK WASHER,5/16"

1шт.

7

25-115

NUT,5/16"-24, G5

- 5/16" NF, hex

1шт.

8

A20817

HOSE

- hydraulic, rear port (118")

1шт.

8

A20816

HOSE

- hydraulic, front port (106")

1шт.

10

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - male, hyd. (Repair, F. 261)

2шт.

A23546

CYLINDER

ASSY. - hydraulic portable (4 x 8"), 4" x 8" remote w/ mechanical limit stop, Includes: Ref. 15 - 40

1шт.

15

A31166

BODY ASSY. - cylinder and cap, 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

1шт.

16

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- 90deg. x 1/2" P.T. (Only 1 used, use 1 of ref. 37), 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

2шт.

17

131-369

LOCK NUT,7/8"-14, GA

NUT - 7/8" N.F., hex. self-locking, 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

1шт.

18

A23535

OIL SEAL

RING - back-up, piston seal, 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

2шт.

19

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

"O" RING - piston, 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

1шт.

20

A23534

PISTON - 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

1шт.

21

A23536

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

"O" RING - inner cyl. head, 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

1шт.

22

A23554

HEAD - inner, 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

1шт.

23

A30896

RING

- snap, cylinder collar, 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

1шт.

24

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - inner, cyl. inner head, 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

1шт.

25

A23553

RING

- back-up, pisotn rod guide, 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

1шт.

26

A23537

OIL SEAL,28.57mm ID x 46.582mm OD x 6.35mm Thk

SEAL - oil, piston rod, 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

1шт.

27

A27345

GUIDE - limit stop pin, 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

1шт.

28

A27421

SPRING

- limit stop latch, 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

1шт.

29

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , 4" x 8" remote hydraulic cylinder w/ mechanical limit stop Int Tooth, 5/16"

2шт.

30

92-5

LOCK WASHER,5/16"

4" x 8" remote hydraulic cylinder w/ mechanical limit stop 5/16"

2шт.

31

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- guide, 5/16 x 1-1/4" N.C. hex. hd., 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

2шт.

32

A31156

LATCH

ASSY. - limit stop, 4" x 8" remote hydraulic cylinder w/ mechanical limit stop, Includes: Ref. 33

1шт.

33

138-128

LOCK PIN,1/4" x 5/8", Slotted

PIN, , 4" x 8" remote hydraulic cylinder w/ mechanical limit stop 1/4" x 5/8", Slotted

1шт.

34

A31157

SCREW,5/16" - 18 x 1 3/4"

- limit stop latch, 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

2шт.

35

A31154

STOP ASSY. - limit, w/pins, 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

1шт.

36

A31155

PIN - stop limit ram, 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

2шт.

37

A30972

ROD ASSY. - piston, 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

1шт.

38

A57367

VALVE

REGULATOR ASSY. - hydraulic flow, 4" x 8" remote hydraulic cylinder w/ mechanical limit stop, Includes: Ref. 39

1шт.

39

A57369

SPOOL

POPPET - flow check, 4" x 8" remote hydraulic cylinder w/ mechanical limit stop

1шт.

40

A40759

SEAL,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

KIT - cylinder repair, 4" x 8" remote hydraulic w/ mechanical limit stop

1шт.
