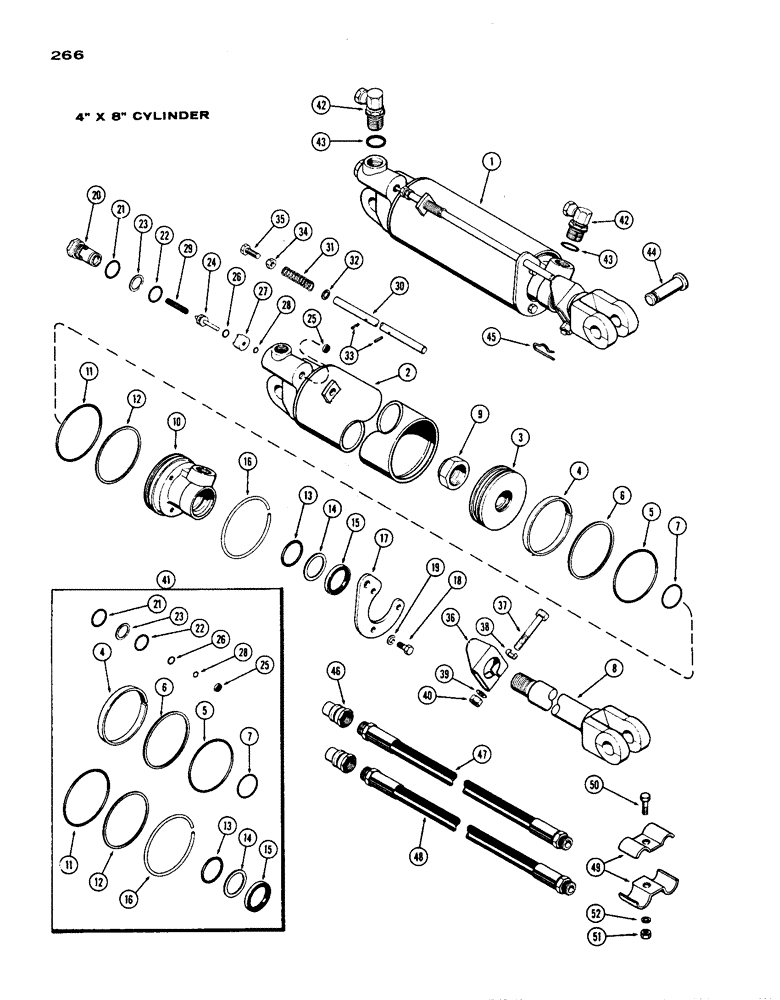

Запчасти Case IH 1200 (266) - 4 INCH X 8 INCH REMOTE HYDRAULIC CYLINDER, WITH HYDRAULIC LIMIT STOP (08) - HYDRAULICS

1

A34923

CYLIDER ASSY. - hydraulic (4 x 8" cylinder), Includes: Ref. 2 - 40

1шт.

2

A41354

BODY - hydraulic cylinder

1шт.

3

A41357

PISTON - cylinder

1шт.

4

A41169

SEAL

RING - piston outer (Teflon) (see Ref. 41)

1шт.

5

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

"O" RING - outer (5-5/8 x 3-7/8 x 1/8") (See Ref. 41)

1шт.

6

A41174

RING

- wear, piston (See Ref. 41)

1шт.

7

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

"O" RING - inner (1-1/2 x 1-3/4 x 1/8") (See Ref. 41)

1шт.

8

A41151

ROD - piston

1шт.

9

A41168

LOCK NUT

NUT - piston retaining (1-1/8" - 12 lock)

1шт.

10

A41148

BEARING

- cylinder rod

1шт.

11

A27348

O-RING,3.734" ID x 4.012" OD x 0.139"

"O" RING - brg. outer (3-3/4 x 4 x 1/8") (See Ref. 41)

1шт.

12

A41165

RING,126.42mm ID x 132.52mm OD x 1.4mm Thk

- back-up (See Ref. 41)

1шт.

13

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

"O" RING - inner (1-1/2 x 1-7/8 x 3/16") (See Ref. 41)

1шт.

14

T31032

RING - back-up (See Ref. 41)

1шт.

15

A41173

SEAL

- oil, bearing (See Ref. 41)

1шт.

16

A41171

RING, LOCKING

RING - lock, bearing (See Ref. 41)

1шт.

17

A41158

PLATE - cylinder end

1шт.

18

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

End plate Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

19

92-5

LOCK WASHER,5/16"

2шт.

20

A41351

PLUG - cylinder end & plunger body

1шт.

21

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

"O" RING - plug 97/8 x 1-1/16 x 3/32") (See Ref. 41)

1шт.

22

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - (11/16 x 7/8 x 3/32") (See Ref. 41)

1шт.

23

A41346

RING

- back-up (See Ref. 41) op

1шт.

24

A41430

PLUNGER

ASSY. - valve

1шт.

25

A41175

WIPER

- plunger (3/16 x 1/2 x 1/8") (See Ref. 41)

1шт.

26

A41147

X

"O" RING - plunger (3/16 x 3/8 x 3/32") (See Ref. 41)

1шт.

27

A41429

SPACER

- valve

1шт.

26

A41160

INSERT

"O" RING - valve (23/64 x 9/16 x 3/32") (See Ref. 41)

1шт.

29

A41163

SPRING

- valve poppet

1шт.

30

A41153

ROD

- cylinder push

1шт.

31

A41154

SPRING

- push rod

1шт.

32

A41155

WASHER

- push rod spring seat

1шт.

33

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, 5/32" x 5/8", Slotted

2шт.

34

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - push rod (5/16" - 18 hex. lock)

1шт.

35

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Rod adj. Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

36

A41149

CLAMP

STOP - cylinder limit clamp

1шт.

37

114-115

BOLT,Hex, 5/16" - 24 x 2-3/4", Gr 5

- stop clamp, 3/8 x 2-3/4" N.F. hex. hd.

1шт.

38

A41352

LOCK WASHER

LOCK - stop clamp bolt

1шт.

39

A41353

WASHER

- clamp bolt (1/2 x 7/8 x 1/16")

1шт.

40

A41167

LOCK NUT

NUT - clamp bolt (3/8" - 24 hex. lock)

1шт.

41

A41350

SEAL

KIT- cylinder repair

1шт.

42

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSY. - adapter, 90 deg. - 1/2" P.T. x 7/8" 14 SAE, Includes: Ref. 43

2шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - elbow, 3/4 x 15/16

1шт.

44

A27347

PIN

- cylinder mounting

2шт.

45

A29054

HAIR PIN COTTER

- hair cotter, mounting pin

2шт.

46

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - hyd. male break-away (Repairs, F. 157)

2шт.

47

A20816

HOSE

- hydraulic, front port (106")

1шт.

48

A20817

HOSE

- hydraulic, rear port (118")

1шт.

49

A27440

CLAMP

- hose retaining

2шт.

50

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Clamp Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

51

25-115

NUT,5/16"-24, G5

- 5/16" NF, hex

1шт.

52

92-5

LOCK WASHER,5/16"

1шт.
