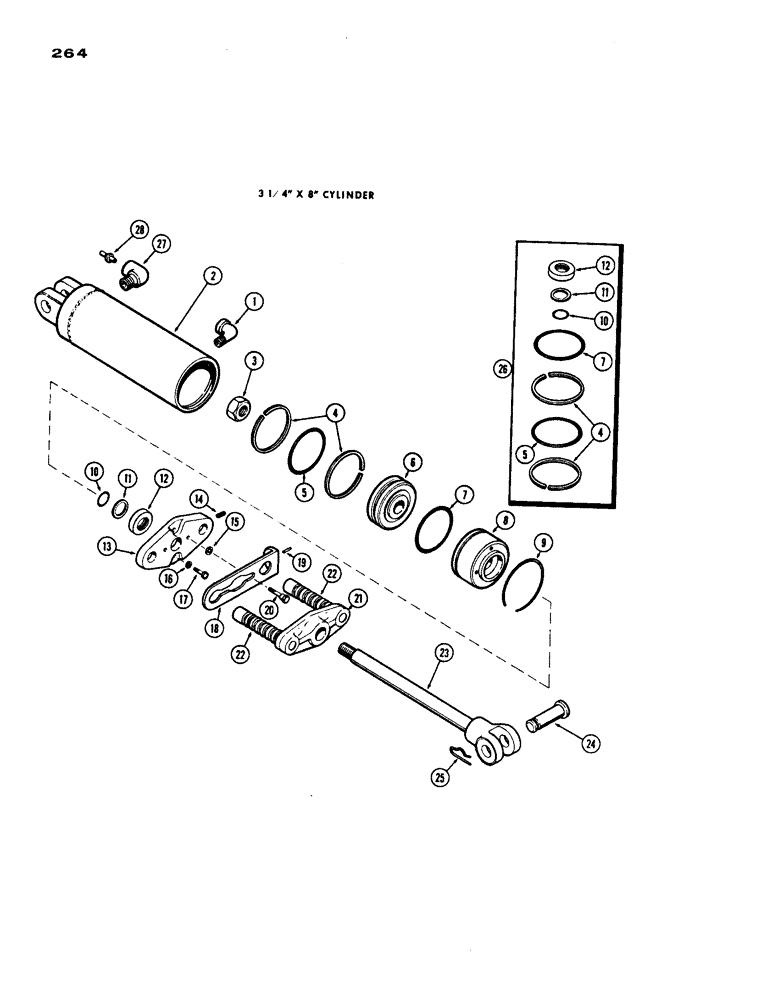

Запчасти Case IH 1200 (264) - 3 1/4 INCH X 8 INCH REMOTE HYDRAULIC CYLINDER, WITH MECHANICAL LIMIT STOP (08) - HYDRAULICS

A23557

CYLINDER ASSY. - portable hyd. (3-1/4 x 8"), Includes: Ref. 1 - 23

1шт.

1

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- 1/2" x 90 deg. P.T.

2шт.

2

A31162

HEAD & BODY - cylinder

1шт.

3

131-369

LOCK NUT,7/8"-14, GA

NUT - 7/8" N.F., hex., self-locking

1шт.

4

A23562

OIL SEAL

RING - back-up, "O" Ring

2шт.

5

A30893

O-RING,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

"O" RING - piston

1шт.

6

A23560

PISTON - cylinder rod

1шт.

7

A23555

O-RING,2.984" ID x 3.262" OD x 0.139"

"O" RING - inner cylinder head

1шт.

8

A23561

HEAD - inner, cylinder

1шт.

9

A31158

RING, SNAP

RING - snap, inner cyl. hd.

1шт.

10

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - piston rod

1шт.

11

A23553

RING

- back-up, piston rod "O" Ring

1шт.

12

A23537

OIL SEAL,28.57mm ID x 46.582mm OD x 6.35mm Thk

SEAL - oil, piston rod

1шт.

13

A27345

GUIDE - limit stop pin

1шт.

14

A27421

SPRING

- limit stop latch

1шт.

15

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- guide, 5/16 x 1-1/4" N.C. hex. hd.

2шт.

18

A31156

LATCH

ASSY. - limit stop, Includes: Ref. 19

1шт.

19

138-128

LOCK PIN,1/4" x 5/8", Slotted

PIN, 1/4" x 5/8", Slotted

1шт.

20

A31157

SCREW,5/16" - 18 x 1 3/4"

- stop latch

2шт.

21

A31154

STOP & PIN ASSY. - limit, Includes: Ref. 22

1шт.

22

A31155

PIN - stop limit ram

2шт.

23

A30972

ROD ASSY. - piston

1шт.

24

A27347

PIN

- cylinder yoke

2шт.

25

A29054

HAIR PIN COTTER

COTTER - hair pin, cylinder mounting

2шт.

26

A40758

SEAL,0.21" Thk x 2.85" ID, -336, Cl 5, 75 Duro

KIT - cylinder repair

1шт.

27

A57367

VALVE

REGULATOR ASSY. - hydraulic flow, Includes: Ref. 28

1шт.

28

A57369

SPOOL

POPPET - flow check

1шт.
