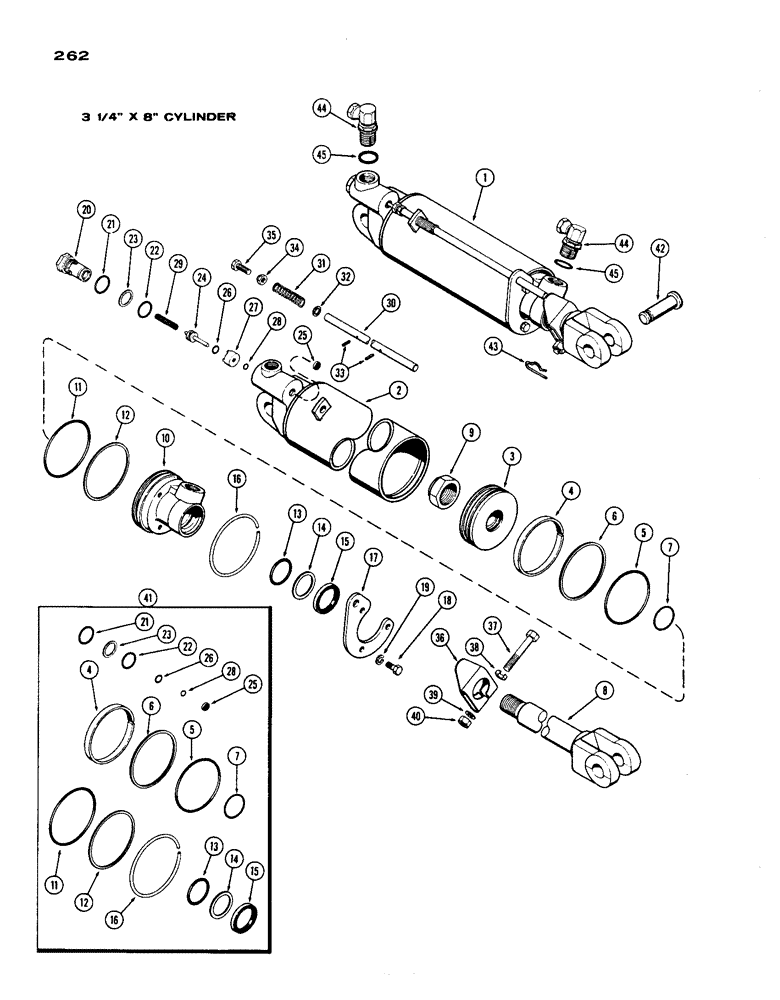

Запчасти Case IH 1200 (262) - 3 1/4 INCH X 8 INCH REMOTE HYDRAULIC CYLINDER, WITH HYDRAULIC LIMIT STOP (08) - HYDRAULICS

1

A34922

CYLINDER

ASSY. - hydraulic (3-1/4 x 8"), Includes: Ref. 2 - 40

1шт.

2

A41348

BODY - hydraulic cylinder

1шт.

3

A41177

PISTON - cylinder

1шт.

4

A41191

RING

- outer piston (Teflon) (See Ref. 41)

1шт.

5

A41185

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

"O" RING - outer (2-7/8 x 3-1/8 x 1/8") (See Ref. 41)

1шт.

6

A41183

RING - piston wear (See Ref. 41)

1шт.

7

A41184

O-RING,1.234" ID x 1.512" OD x 0.139"

"O" RING - inner (1-1/4 x 1-1/2 x 1/8") (See Ref. 41)

1шт.

8

A41179

ROD - cylinder piston

1шт.

9

A41189

LOCK NUT

NUT - piston retaining (1" - 14 lock)

1шт.

10

A41180

BEARING

- cylinder rod

1шт.

11

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - bearing outer (3 x 3-1/4 x 1/8") (See Ref. 41)

1шт.

12

A41188

RING

- back-up (See Ref. 41)

1шт.

13

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - brg. inner (1-1/4 x 1-1/2 x 1/8") (See Ref. 41)

1шт.

14

T22277

OIL SEAL

RING - back-up (See Ref. 41)

1шт.

15

A41176

X

SEAL - oil, bearing (See Ref. 41)

1шт.

16

A41186

RING, LOCKING

RING - lock, bearing (See Ref. 41)

1шт.

17

A41182

PLATE - cylinder end

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

End plate Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

20

A41351

PLUG - cylinder end & plunger body

1шт.

21

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

"O" RING - plug, (7/8 x 1-1/16 x 3/32") (See Ref. 41)

1шт.

22

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - plug (11/16 x 7/8 x 3/32") (See Ref. 41)

1шт.

23

A41346

RING

- back-up (See Ref. 41)

1шт.

24

A41430

PLUNGER

ASSY. - valve

1шт.

25

A41175

WIPER

- plunger (3/16 x 1/2 x 1/8") (See Ref. 41)

1шт.

26

A41147

X

"O" RING - plunger (3/16 x 3/8 x 3/32") (See Ref. 41)

1шт.

27

A41429

SPACER

- valve

1шт.

28

A41160

INSERT

"O" RING - valve (24/64 x 9/16 x 3/32") (See Ref. 41)

1шт.

29

A41163

SPRING

- valve poppet

1шт.

30

A41153

ROD

- push, cylinder piston

1шт.

31

A41154

SPRING

- push rod

1шт.

32

A41155

WASHER

- push rod spring seat

1шт.

33

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, 5/32" x 5/8", Slotted

2шт.

34

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - push rod, 5/16" N.C. hex. (Gripco lock)

1шт.

35

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Stop adj. Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

36

A41349

STOP

- cylinder limit clamp

1шт.

37

114-219

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 5

- stop clamp, 3/8 x 2-1/2" N.F. hex. hd.

1шт.

38

A41352

LOCK WASHER

LOCK - stop clamp bolt

1шт.

39

A41353

WASHER

- clamp bolt (1/2 x 7/8 x 1/16")

1шт.

40

A41167

LOCK NUT

NUT - clamp bolt (3/8" - 24 lock)

1шт.

41

A41347

SEAL,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

KIT - cylinder repair

1шт.

42

A27347

PIN

- cylinder mounting

2шт.

43

A29054

HAIR PIN COTTER

- hair cotter, mounting pipe

2шт.

44

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSY. - adpt., 90 deg. - 1/2" Female P.T. x 7/8" - 14, Includes: Ref. 45

2шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - elbow, 3/4 x 15/16 x 3/32"

1шт.
