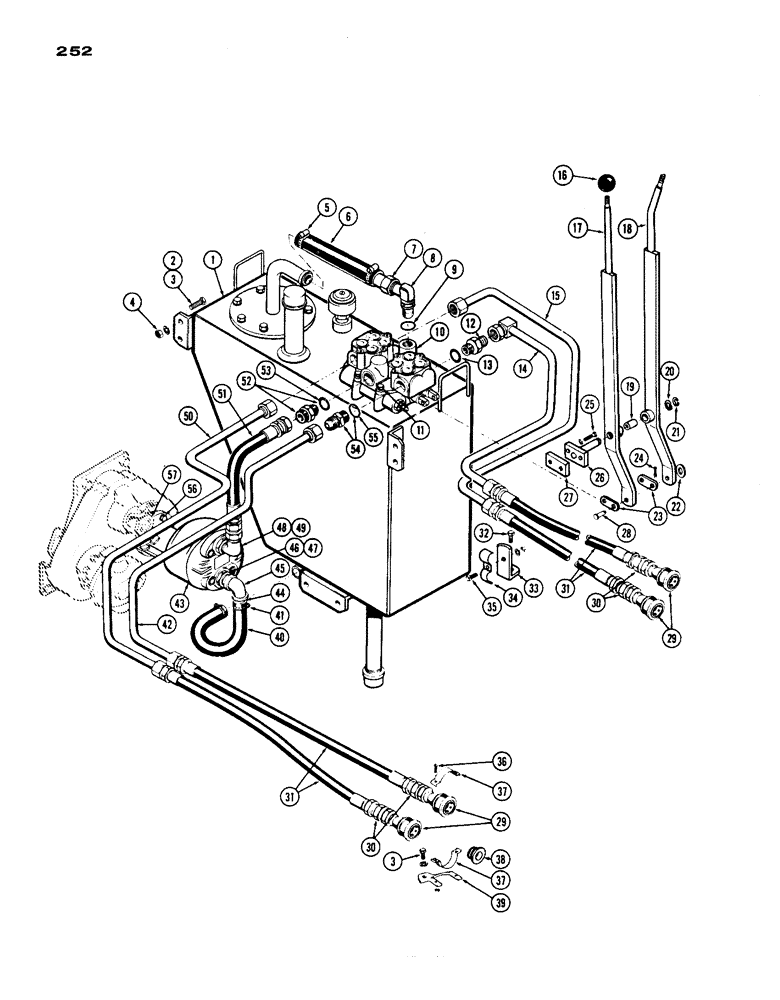

Запчасти Case IH 1200 (252) - REMOTE HYDRAULIC CIRCUIT AND CONTROLS (08) - HYDRAULICS

1

A55272

TANK ASSY. - hydraulic oil, (Repairs, Figure 255)

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Tank mounting Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

3

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Tank mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

4

131-6

LOCK NUT,3/8"-16, GC

NUT - 3/8" N.C. hex. self-locking

4шт.

5

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

2шт.

6

A55679

HOSE -, Serial Range: valve-filter

1шт.

7

A55694

TUBE -, Serial Range: valve-hose

1шт.

8

A55678

X

ELBOW ASSY. - valve to tube, Includes: Ref. 9

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - valve elbow, 59/64 x 1-5/32 x 7/64"

1шт.

10

A56427

VALVE ASSY. - remote hyd. (Repairs, Figure 257)

1шт.

11

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- valve mtg., 3/8 x 3" N.C. hex.

4шт.

12

A55729

ADAPTER

ASSY. - valve outlet, Includes: Ref. 13

1шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - adapter, 59/64 x 1-5/32 x 7/64"

1шт.

14

A55675

TUBE ASSY. - valve to break - away hose, R.H. rear

1шт.

15

A55674

TUBE ASSY. - valve to break - away hose, R.H. frt.

1шт.

16

A18852

KNOB

- control lever

2шт.

17

A55685

LEVER ASSY. - remote control, w/bsg. L.H., Includes: Ref. 19

1шт.

18

A55684

LEVER ASSY. - remote control, w/bsg. R.H., Includes: Ref. 19

1шт.

19

A12018

BUSHING

- remote control lever

2шт.

20

A55690

WASHER - control lvr. (.020" x 49/64" D. hole)

1шт.

21

A20202

RING

- retaining, control lever

1шт.

22

195-21

WASHER,5/16"

- plain 5/16"

4шт.

23

A55691

LINK - control lever

4шт.

24

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

25

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- plate mtg., 1/2 x 1-3/4" N.C. hex.

2шт.

26

A55681

PLATE ASSY. - pivot, control lever

1шт.

27

A55692

PLATE - lock, control pivot

1шт.

28

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Connecting, valve & lvr. to link 5/16" x .940"

4шт.

29

A28542

COUPLING, QUICK, FEM

COUPLING ASSY. - hyd. female (Repair, Figure 261)

4шт.

30

A55695

ADAPTER - break - away coupling

4шт.

31

A55677

HOSE - hyd. valve tube and coupling

4шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Support Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

33

A55965

SUPPORT - hydraulic tube

2шт.

34

R15257

CLAMP

- hyd., Serial Range: tube-support

2шт.

35

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- clamp, 5/16 x 1-1/2" N.C., hex

2шт.

36

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

- clamp, #8-32 x 5/8" rd. hd., mach.

8шт.

37

A27423

CLAMP

- mtg., break-away coupling

8шт.

38

A22768

PLUG

- dust, break-away coupling

4шт.

39

A27360

BRACKET

- mtg., break-away coupling

4шт.

40

A55680

HOSE - tank to pump inlet

1шт.

41

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

42

A55673

TUBE ASSY. - valve to cplg. hose, L.H. rear

1шт.

43

A55163

PUMP ASSY. - remote hyd. (Repairs, Figure 259)

1шт.

44

A12294

NIPPLE, LUBE

NIPPLE -, Serial Range: elbow-hose

1шт.

42

221-1379

ELBOW

- hyd. pump, 90 deg.-1" P.T.

1шт.

46

A16921

FITTING ASSY. - hyd. pump inlet, Includes: Ref. 47

1шт.

47

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - inlet fitting, 1-11/64 x 1-13/32 x 7/64"

1шт.

48

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, hyd. pump outlet, Incl. Ref. 49 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

49

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - outlet adapter, 59/64 x 1-5/32 x 3/64"

1шт.

50

A55672

TUBE ASSY. - valve to coupling hose, frt. L.H.

1шт.

51

A55676

HOSE - hyd. pump to remove valve

1шт.

52

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER ASSY. - pump hose to valve inlet, Includes: Ref. 53

1шт.

53

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - inlet adapter, 3/4 x 15/16 x 7/64"

1шт.

54

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER ASSY. - hyd. valve outlet, Incl. Ref. 55

3шт.

55

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - outlet adapter, 59/64 x 1-5/32 x 7/64"

1шт.

56

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

SCREW - cap, 3/8 x 1-1/4" N.C., hex. sckt. hd.

6шт.

57

A17619

GASKET

- pump mounting

1шт.
