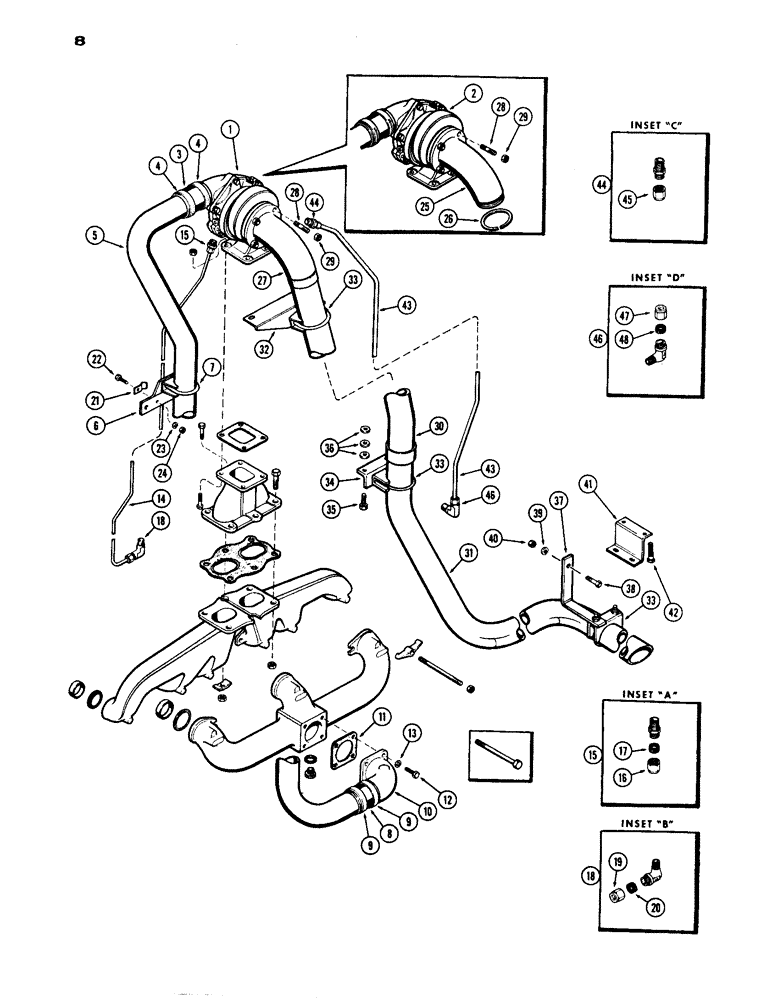

Запчасти Case IH 1200 (008) - TURBO CHARGER SYSTEM, (451) DIESEL ENGINE (02) - ENGINE

1

A29434

STUD

TURBO ASSY. - eng. (Prior Eng. SN 2137004) (Order A34289)(Repairs, Figure 11)

1шт.

2

A34289

TURBOCHARGER

TURBO ASSY. - eng. (Eng. SN. 2137004 and after) (Repairs, Figure 11B)

1шт.

3

A24970

HOSE - turbo to intake tube

1шт.

4

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

5

A24969

TUBE - air intake

1шт.

6

A24986

BRACKET - turbo intake tube

1шт.

7

A13240

CLAMP,2-5/8" ID

ASSY - turbo, Serial Range: tube-brkt.

1шт.

8

A24971

HOSE -, Serial Range: elbow-tube

1шт.

9

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose (2-5/16" to 3-1/4")

2шт.

10

A24967

ELBOW - intake manifold

1шт.

11

A20915

GASKET

- intake manifold

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

A24990

TUBE - filter, Serial Range: base-turbo

1шт.

15

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

CONNECTOR ASSY (See inset A), Includes: Ref. 16 and 17

1шт.

16

87017024

TUBE NUT,1/2"-24

NUT (For 1/4" O.D. tube)

1шт.

17

222-102

SLEEVE,1/4" Tube

1шт.

18

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSY - (See inset B), Includes: Ref. 19 and 20

1шт.

19

87017024

TUBE NUT,1/2"-24

NUT (For 1/4" O.D. tube)

1шт.

20

222-102

SLEEVE,1/4" Tube

1шт.

21

A20541

CLIP

- oil, Serial Range: tube-brkt.

1шт.

22

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Clip Hex, 5/16"-18 x 5/8", G5, Full Thd

1шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

1шт.

25

A34818

ELBOW - turbo, exh. (Eng. S.N. 2172721 and after)

1шт.

26

A34819

RING - sealing, exhaust elbow (use w/ref. 25)

1шт.

27

A56081

ELBOW - turbo exh. (Prior Eng. S.N. 2172721) (Order Ref. 25 and 26)

1шт.

28

A29356

STUD

- turbo, exhaust elbow (3/8" N.C. x 1-1/2")

4шт.

29

131-903

NUT,3/8"-16

NUT - (3/8" N.C. hex.)

4шт.

30

A56082

PIPE - turbo exhaust, upper

1шт.

31

A56189

PIPE - turbo, exhaust, lower

1шт.

32

A56084

BRACKET - turbo exh. pipe, upper

1шт.

33

A56086

COLLAR CLAMP

CLAMP ASSY - turbo exhaust pipe

5шт.

34

A56085

BRACKET - turbo exhaust pipe, lower

1шт.

35

113-220

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/4", G5

BOLT - lower brkt. (3/8" x 1-1/4" N.C. hex)

3шт.

36

195-25

WASHER,3/8"

(13/32 x 13/16 x 5/64")

9шт.

37

A56190

BRACKET - turbo, Serial Range: pipe-frame

1шт.

38

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

39

92-6

LOCK WASHER,3/8"

1шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

41

A56517

BRACKET - lower exh. pipe

1шт.

42

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Bracket Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

43

A24998

TUBE - drain, Serial Range: turbo-block

1шт.

44

222-416

CONNECTOR, ELEC

CONNECTOR ASSY. (See Inset C), Includes: Ref. 45

1шт.

45

222-507

TUBE NUT,7/8"-18

NUT - compression (For 5/8" O.D. tube)

1шт.

46

222-51

ELBOW,90 Degree, 1"-18 Fem x 1/2" NPTF

ASSY (See inset D), Includes: Ref. 47 and 48

1шт.

47

222-116

TUBE NUT,1"-18

NUT (For 5/8" O.D. tube)

1шт.

48

222-106

SLEEVE,5/8" Tube

- rubber (For 5/8" O.D. tube)

1шт.
