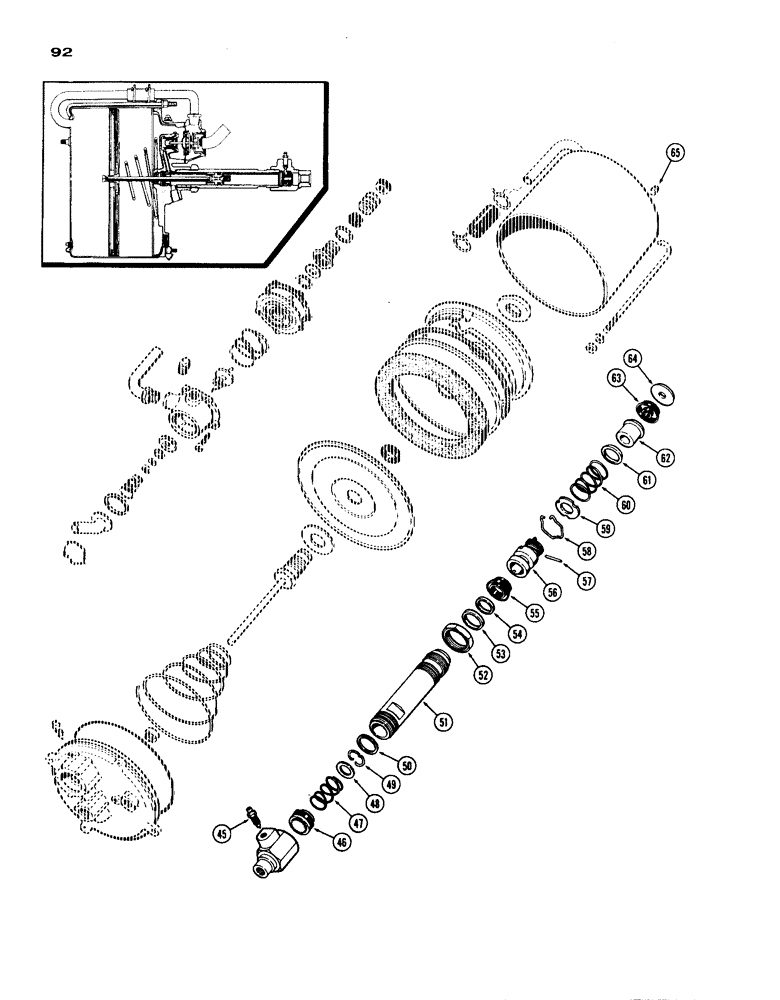

Запчасти Case IH 1200 (092) - HYDROVAC CYLINDER, CONTINUED (07) - BRAKES

A18554

CYLINDER

ASSY. - hydrovac brake, Includes: Ref. 45 - 65 and Ref. 1 - 44 on Figure 90

1шт.

45

A19696

SCREW

- bleeder

1шт.

46

A19699

VALVE

- master cylinder

1шт.

47

A19700

VALVE SPRING

SPRING - valve retainer

1шт.

48

A19701

WASHER - plug

1шт.

49

A19702

RING, SNAP

RING - snap, valve retainer

1шт.

50

A19703

GASKET

- end cap

1шт.

51

A24906

TUBE

- slave cylinder

1шт.

52

A19705

NUT - slave tube

1шт.

53

A19706

SEAL

- piston

1шт.

54

A19707

SEAL

- slave tube

1шт.

55

NSS

NOT SOLD SEPARAT

CUP - piston

1шт.

56

A19709

PISTON ASSY.

PISTON - hydraulic

1шт.

57

A19710

AXLE PIN

PIN - valve plunger

1шт.

58

NSS

NOT SOLD SEPARAT

RING - snap, piston retaining

1шт.

59

A19712

WASHER

- piston cap

1шт.

60

A19713

VALVE SPRING

SPRING - piston

1шт.

61

A19714

SLEEVE - piston

1шт.

62

A19715

RETAINER

- seal

1шт.

63

NSS

NOT SOLD SEPARAT

CUP - piston

1шт.

64

NSS

NOT SOLD SEPARAT

WASHER - piston rod

1шт.

65

A19680

PLUG

- housing, 1/8" P.T.

1шт.

A24877

KIT

- poppet replacement (See Figure 95)

1шт.

A24878

REPAIR KIT

KIT - minor repair (See Figure 95)

1шт.

A24876

KIT

- major repair (See Figure 95)

1шт.

A19735

KIT

- piston packing (See Figure 95)

1шт.
