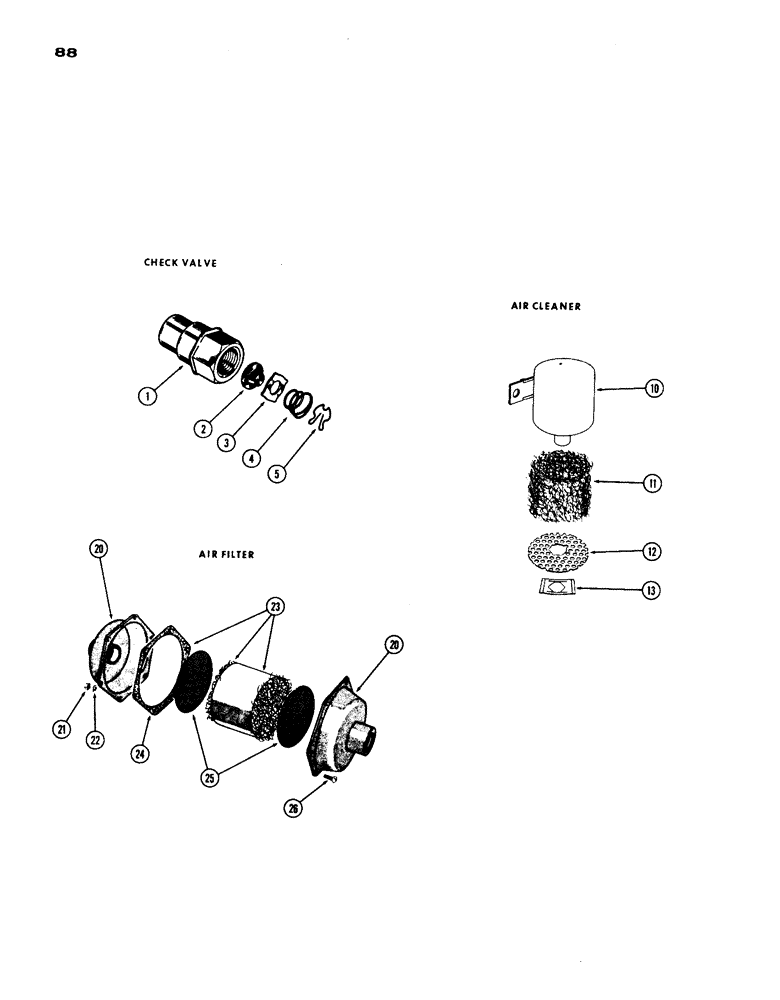

Запчасти Case IH 1200 (088) - CHECK VALVE (07) - BRAKES

A18513

LOCK VALVE

VALVE ASSEMBLY - check, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order A18513)

1шт.

2

A19743

SEAL ASSY.

SEAL - poppet

1шт.

3

A19744

RETAINER

- seal

1шт.

4

A19745

SPRING

- check valve

1шт.

5

A19746

RETAINER - spring

1шт.

A18529

CLEANER ASSY. - air, hydrovac, Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

SHELL ASSY. - air cleaner (Order A18529)

1шт.

11

A19750

ELEMENT

FILTER - air cleaner (hair, 11-02 grams)

1шт.

12

A19749

PLATE ASSY.

PLATE - screening, ai cleaner

1шт.

13

A19748

FASTENER - screening plate, air cleaner

1шт.

A18532

CLEANER

FILTER ASSY. - air, vacuum pump, Includes: Ref. 20 - 26

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - filter assembly (Order A18532), air

2шт.

21

129-640

NUT,#6-32, Brass

- #6 N.C. hex., air filter

6шт.

22

192-5

LOCK WASHER,#6

WASHER, LOCK, , Air filter #6

6шт.

23

A40055

FILTER

ELEMENT KIT - filter, w/gasket, air, Includes: Ref. 24

1шт.

24

A40054

GASKET

- air filter

1шт.

25

A19752

FILTER STRAINER

SCREEN - air filter element

2шт.

26

A19753

SCREW - mach. #6-32 x 3/8" N.C., air filter

6шт.
