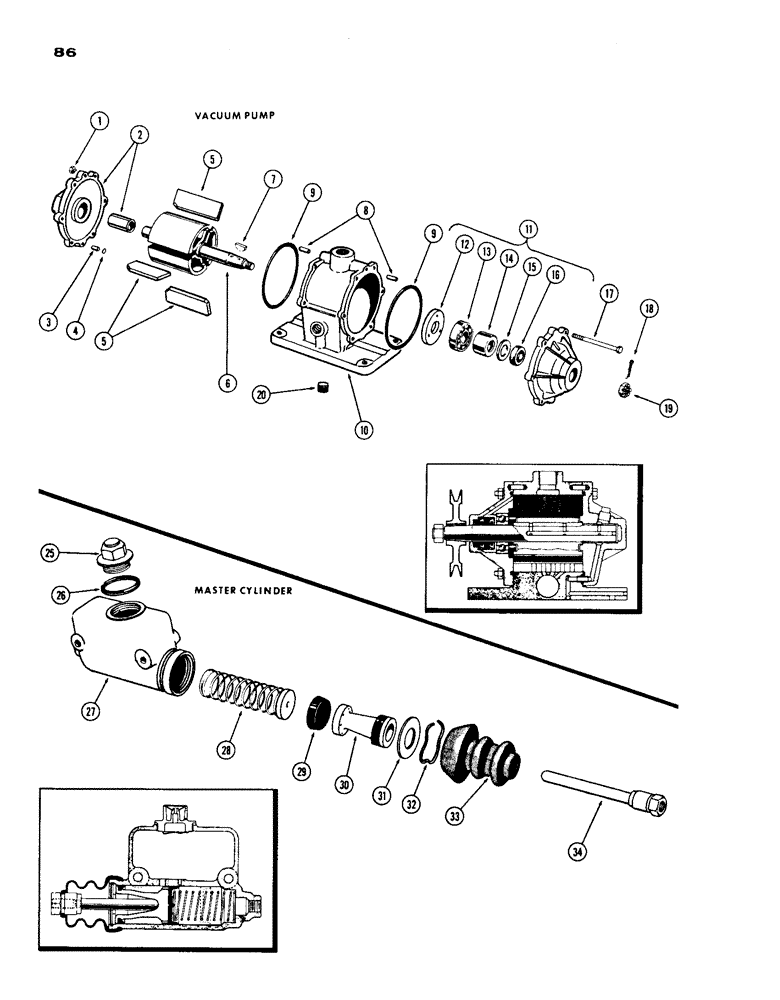

Запчасти Case IH 1200 (086) - VACUUM PUMP (07) - BRAKES

A18534

PUMP

ASSY. - vacuum, hydrovac, Includes: Ref. 1 - 20

1шт.

1

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex.

6шт.

2

L30005

PLATE ASSY.

- end, rear

1шт.

3

A19720

RETAINER - gasket (used w/early model)

1шт.

4

A19721

GASKET

- retainer (used w/early model)

1шт.

5

A19722

KIT

VANE KIT - rotor (Set of 3)

1шт.

6

A19723

ROTOR & BALL ASSY. - vacuum pump

1шт.

7

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

Pulley #9, 3/16" x 3/4"

1шт.

8

A19724

DOWEL

PIN - dowel, end plate locating

2шт.

9

A19725

GASKET

- end plates

2шт.

10

L30006

HOUSING

ASSY. - w/ball

1шт.

11

A19732

PLATE ASSY. - end, front, Includes: Ref. 12 - 16

1шт.

12

A19727

NO LONGER SERVICED

BAFFLE - end plate, front

1шт.

13

A19728

BALL BEARING

BEARING - ball

1шт.

14

A19729

SEAL

SEAL - oil, rotor shaft

1шт.

15

A19730

GASKET

- oil seal

1шт.

16

A19731

FELT

WASHER - end plate (felt)

1шт.

17

14-472

BOLT,Hex, 1/4" - 28 x 4-1/2", Gr 5

- end plate to hsg., 1/4" x 4-1/2" N.F. hex.

6шт.

18

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

1шт.

19

25-238

SLOTTED NUT,1/2"-20, G5, Thk

NUT - castle, 1/2" N.F. hex.

1шт.

20

221-1843

PLUG

- 3/8" hex. sckt. head, pipe

1шт.

A18557

CYLINDER

ASSY. - master brake, Includes: Ref. 25 - 34

1шт.

25

A19918

CAP

PLUG - filler, master cyliner

1шт.

26

A19755

GASKET

- filler plug, master cylinder

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order A18557), master

1шт.

28

A19803

SEAL

SPRING - piston, master cylinder

1шт.

29

A19807

CUPEL

CUP - primary, master cylinder

1шт.

30

NSS

NOT SOLD SEPARAT

PISTON ASSY. - cylinder (Order A19919), master

1шт.

31

A19759

PLATE

- stop, master

1шт.

32

A19760

RING

LOCKWIRE - stop plate, master

1шт.

33

A19916

BOOT

- cylinder and piston rod, master

1шт.

34

A25256

ROD - push, cylinder, master

1шт.

A19919

KIT

- cyl. repair (incl. Ref. 29, 30, 32 and 33), master cylinder

1шт.
