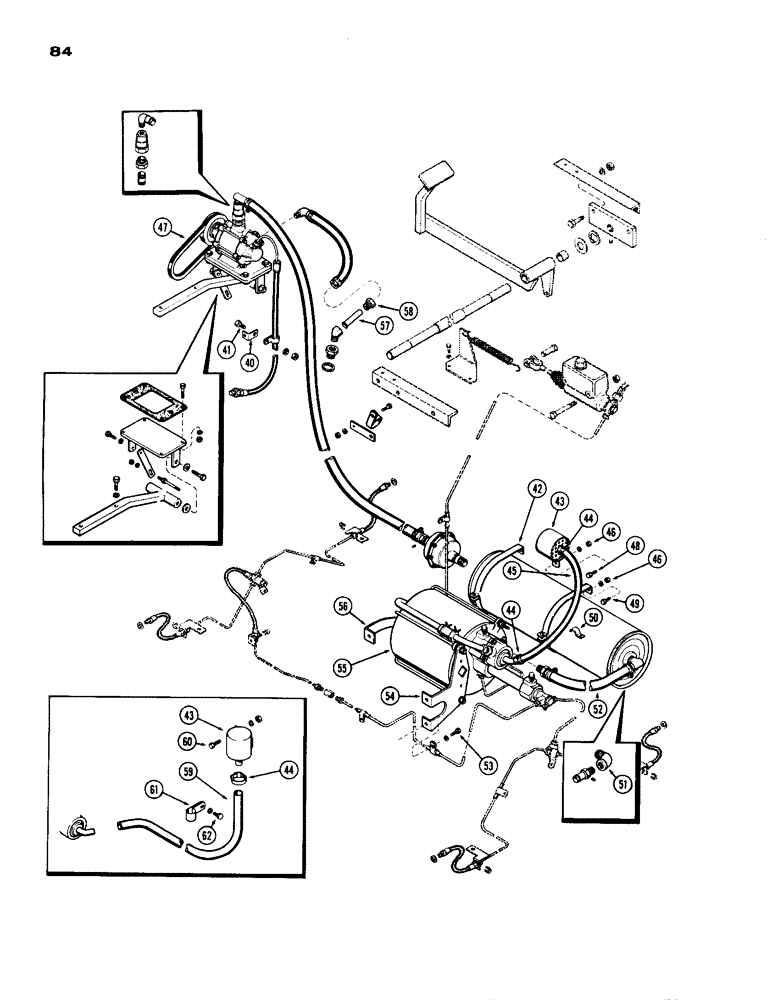

Запчасти Case IH 1200 (084) - HYDROVAC BRAKE SYSTEM, CONTINUED (07) - BRAKES

42

A18516

STRAP - mtg., reservoir

4шт.

43

A18529

CLEANER ASSY. - air. hyd. (Repair list, Figure 89)

1шт.

44

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, air cleaner

2шт.

45

A19325

INTAKE AIR HOSE,19.00 mm ID x 559.00 mm, SAE 20R1

- Air cleaner to Hydrovac (Prior Unit S/N 9801866) 19.00 mm ID x 559.00 mm, SAE 20R1

1шт.

46

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

5шт.

47

L10746

BELT,44.00" L

Vacuum pump drive 44.00" L

1шт.

48

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

49

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

50

A17542

CLAMP

CLIP -, Serial Range: hose,-frame

1шт.

51

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 1/2" pipe (Galv.)

1шт.

52

A55408

HOSE

- reservoir, Serial Range: tank-hydrovac

1шт.

53

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

54

A18521

BRACKET - mtg., hydrovac

1шт.

55

A18554

CYLINDER

UNIT ASSY. - hydrovac (Repair, list Figures 91 and 93)

1шт.

56

A18522

BRACKET - hydrovac mounting

1шт.

57

L10265

TUBE - pump oil return 0.5 mm OD x 2 mm L

1шт.

58

222-1005

NUT - inverted flare

1шт.

59

L10745

HOSE - air cleaner to hydv. (Unit S/N 9801866 & after)

1шт.

60

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

61

A17543

CLIP -, Serial Range: hose-frame

1шт.

62

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.
