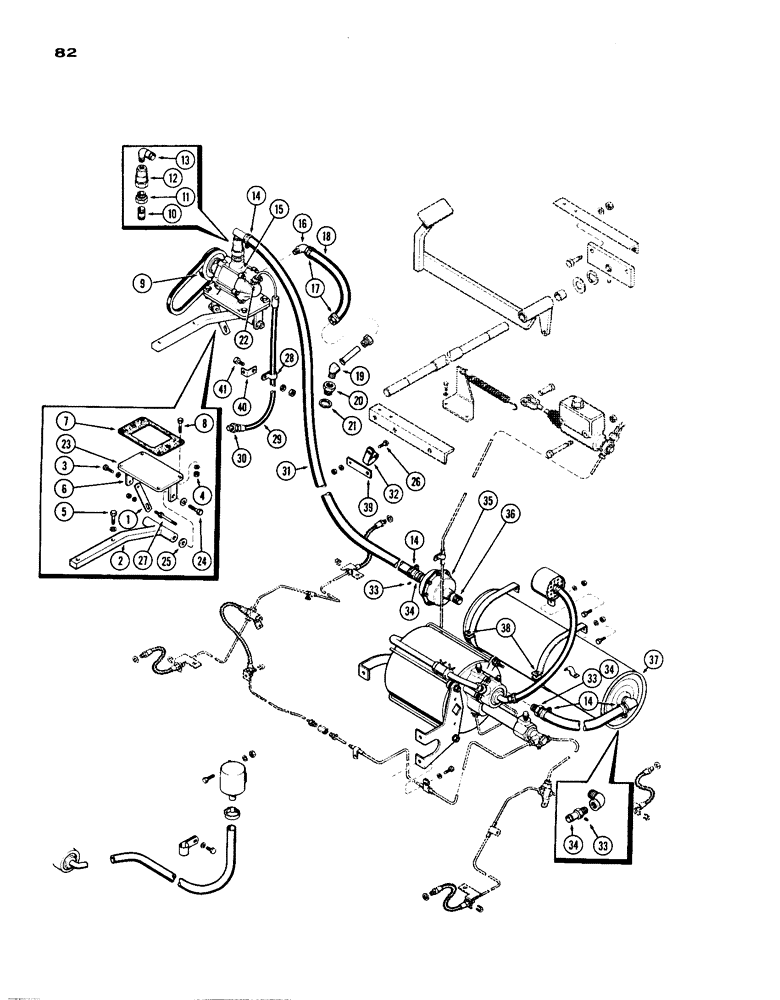

Запчасти Case IH 1200 (082) - HYDROVAC BRAKE SYSTEM (07) - BRAKES

1

A18545

STRAP - adjusting, pump

1шт.

2

A18542

BRACKET - mtg., vacuum pump

1шт.

3

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

4

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

5

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

6

A19497

ANGLE - mtg., adjusting strap

1шт.

7

A18535

GASKET

- vacuum, Serial Range: pump-base

1шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex.

4шт.

9

L10747

PULLEY - vacuum pump

1шт.

10

221-1185

FITTING

NIPPLE - close, 1/2" pipe

1шт.

11

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducer, 3/4" to 1/2" pipe

1шт.

12

A18513

LOCK VALVE

VALVE ASSY. - check (Repair list, Figure 89)

1шт.

13

A17852

ELBOW - suction hosee, 90 deg.

1шт.

14

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16"

4шт.

15

A18534

PUMP

ASSY. - hydrovac vacuum (Repair, Figure 87)

1шт.

16

A27489

ELBOW UNION

ELBOW - pump lube oil, 90deg.

1шт.

17

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16"

2шт.

18

A18551

HOSE,0.50" ID x 14.00", SAE 40R3A

0.50" ID x 14.00", SAE 40R3H - Oil return, pump

1шт.

19

222-1035

ELBOW - oil return hose

1шт.

20

A18550

PLUG

- oil return hose

1шт.

21

A27947

X

GASKET - timing plug

1шт.

22

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR #69 - 1/4" tube x 1/4" pipe

1шт.

23

A19580

BRACKET - vacuum pump mounting

1шт.

24

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

25

195-33

WASHER,1/2"

- spacer, plain 1/2"

1шт.

26

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 1/16" x 1-1/4" N.C. hex.

2шт.

27

A18546

BOLT (SPREADER)

STUD - support, adjusting strap

1шт.

28

49774

CLAMP

CLIP - hose, lube oil

1шт.

29

A18547

HOSE

- vacuum pump lube oil

1шт.

30

221-1053

BUSHING

- reducer, 1/4 x 3/8"

1шт.

31

A18533

HOSE

- vacuum, Serial Range: pump-reservoir

1шт.

32

A27256

CLAMP

CLIP - vacuum hose

3шт.

33

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd.

3шт.

34

A18515

SUN VISOR

NIPPLE - hose to cleaner, 1/2" hose, w/1/8" P.T.

3шт.

35

A18532

CLEANER

FILTER ASSY. - air, vacuum pump (Repair Figure 89)

1шт.

36

221-112

PIPE

NIPPLE - close, 1/2" pipe x 3"

1шт.

37

A18514

TANK

- air reservoir

1шт.

38

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

BOLT - stove, 1/4" x 2-1/4" N.C.

2шт.

39

A19330

STRAP - vacuum hose support

1шт.

40

L12266

BRACKET

- vacuum pump hose clip

1шт.

41

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Bracket Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.
