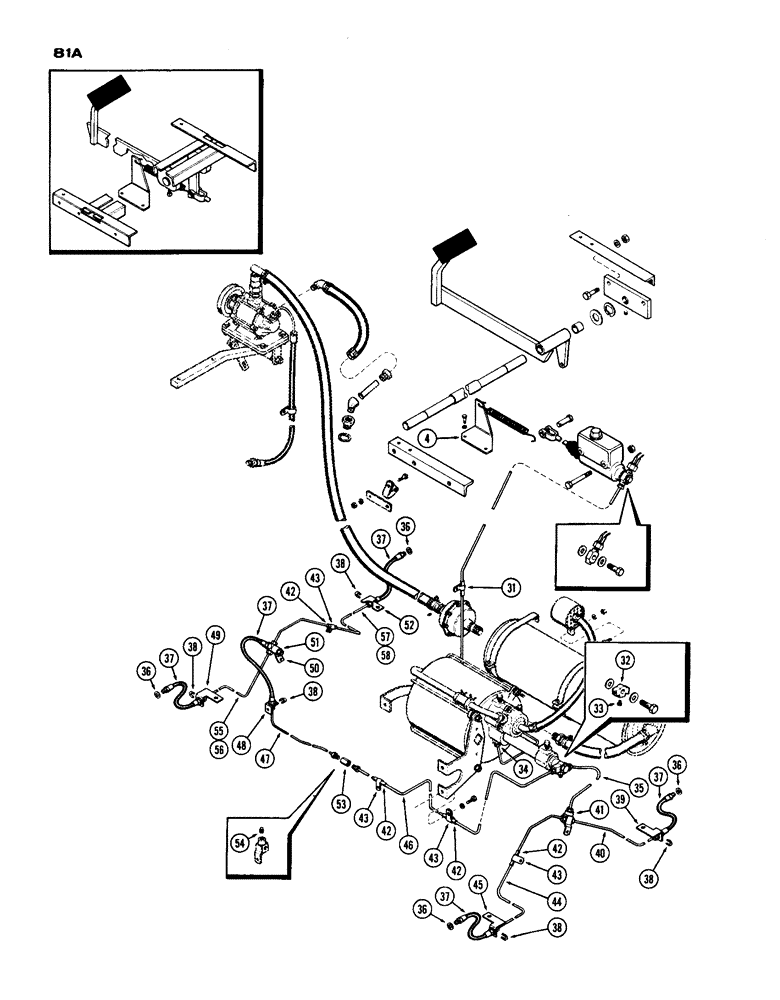

Запчасти Case IH 1200 (081A) - HYDRAULIC BRAKE LINES AND PEDAL SYSTEM, CONTINUED (07) - BRAKES

31

A7922

CLIP

- hydraulic tube

1шт.

32

A17386

FITTING

- hyd. block

1шт.

33

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd.

1шт.

34

A18273

FITTING

- connector, hyd. tube

1шт.

35

A55410

TUBE ASSY. - brake line

1шт.

36

A12643

WASHER

- brake hose

4шт.

37

A56478

HYDRAULIC HOSE

HOSE - brake, line to wheel cylinder

5шт.

38

A12628

WASHER

- brake hose to bracket ("C" type)

5шт.

39

L11401

BRACKET - brake hose, rear R.H.

1шт.

40

A14490

TUBE - brk., axle tee to brkt., rear R.H.

1шт.

41

A12452

FITTING

TEE - tube, brake line

1шт.

42

A12458

SLEEVE

LOOM - brake tube clip

5шт.

43

A12454

CLIP

- tube, brake line

5шт.

44

A14491

TUBE - brk., axle tee to brt., rear L.H.

1шт.

45

L11400

BRACKET - brk. hose, rear L.H.

1шт.

46

A55496

TUBE - brake line, Serial Range: hydrovac-tee

1шт.

47

A55498

TUBE - brk. line, tee to front bracket

1шт.

48

A14125

BRACKET - brk. hose and tube

1шт.

49

L11401

BRACKET - brk. hose, front L.H.

1шт.

50

A13101

STRAP - mtg., front axle tee

1шт.

51

A13100

TEE

- front axle brake

1шт.

52

L11400

BRACKET - brake hose, front R.H.

1шт.

53

222-1053

HYD CONNECTOR,1/4" Inv Fl

UNION - connector, 1/4" tube x 7/16" - 24

1шт.

54

222-1062

PLUG,7/16"-24, Inv Fl

- 7/16" Inv. flared tube

1шт.

55

L11398

TUBE - brake, front L.H. (Used Tractor S.N. 9806101 amd after)

1шт.

56

A14490

TUBE - brake, front L.H. (Prior tractor S/N 9806101)

1шт.

57

L11398

TUBE - brake, front R.H. (Used Tractor S.N. 9806101 and after)

1шт.

58

A14491

TUBE - brake, front R.H. (Used Prior tractor S.N. 9806101)

1шт.
