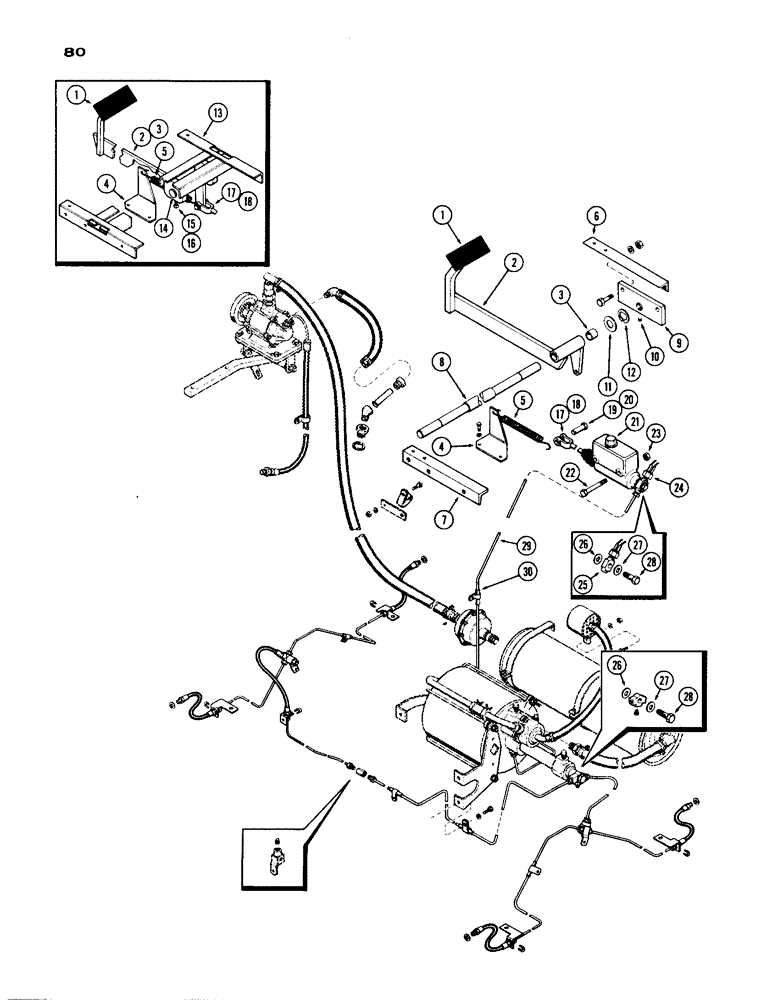

Запчасти Case IH 1200 (080) - HYDRAULIC BRAKE LINES AND PEDAL SYSTEM (07) - BRAKES

1

F9197

PAD

- brake pedal

1шт.

2

A55499

PEDAL ASSY. - brake, w/brgs., Includes: Ref. 3

1шт.

3

A30845

BUSHING

- brake pedal assy

2шт.

4

A56105

BRACKET - pedal return spring

1шт.

5

L10873

SPRING

- brake pedal return (Trac. S.N. 9804309 & after)

1шт.

5

A27473

SPRING

- brake pedal return (Prior Tractor S.N. 9804309) (Order L10873)

1шт.

6

L10516

ANGLE - brake pedal shaft mtg. (R.H.) (Tractor S/N 9801866 and after)

1шт.

7

L10515

ANGLE - brake pedal shaft mtg. (L.H.) (Tractor S/N 9801866 and after)

1шт.

8

L10530

SHAFT - brake pedal mounting (Tractor S/N 9801866 and after)

1шт.

9

L10516

SUPPORT - brake pedal shaft (L.H. & R.H.) (Tractor S/N 9801866 and after)

2шт.

10

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16" x 1/2" N.C. hex. socket hd.

2шт.

11

195-111

WASHER,1"

- plain, 1-1/16" x 2-1/2" x 11/64"

1шт.

12

D21476

RING - retaining, brake pedal

1шт.

13

A55573

BRACKET ASSY. - mtg., clutch & brake pedal (Prior Tractor S/N 9801866)

1шт.

14

A55505

SHAFT - brake pedal (Prior Unit S/N 9801866)

1шт.

15

A7045

SCREW - lock, brake lever (Prior Trac. S/N 9801866)

1шт.

16

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex

1шт.

17

A55506

ROD - push, master brake cyl

1шт.

18

25-157

JAM NUT,Jam, 7/16"-20, G5

- jam, 7/16" N.F. hex.

1шт.

19

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevks, 1/2" SAE

1шт.

20

132-8

X

PIN - cotter, 1/8" x 1"

1шт.

21

A18557

CYLINDER

ASSY. - master brake (Repairs, P. 87)

1шт.

22

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8" x 3-1/2" N.C. hex.

2шт.

23

131-6

LOCK NUT,3/8"-16, GC

NUT - 3/8" N.C. hex. (Special)

2шт.

24

A12491

SWITCH

ASSY - brake, stop light

1шт.

25

A12863

SUN VISOR

FITTING - hyd. block, master cyl.

1шт.

26

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- hyd. block, large (Copper)

2шт.

27

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - hyd. block, small (Copper)

2шт.

28

A12864

BOLT

- hyd. block

2шт.

29

A55406

TUBE ASSY. - master cyl. to hyd. unit

1шт.

30

A12458

SLEEVE

LOOM - hyd. tube clip

1шт.
