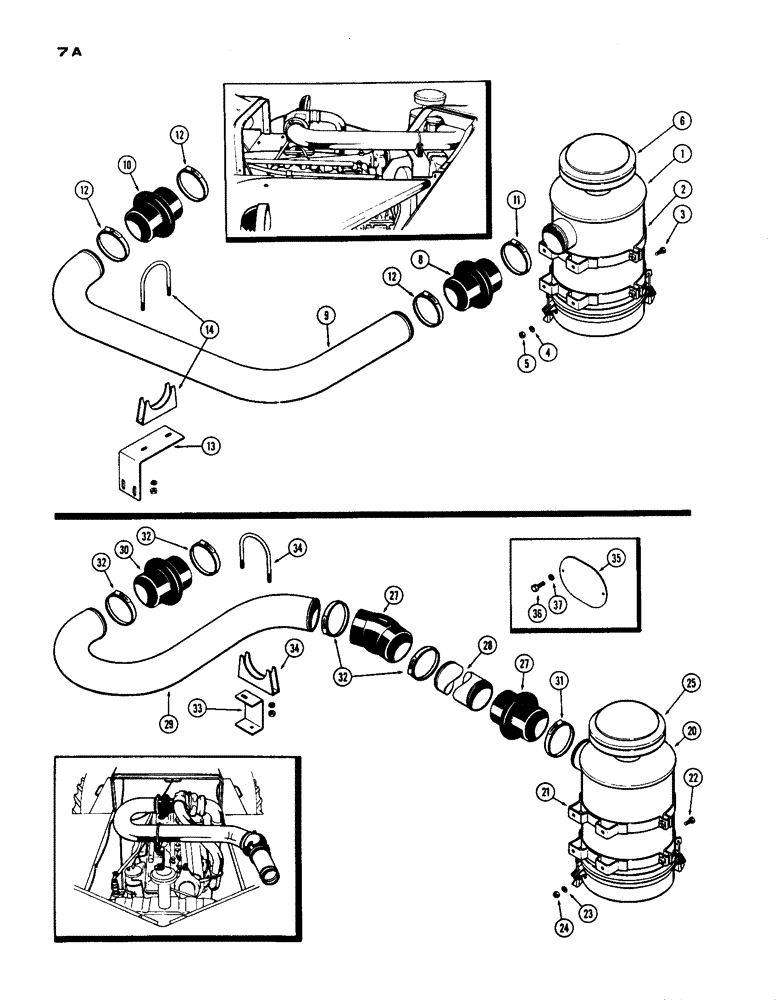

Запчасти Case IH 1200 (007A) - AIR CLEANER SYSTEM, (451) DIESEL ENGINE, USED WITH CAB, FIRST USED TRACTOR SERIAL NUMBER 9800221 (02) - ENGINE

1

A56083

CLEANER ASSY. - air (see Figure 7)

1шт.

2

A56089

SUPPORT

BAND ASSY. - air cleaner mounting

2шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- air cleaner (3/8 x 1-1/2" N.C. hex.)

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

4шт.

6

L10659

CAP

- air cleaner

1шт.

A25263

CLAMP ASSY. - cap to cleaner (not illust.)

1шт.

8

L10267

HOSE - adapter, air cleaner to pipe (4" I.D.)

1шт.

9

L10266

PIPE - air intake

1шт.

10

A56094

HOSE

- adapter, pipe to turbo (3" x 4" I.D.)

1шт.

11

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose (2-13/16" to 3-3/4")

1шт.

12

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose

3шт.

13

L10268

BRACKET - air intake pipe

1шт.

14

A56092

CLAMP

ASSY. -, Serial Range: pipe-bracket

1шт.

20

A56083

CLEANER ASSY. - air (see Figure 7), used prior to tractor s/n 9800221

1шт.

21

A56089

SUPPORT

BAND ASSY. - air cleaner mounting, used prior to tractor s/n 9800221

2шт.

22

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- air cleaner (3/8 x 1-1/2" N.C. hex.), used prior to tractor s/n 9800221

4шт.

23

92-6

LOCK WASHER,3/8"

used prior to tractor s/n 9800221 3/8"

4шт.

24

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.), used prior to tractor s/n 9800221

4шт.

25

L10659

CAP

- air cleaner, used prior to tractor s/n 9800221

1шт.

A25263

CLAMP ASSY. - cap to cleaner (not illust.), used prior to tractor s/n 9800221

1шт.

27

L10267

HOSE - adapter, air cleaner to pipe (4" I.D.), used prior to tractor s/n 9800221

1шт.

28

L10296

PIPE - air intake (7-13/16" long), used prior to tractor s/n 9800221

1шт.

29

A56090

PIPE - air intake, used prior to tractor s/n 9800221

1шт.

30

A56094

HOSE

- adapter, pipe to turbo (3" to 4"), used prior to tractor s/n 9800221

1шт.

31

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose (2-13/16" to 3-3/4"), used prior to tractor s/n 9800221

1шт.

32

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose, used prior to tractor s/n 9800221

5шт.

33

L10295

BRACKET - air intake pipe, used prior to tractor s/n 9800221

1шт.

34

A56092

CLAMP

ASSY. - pipe to bracket, used prior to tractor s/n 9800221

1шт.

35

L10249

PLATE - air cleaner hole, used prior to tractor s/n 9800221

1шт.

36

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

BOLT - plate (1/4" x 1/2" N.C. rd. hd.), used prior to tractor s/n 9800221

2шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used prior to tractor S/N 9800221 1/4"

2шт.
