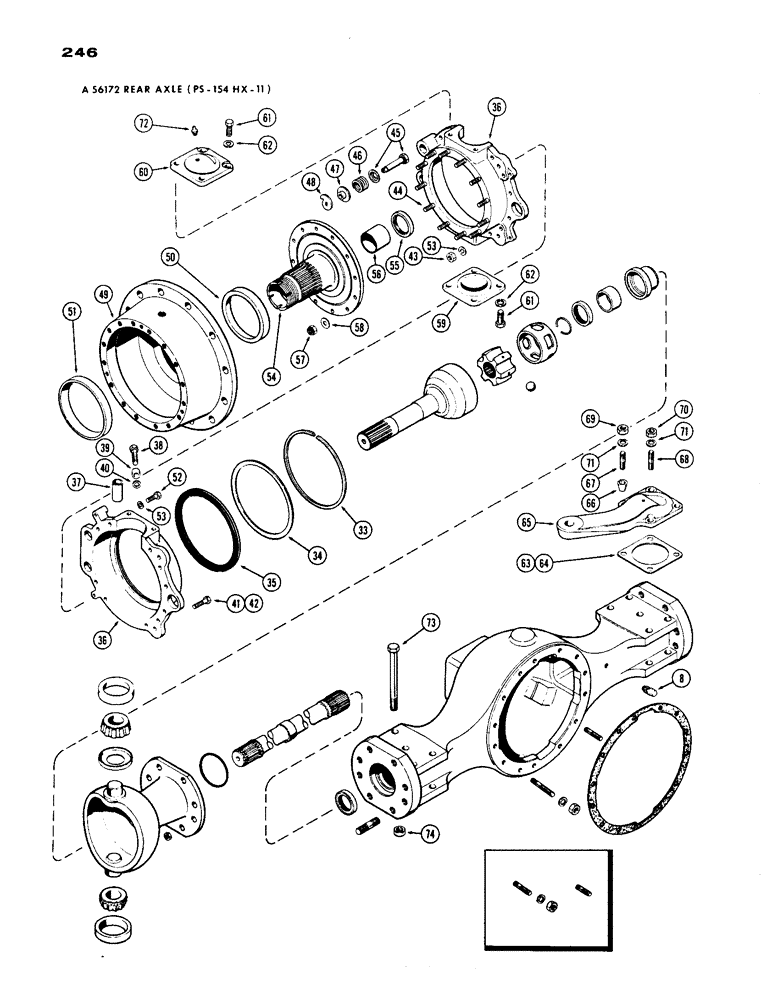

Запчасти Case IH 1200 (246) - A56172 REAR AXLE HOUSING AND KNUCKLE, CONTINUED, 19.03 RATIO WITH CONSTANT VELOCITY JOINT (06) - POWER TRAIN

33

A15038

RING

- snap, seal retainer

2шт.

34

A15035

RETAINER

- socket seal

2шт.

35

A15029

SEAL

- grease, trunnion socket

2шт.

36

A15050

HUB CAP

FLANGE ASSY. - strg. knuckle (matched set), Includes: Ref. 37 - 51

2шт.

37

A15081

BUSHING,22.28mm ID x 28.66mm OD x 56.36mm L

- tie rod bolt

1шт.

38

A15078

SCREW - stop, steering

1шт.

39

A15037

SPACER

- stop screw

1шт.

40

A15043

SHIM

- stop screw spacer (.010")

1шт.

41

113-405

X

BOLT - flange halves, 1/2 x 1-1/4" N.C. hex. hd.

2шт.

42

114-407

X

BOLT - flange halves, 1/2 x 1-7/8" N.F. hex. hd.

2шт.

43

25-178

NUT,1/2"-20, G5, Hvy

- flange bolt, 1/2" N.F. hex.

2шт.

44

A15024

STUD

-, Serial Range: spindle-flange

12шт.

45

A16391

AXLE PIN

BOLT ASSY. - brake shoe adjusting

2шт.

46

A15069

VALVE SPRING

SPRING - brake adjusting bolt

2шт.

47

A15061

SPACER

RETAINER - bolt spring

2шт.

48

A13201

SHOE

CAM - brake shoe adjusting

2шт.

49

A14963

HUB ASSY. - wheel planetary, Includes: Ref. 50 and 51

1шт.

50

A14985

BEARING CUP

CUP - bearing, hub inner

1шт.

51

A14961

BEARING CUP

CUP - bearing, hub outer

1шт.

52

113-405

X

BOLT - flange halves, 1/2 x 1-1/4" N.C. hex. hd.

8шт.

53

92-8

LOCK WASHER,1/2"

16шт.

54

A15051

STEERING KNUCKLE

SPINDLE ASSY. - steering knuckle, Includes: Ref. 55 and 56

2шт.

55

A15028

SEAL

- oil, joint shaft

1шт.

56

A15032

BUSHING

- spindle

1шт.

57

A15033

LOCK NUT

- spindle to flange stud

24шт.

58

A15036

WASHER

- spindle mounting nut

24шт.

59

A15047

CAP

- bearing, steering lower

2шт.

60

A15046

CAP - bearing, steering lower R.H. side

1шт.

61

113-603

X

BOLT - bearing cap, 5/8 x 1-1/2" N.C. hex. hd.

12шт.

62

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

63

A15041

SHIM

- bearing cap, upper & lower (.005")

1шт.

64

A15042

SHIM

- bearing cap, upper & lower (.010")

1шт.

65

A25268

ARM & CAP - bearing, upper L.H. side

1шт.

66

A13105

BUSHING

DOWEL - split, arm stud

2шт.

67

A15077

STUD

- strg. arm inner (2-5/8" long)

2шт.

68

A15076

STUD

- strg. arm outer (2" long)

2шт.

69

A15080

NUT

- strg. arm inner stud

2шт.

70

129-562

NUT,5/8"-18, G8

- strg. arm outer stud, 1/2" N.F. hex. jam

2шт.

71

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

72

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

2шт.

73

116-702

BOLT

BOLT - axle mounting, 3/4 x 8" N.F. hex. hd.

8шт.

74

131-186

LOCK NUT,3/4"-16, GB

NUT - axle mtg. bolt, 3/4" N.F. hex.

8шт.
