Артикул
Название
Примечание
Количество
A56172

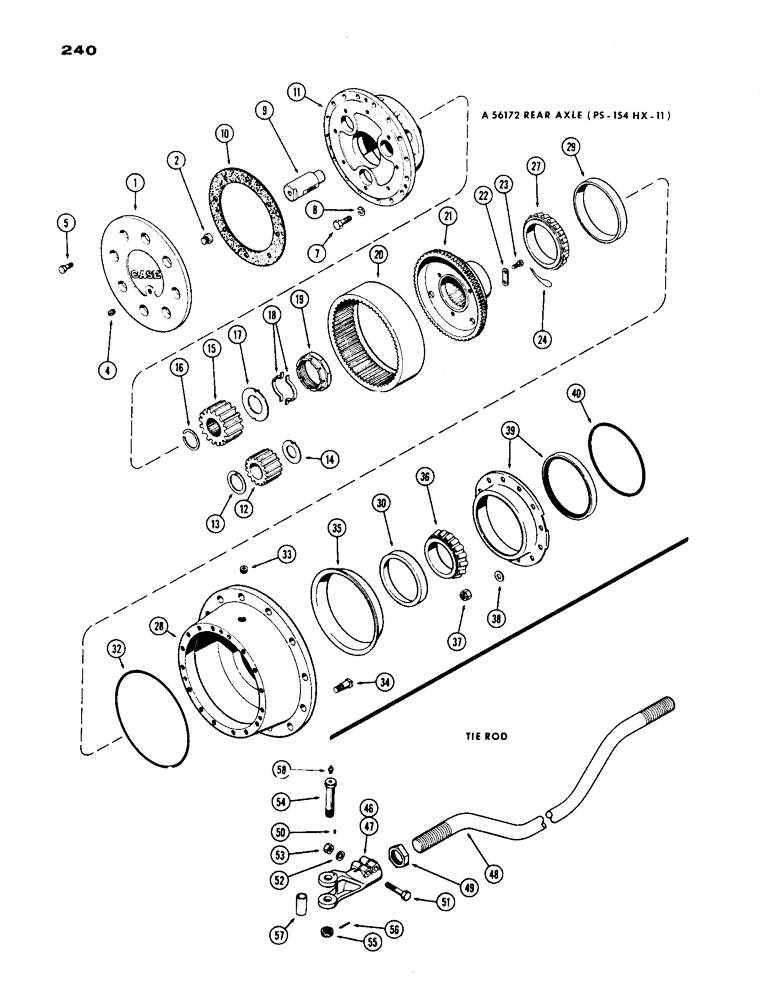

AXLE ASSY. - rear steering (Incl. Figures 241 - 251)
1шт.
1
A14973
X
COVER - planetary spider
2шт.
2
A12980
BUTTON
- thrust, drive joint
2шт.
4
221-1031
DRAIN PLUG,Sq Soc, 1/4"-18 NPTF
PLUG - planetary cover, 1/4" P.T. sq. sckt. hd.
2шт.
5
L30675
SCREW
BOLT - planetary, Serial Range: cover-spider
16шт.
7
26-826
BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 8
- spider to hub, 1/2 x 1-5/8" N.C. hex. hd.
32шт.
8
92-8
LOCK WASHER,1/2"
32шт.
9
A19885
SHAFT
- planetary pinion
6шт.
10
A14971
GASKET
- planetary, Serial Range: cover-spider
2шт.
11
A14979
U-JOINT SPIDER
SPIDER - planetary
2шт.
12
A14977
GEAR
PINION - planetary (16T)
6шт.
13
A14967
WASHER
- thrust, pinion outer
6шт.
14
A19886
WASHER
- thrust, pinion inner
6шт.
15
A14976
GEAR
- sun, planetary (20T)
2шт.
16
A14969
RING, SNAP
RING - snap, sun gear retainer
2шт.
17
A14966
WASHER
- planetary sun gear
2шт.
18
A14970
LOCK ASSY
LOCK - adjusting nut, hub bearing
4шт.
19
A14965
NUT
- adjusting, hub bearing
2шт.
20
A14975
GEAR
- ring, planetary (52T)
2шт.
21
A14978
HUB
ASSY. - ring gear drive, w/sleeve
2шт.
22
A14964
LOCK ASSY
LOCK - ring gear
8шт.
23
A15983
BOLT,M10 x 1.25 x 40mm, Cl 10.9
CAPSCREW - ring gear lock
16шт.
24
NSS
NOT SOLD SEPARAT
LOCKWIRE - gear lock capscrew
1шт.
27
A14960
BEARING
- cone, wheel hub outer
2шт.
28
A14963
HUB ASSY. - axle wheel & planetary, Includes: Ref. 29 and 30
2шт.
29
A14961
BEARING CUP
CUP - bearing, hub outer
1шт.
30
A14985
BEARING CUP
CUP - bearing, hub inner
1шт.
32
A19887
O-RING,11.5" ID x 11.68" OD x 0.103"
"O" RING - spider to hub seal
2шт.
33
221-678
DRAIN PLUG,Sq Soc, 3/4" NPT
PLUG - drain, 3/4" P.T. Magnetic ctr. - sunk
2шт.
34
A13112
STUD
STUD - axle wheel hub
24шт.
35
A15418
SLINGER
- oil, wheel hub
2шт.
36
A15020
ROLLER BEARING,4" ID x 1.4219"
BEARING - cone, wheel hub inner
1шт.
37
A15033
LOCK NUT
- strg. spindle &, Serial Range: retainer-flange
24шт.
38
A15036
WASHER
- spindle & retainer nut
24шт.
39
L34036
SEAL
RETAINER ASSY. - oil seal, hub bearing (Replaces A15031)
2шт.
40
A15025
O-RING,8 3" ID x 9" OD x 1/8"
"O" RING - retainer to knuckle flange
2шт.
46
A13004
YOKE
- tie rod R.H.
1шт.
47
A13005
YOKE
- tie rod L.H.
1шт.
48
A15082
TIE-ROD
ROD - tie, axle steering
1шт.
49
A13115
LOCK NUT
NUT - tie rod R.H. lock
1шт.
50
A13111
AXLE PIN
PIN - lock, yoke bolt, tie rod
2шт.
51
25282R1
BOLT,Hex, 1/2" - 20 x 2 3/4", Gr 8
- yoke clamp, 1/2 x 2-3/4" N.F. hex. hd., tie rod
4шт.
52
92-8
LOCK WASHER,1/2"
tie rod 1/2"
4шт.
53
129-545
NUT,1/2"-20, G8
Yoke bolt, tie rod 1/2"-20, G8
4шт.
54
A13107
BOLT
- tie rod to axle flange
2шт.
55
A13110
NUT
- tie rod bolt
2шт.
56
132-52
COTTER PIN,1/8" x 1 1/2"
Pin, Split (Cotter), , Tie rod 1/8" x 1 1/2"
2шт.
57
A15081
BUSHING,22.28mm ID x 28.66mm OD x 56.36mm L
- tie rod yoke bolt
2шт.
58
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, 1/8" str., tie rod
2шт.
Выбрано товаров: 49
