Запчасти Case IH 1200 (238) - A55157 REAR AXLE DIFFERENTIAL, CONTINUED, 19.03 RATIO WITH CARDON (06) - POWER TRAIN

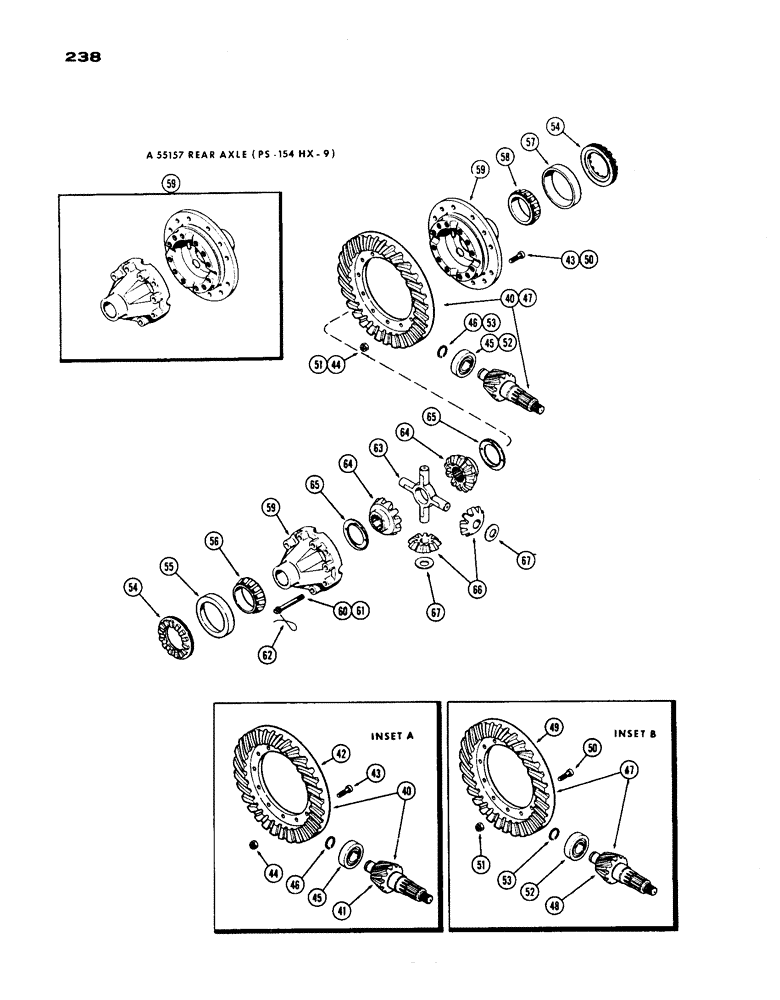

Схема запчастей Case IH 1200 - (238) - A55157 REAR AXLE DIFFERENTIAL, CONTINUED, 19.03 RATIO WITH CARDON (06) - POWER TRAIN
49
47
50
45
59
53
43
53
54
61
60
67
54
45
58
51
64
57
66
48
40
46
59
65
52
44
41
47
44
56
62
42
46
40
43
50
63
64
52
59
67
51
65
55

№

Артикул

Название

Примечание

Количество

40

A25246

GEAR & PINION SET - differential (matched set) (Exhaust stock, then order ref. 47) (See inset "A"), Includes: Ref. 41 - 44

1шт.

41

NSS

NOT SOLD SEPARAT

SHAFT - pinion (Order Ref. 40) (9-13/16" over all length)

1шт.

42

NSS

NOT SOLD SEPARAT

GEAR - bevel, diff. (Order Ref. 40) (See inset "A")

1шт.

43

A16438

BOLT

- bevel gear to case half

12шт.

44

129-283

NUT

- bevel gear bolt, 5/8" N.C. hex., thick sltd.

12шт.

45

A19892

ROLLER BEARING,1.378 mm ID x 2.8346 mm OD

BEARING - pinion rear (21/32" width)

1шт.

46

A15442

LOCK

RING - lock, pinion bearing retaining

1шт.

47

L30391

GEAR-SET

GEAR & PINION SET - diff. (matched set) (See inset "B"), Includes: Ref. 48 - 53

1шт.

48

NSS

NOT SOLD SEPARAT

SHAFT - pinion (Order Ref. 47) (9-29/32" overall length)

1шт.

49

NSS

NOT SOLD SEPARAT

GEAR - bevel, differential (Order Ref. 47)

1шт.

50

A16438

BOLT

- bevel gear to diff. case half

12шт.

51

129-283

NUT

- bevel gear bolt, 5/8" N.C. hex., thick sltd.

12шт.

52

L30387

ROLLER BEARING

BEARING - pinion rear (13/16" width)

1шт.

53

A15442

LOCK

RING - lock, pinion bearing

1шт.

54

A25225

RING

- adjusting, diff. bearing

2шт.

55

A25222

BEARING CUP

CUP - bearing, diff. plain case side

1шт.

56

A50197

ROLLER BEARING,3" ID x 0.906"

BEARING - cone, diff. plain case side

1шт.

57

40399

WIRE

CUP - cone bearing, diff. flange case side

1шт.

58

A25224

ROLLER BEARING,3" ID x 1.2205"

BEARING - cone, diff. flange case side

1шт.

59

A25128

CASE

ASSY. - differential (matched halves)

1шт.

60

A25145

BOLT

- diff. case halves (3.19" long)

8шт.

61

A25144

BOLT,1/2" - 13 x 2.38", Gr 8, Drilled

BOLT - diff. case halves (2.38" long)

8шт.

62

NSS

NOT SOLD SEPARAT

LOCKWIRE - case half bolt

16шт.

63

A25143

SPIDER ASSY.

SPIDER - differential pinion

1шт.

64

A25141

GEAR

- side, differential

2шт.

65

A25142

WASHER

- thrust, side gear

2шт.

66

A25131

PINION

- differential

4шт.

67

A25140

WASHER

- thrust, pinion

4шт.

Выбрано товаров: 28
