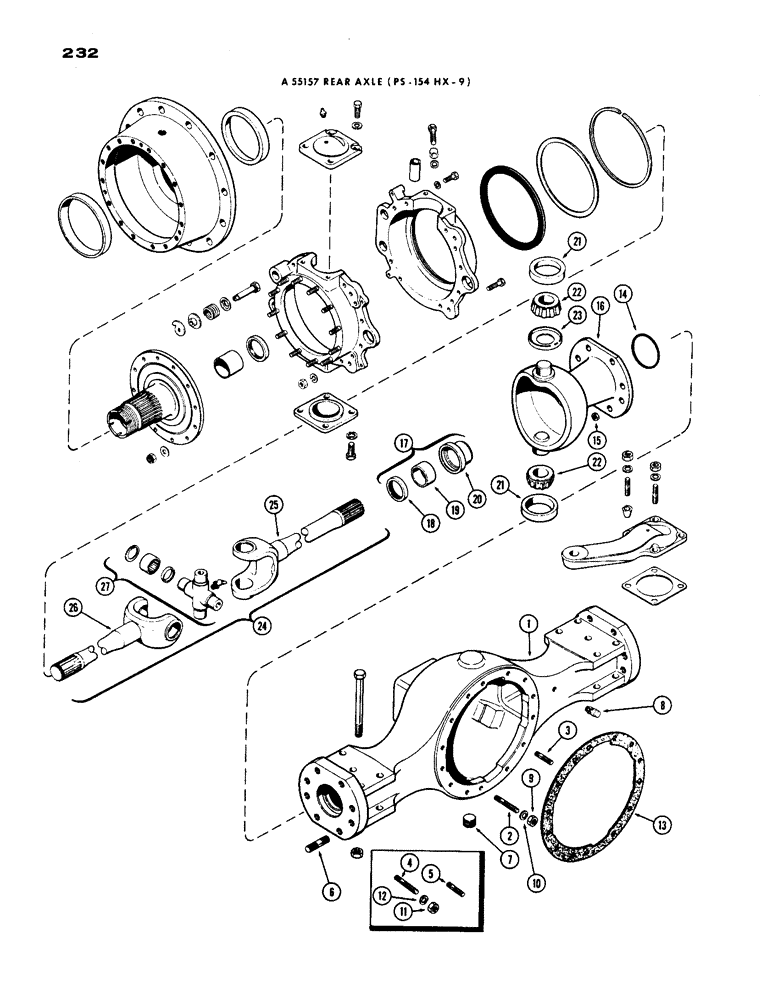

Запчасти Case IH 1200 (232) - A55157 REAR AXLE HOUSING AND KNUCKLE, 19.03 RATIO WITH CARDON JOINT (06) - POWER TRAIN

1

A25266

HOUSING ASSY. - rear axle, Includes: Ref. 2 - 7

1шт.

2

L30673

STUD

- carrier to housing (3" long)

4шт.

3

A13130

STUD

- carrier to housing (2-5/8")

10шт.

4

A13130

STUD

- carrier to housing (2-5/8" long) replaced by L30673 stud)

4шт.

5

A13131

STUD

- carrier to housing (2" long) replaced by A13130 stud)

10шт.

6

A16374

STUD

- trunnion, Serial Range: socket-housing

16шт.

7

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - drain, 1-1/4" P.T. sq. socket hd.

1шт.

8

A12928

BREATHER

- oil, axle housing

1шт.

9

131-74

LOCK NUT,1/2"-20

NUT - housing stud, 1/2" N.F. hex. Elastic stop (use w/ref. 2 & 3 studs)

14шт.

10

L30674

WASHER

- housing stud (use w/ref. 2 & 3 studs)

14шт.

11

129-545

NUT,1/2"-20, G8

Hsg. stud (Use w/ref. 4 & 5) 1/2"-20, G8

14шт.

12

92-8

LOCK WASHER,1/2"

(Use w/Ref. 4 & 5) 1/2"

14шт.

13

A12943

GASKET

-, Serial Range: carrier-housing

1шт.

14

A15026

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

SEAL - trunnion, Serial Range: socket-housing

2шт.

15

131-159

HARDWARE

NUT - jam, 1/2" N.F. hex. lock

16шт.

16

A25229

SOCKET ASSY. - steering trunnion, Includes: Ref. 17 - 20

2шт.

17

A25232

SUPPORT ASSY. - axle shaft, Includes: Ref. 18 - 20

1шт.

18

A25235

OIL SEAL

SEAL - oil, axle support

1шт.

19

A25234

BUSHING,57.63mm ID x 65.2mm OD x 31.75mm L

- axle support

1шт.

20

NSS

NOT SOLD SEPARAT

SUPPORT - axle shaft, (Order Ref. 17)

1шт.

21

40406

CUP

- bearing, upper & lower strg. bearing

4шт.

22

A15022

CUP ASSY.

BEARING - cone, upper & lower steering

4шт.

23

A15027

RETAINER

- grease, upper strg. bearing

2шт.

24

A25148

JOINT

ASSY. - axle pivot, Includes: Ref. 25 - 27

2шт.

25

A25150

SHAFT

- axle joint inner

1шт.

26

A25149

YOKE

SHAFT - axle joint outer

1шт.

27

A25151

KIT

SPIDER ASSY. - universal, axle joint

1шт.
