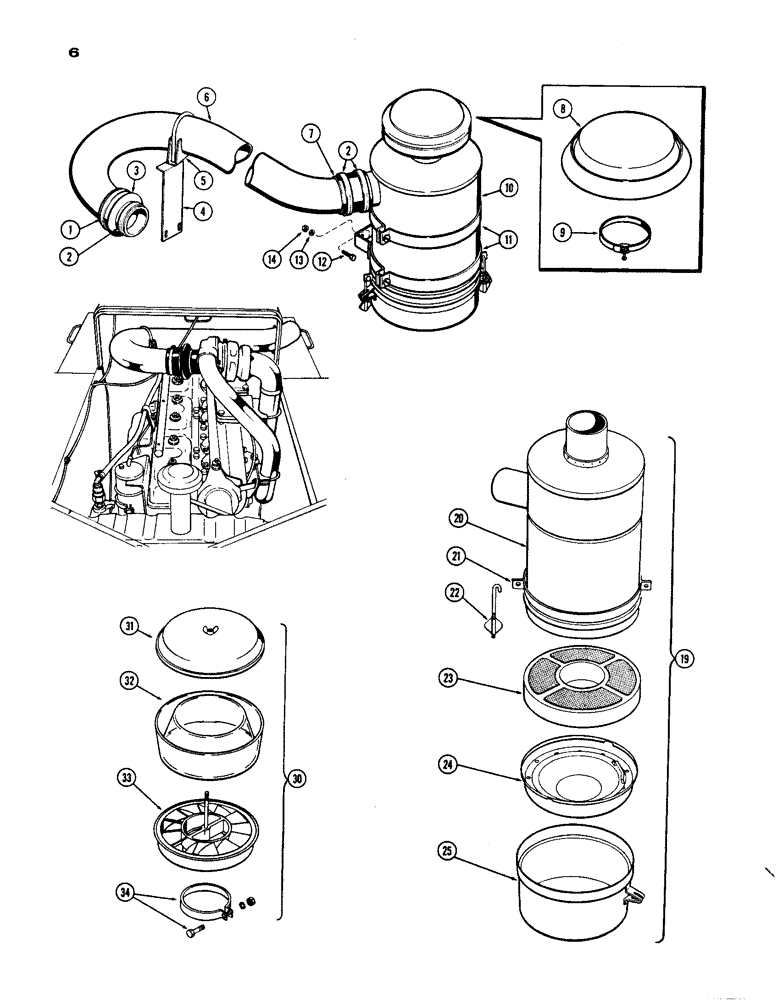

Запчасти Case IH 1200 (006) - AIR CLEANER SYSTEM, (451) DIESEL ENGINE, USED WITHOUT CAB (02) - ENGINE

1

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose

1шт.

2

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - hose

3шт.

3

A56094

HOSE

- adapter

1шт.

4

A56091

BRACKET - air intake pipe

1шт.

5

A56092

CLAMP

ASSY - intake pipe

1шт.

6

A56090

PIPE - air intake

1шт.

7

A56093

HOSE

- air cleaner tube

1шт.

8

L10659

CAP

- air cleaner, w/cab

1шт.

8

A56088

CAP

- air cleaner, w/o cab

1шт.

9

A25263

CLAMP ASSY - air cleaner cap

1шт.

10

A56083

CLEANER ASSY. - air

1шт.

11

A56089

SUPPORT

BAND ASSY - air cleaner mtg.

2шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

19

A56083

CLEANER ASSEMBLY - air, Includes: Ref. 20 - 25

1шт.

20

NSS

NOT SOLD SEPARAT

BODY ASSY - air cleaner

1шт.

21

A25206

BAND ASSY - air cleaner, w/screw and nut

1шт.

22

A55771

HARDWARE

ROD ASSY - cup retainer, w/wing nut, air cleaner

2шт.

23

A25205

ELEMENT ASSY - air cleaner

1шт.

24

A25239

CUP ASSY - inner oil, air cleaner

1шт.

25

A25238

CUP ASSY - oil, air cleaner

1шт.

L80150

PRE-CLEANER ATTACHMENT - air (Machy.), Includes: Ref. 30 - 34

1шт.

30

L11824

AIR PRE-CLEANER ASSY

PRE-CLEANER ASSY. - air, Includes: Ref. 31 - 33

1шт.

31

L30669

COVER

- pre-cleaner, air attachment

1шт.

32

L30671

HOUSING

BOWL - pre-cleaner, air attachment

1шт.

33

L30672

SLEEVE

- pre-cleaner, air attachment

1шт.

34

A25263

CLAMP ASSY. - pre-cleaner mounting, air attachment

1шт.
