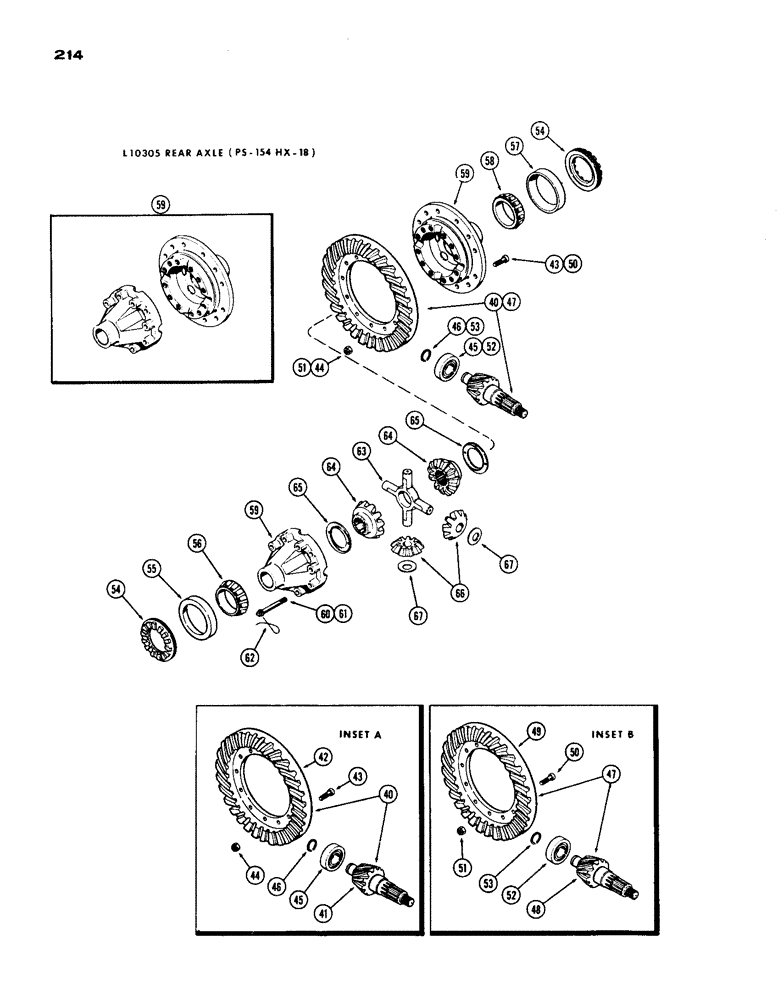

Запчасти Case IH 1200 (214) - L10305 REAR AXLE DIFFERENTIAL, CONTINUED, 19.03 RATIO WITH CARDON JOINT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
40
A25246
GEAR & PINION SET - differential (matched set) (Exhaust stock, then order ref. 47) (See inset "A"), Includes: Ref. 41 - 44
1шт.
41
NSS
NOT SOLD SEPARAT
SHAFT - pinion (Order ref. #40) (9-13/16" overall length)
1шт.
42
NSS
NOT SOLD SEPARAT
GEAR - bevel, diff. (Order Ref. 40) (See inset "A")
1шт.
43
A16438
BOLT
- bevel gear to case half
12шт.
44
129-283
NUT
- bevel gear bolt, 5/8" N.C. hex., thick sltd.
12шт.
45
A19892
ROLLER BEARING,1.378 mm ID x 2.8346 mm OD
BEARING - pinion rear (21/32" width)
1шт.
46
A15442
LOCK
RING - lock, pinion bearing retaining
1шт.
47
L30385
GEAR & PINION SET - diff. (matched set) (See inset "B"), Includes: Ref. 48 - 53
1шт.
48
NSS
NOT SOLD SEPARAT
SHAFT - pinion (Order ref. 47) (9-29/32" overall length)
1шт.
49
NSS
NOT SOLD SEPARAT
GEAR - bevel, differential (Order Ref. 47)
1шт.
50
A16438
BOLT
- bevel gear to diff. case half
12шт.
51
129-283
NUT
- bevel gear bolt, 5/8" N.C. hex., thick sltd.
12шт.
52
L30387
ROLLER BEARING
BEARING - pinion rear (13/16" width)
1шт.
53
A15442
LOCK
RING - lock, pinion bearing
1шт.
54
A25225
RING
- adjusting, diff. bearing
2шт.
55
A25222
BEARING CUP
CUP - bearing, diff. plain case side
1шт.
56
A50197
ROLLER BEARING,3" ID x 0.906"
BEARING - cone, diff. plain case side
1шт.
57
ST968
BEARING CUP,3" ID x 1.7875"
CUP - cone bearing, diff. flange case side
1шт.
58
A25224
ROLLER BEARING,3" ID x 1.2205"
BEARING - cone, diff. flange case side
1шт.
59
A25128
CASE
ASSY. - differential (matched halves)
1шт.
60
A25145
BOLT
- diff. case halves (3.19" long)
8шт.
61
A25144
BOLT,1/2" - 13 x 2.38", Gr 8, Drilled
BOLT - diff. case halves (2.38" long)
8шт.
62
NSS
NOT SOLD SEPARAT
LOCKWIRE - case half bolt
16шт.
63
A25143
SPIDER ASSY.
SPIDER - differential pinion
1шт.
64
A25141
GEAR
- side, differential
2шт.
65
A25142
WASHER
- thrust, side gear
2шт.
66
A25131
PINION
- differential
4шт.
67
A25140
WASHER
- thrust, pinion
4шт.
Выбрано товаров: 28
