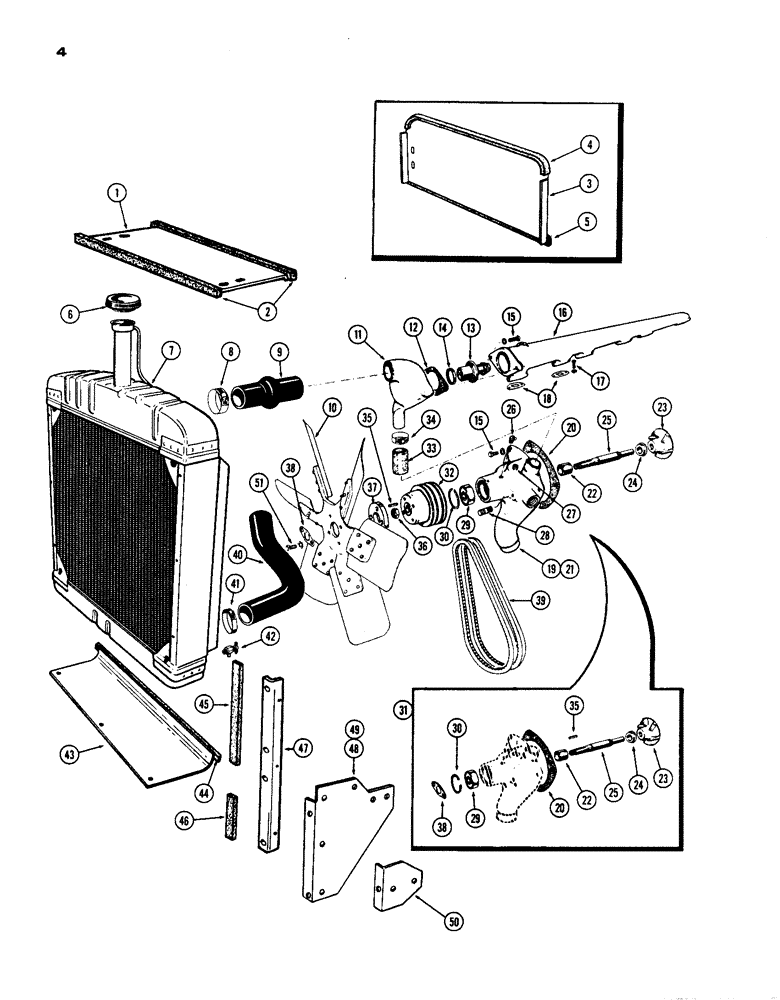

Запчасти Case IH 1200 (004) - ENGINE COOLING SYSTEM, (451) DIESEL ENGINE (02) - ENGINE

1

L10247

BAFFLE ASSY - rad., upper (S/N9800221 and after), Includes: Ref. 2

1шт.

2

A56191

SEAL - baffle

2шт.

3

A56296

BAFFLE ASSY - rad. upper (Prior S/N9800221), Includes: Ref. 4 and 5

1шт.

4

A23796

SEAL

- radiator baffle, upper

1шт.

5

A56191

SEAL - radiator baffle, lower

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

6

A21389

CAP

- radiator filler

1шт.

7

A55998

RADIATOR - engine cooling

1шт.

8

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - radiator hose, upper

2шт.

9

A15489

RADIATOR HOSE,2.50" ID, SAE 20R2

Upper 2.50" ID, SAE 20R2

1шт.

10

A56087

FAN

- radiator, suction type

1шт.

11

A11420

HOUSING - thermostat

1шт.

12

A11421

GASKET

- thermostat hsg.

1шт.

13

A7634

THERMOSTAT

- engine water, 180 deg. - 195 deg.F, Includes: Ref. 14

1шт.

14

A11423

SEAL

- thermostat

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

16

A11419

HOSE ASSY.

MANIFOLD - water

1шт.

17

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

12шт.

18

A27905

GASKET

- water manifold

6шт.

19

A189511

PUMP, WATER

WATER PUMP ASSY - engine (Replaces A24809), Includes: Ref. 20 - 30

1шт.

20

M1127885

STEM

- water pump

1шт.

21

A24992

THRUST WASHER

BODY ASSY - water pump, w/bushing, Includes: Ref. 22

1шт.

22

A27900

BUSHING

- water pump

1шт.

23

A26299

IMPELLER

- water pump

1шт.

24

A24995

SEAL

- water pump

1шт.

25

A23636

SHAFT

- water pump

1шт.

26

219-54

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 1/8" x 67-1/2 deg. Lincoln

1шт.

27

221-1843

PLUG

- 3/8" P.T. hex. sckt. hd. pipe

1шт.

28

A7391

STUD

- water pump hsg.

1шт.

29

A27152

BALL BEARING,19.99mm ID x 52mm OD x 19mm W

BEARING - water pump

1шт.

30

A27150

RING

- bearing ret. water pump

1шт.

31

A24180

KIT

REPAIR KIT - water pump

1шт.

32

A60157

PULLEY

- fan (Replaces A21454)

1шт.

33

A11887

HOSE,1.50" ID x 2.75", SAE 20R2

- Water by-pass 1.50" ID x 2.75", SAE 20R2

1шт.

34

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

by-pass #28, 1.31/2.25 Type F Worm

2шт.

35

A21075

KEY

- fan pulley

1шт.

36

A15488

NUT - fan pulley retaining

1шт.

37

A15505

SPACER - fan

1шт.

38

A26707

LOCK

- fan pulley nut

1шт.

39

A18426

SET OF BELTS,53.00" L

SET OF 2 BELTS , Matched, Fan pulley 53.00" L

1шт.

40

A56079

HOSE,2.25" ID x 10.13", SAE 20R4 CLASS SC

RADIATOR HOSE, , Radiator to Water Pump 2.25" ID x 10.13", SAE 20R4 CLASS SC

1шт.

41

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, lower radiator

2шт.

42

A27862

COCK, DRAIN

DRAIN COCK - radiator

1шт.

43

A56297

BAFFLE ASSY - radiator, lower, Includes: Ref. 44

1шт.

44

A56191

SEAL - radiator baffle

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5шт.

45

A56298

SEAL - radiator, upper L.H. and R.H. side

2шт.

46

A56299

SEAL - radiator, lower L.H. and R.H. side

2шт.

47

L10122

BRACKET - radiator mounting

2шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex

10шт.

48

A55148

BRACKET - mtg., upper rad., R.H. (Prior S/N9800221)

1шт.

49

A55149

BRACKET - mtg. upper rad. L.H. (Prior S/N9800221)

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F., hex

8шт.

50

A55999

BRACKET - mtg., rad., lower, Serial Range: (Prior-S/N9800221)

2шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

51

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.
