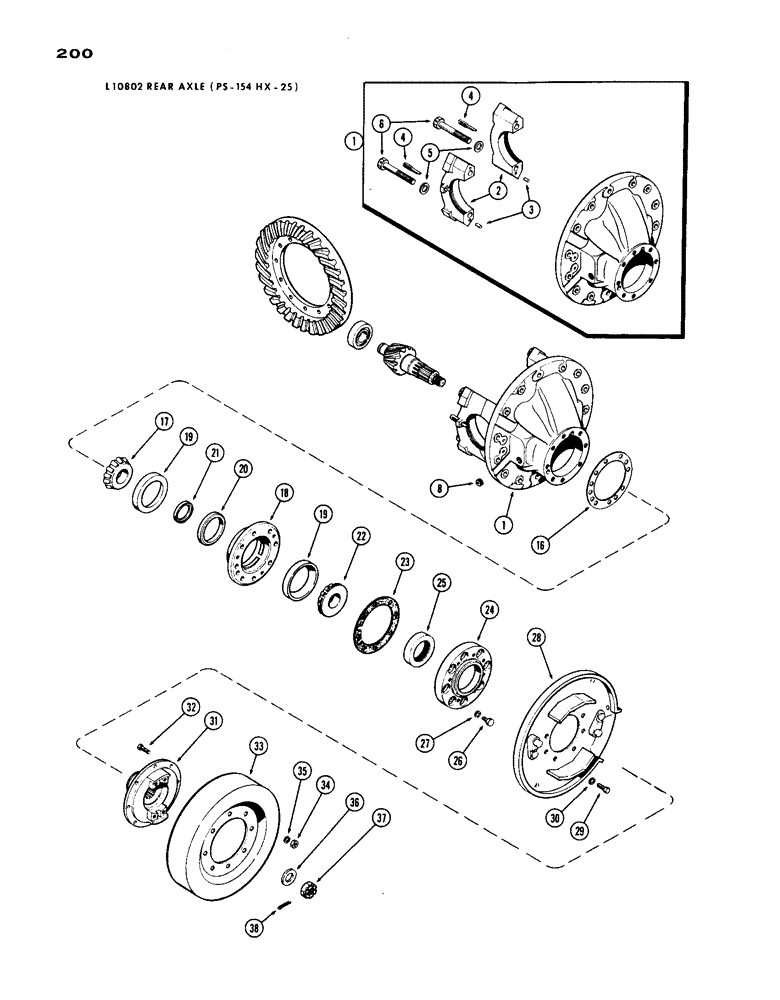

Запчасти Case IH 1200 (200) - L10802 REAR AXLE DIFFERENTIAL, 19.03 RATIO WITH CARDON JOINT (06) - POWER TRAIN

1

L30382

CARRIER ASSY. - differential, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

CAP ASSY. - bearing, differental, Includes: Ref. 3

2шт.

3

A15443

DOWEL

PIN - dowel, cap locating

2шт.

4

L30029

PIN

- lock, adjusting nut

2шт.

When lock pin is removed for repairs it must be replaced with new pin

1шт.

5

L30737

WASHER

- bearing cap bolt

4шт.

6

A12938

SCREW,5/8" - 11 x 4 1/2"

BOLT - bearing cap, differential

4шт.

7

NSS

NOT SOLD SEPARAT

LOCKWIRE - bearing cap

4шт.

8

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- carrier, 3/4" P.T. sq. socket hd.

1шт.

16

A12958

SHIM,.003" Thk

Pinion bearing cage .003" Thk

1шт.

16

A12956

SHIM,.005" Thk

Pinion bearing cage .005" Thk

1шт.

16

A12957

SHIM,.010" Thk

Pinion bearing cage .010" Thk

1шт.

17

L30032

ROLLER BEARING

- cone, pinion forward inner

1шт.

18

L30030

CAGE

ASSY. - pinion forward bearing, Includes: Ref. 19

1шт.

19

A9840

BEARING CUP

CUP - bearing, pinion forward bearing

2шт.

20

A25156

SPACER

- pinion forward bearing (.187")

1шт.

20

A25157

SPACER - pinion forward bearing (.188")

1шт.

20

A25158

SPACER - pinion forward bearing (.189")

1шт.

20

A25159

SPACER

- pinion forward bearing (.190")

1шт.

20

A25160

SPACER - pinion forward bearing (.191")

1шт.

20

A25161

SPACER - pinion forward bearing (.192")

1шт.

20

A25162

SPACER

- pinion forward bearing (.198")

1шт.

20

A25163

SPACER

- pinion forward bearing (.204")

1шт.

20

A25164

SPACER

- pinion forward bearing (.210")

1шт.

20

A25165

SPACER - pinion forward bearing (.216")

1шт.

20

A12963

SPACER

- pinion forward bearing (.222")

1шт.

21

L30388

SPACER

- pinion bearing

1шт.

22

A9841

ROLLER BEARING,1.875" ID x 1.0594"

BEARING - cone, pinion forward outer

1шт.

23

A12955

GASKET

- pinion bearing cover

1шт.

24

A25273

COVER - pinion brg. & brake adapter

1шт.

25

A25274

SEAL

- oil, pinion shaft

1шт.

26

113-314

X

BOLT - cover & cage to carrier, 7/16 x 2" N.C. hex. hd.

8шт.

27

92-7

LOCK WASHER,7/16"

8шт.

28

A25269

BACKING PLATE

PLATE ASSY. - backing, parking brake (See Figure 195 for assembly & repairs)

1шт.

29

113-313

BOLT - parking brake mtg., 7/16 x 1" N.C. hex. hd.

7шт.

30

92-7

LOCK WASHER,7/16"

7шт.

31

A25272

YOKE - companion w/brake drum flange

1шт.

32

28-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8

- drum to flange, 3/8 x 1-1/4" N.F. hex. hd.

8шт.

33

A25271

BRAKE DRUM

DRUM - parking brake

1шт.

34

129-524

NUT,3/8"-24, G8

Brake drum bolt 3/8"-24, G8

8шт.

35

92-6

LOCK WASHER,3/8"

8шт.

36

A15441

WASHER

- companion yoke retaining nut

1шт.

37

F19657

NUT

- companion yoke retainer

1шт.

38

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.
