Запчасти Case IH 1200 (194) - L10802 REAR AXLE BRAKES, 19.03 RATIO WITH CARDON JOINT (06) - POWER TRAIN

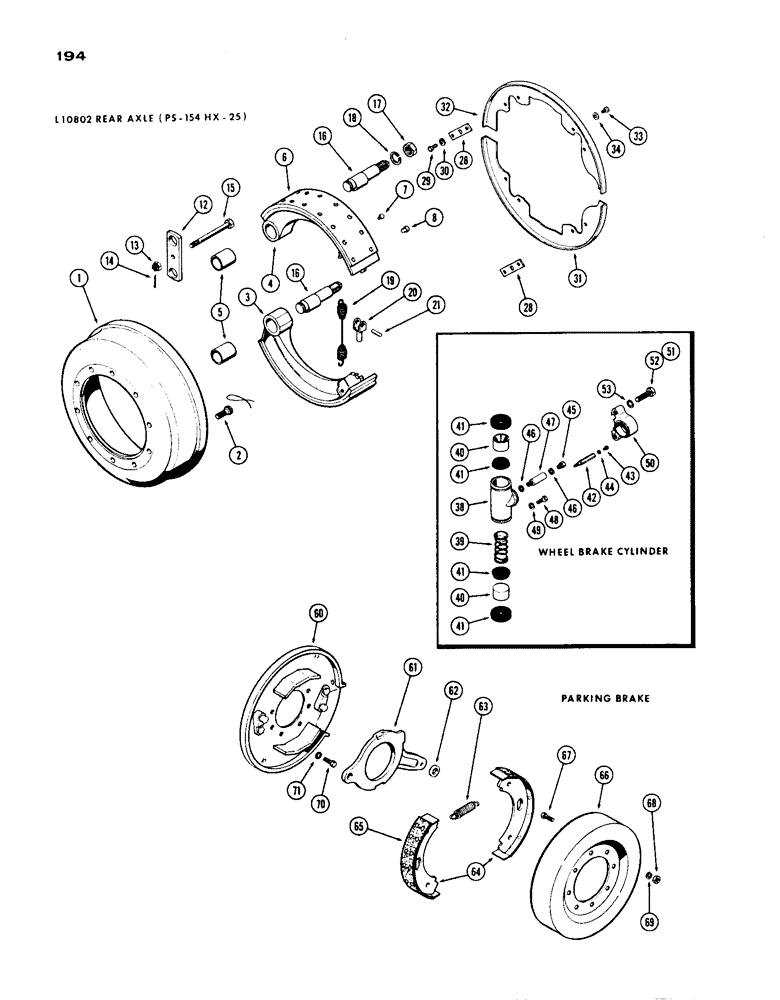

Схема запчастей Case IH 1200 - (194) - L10802 REAR AXLE BRAKES, 19.03 RATIO WITH CARDON JOINT (06) - POWER TRAIN
40
30
31
64
13
66
70
67
68
17
71
8
2
41
60
48
38
6
62
44
53
41
41
65
46
19
49
3
28
33
1
42
41
43
63
5
14
50
16
21
29
34
69
40
39
46
15
20
28
45
18
12
32
51
61
52
16
47
4
7

Артикул

Название

Примечание

Количество

1

A15045

DRUM

- brake, axle

2шт.

2

A14962

BOLT,5/8" x 1 1/2", Gr 8

- brake, Serial Range: drum-hub

20шт.

3

A15073

SHOE

ASSY. - brake, R.H. lower & L.H. upper, Includes: Ref. 5 - 8

2шт.

4

A15072

BRAKE SHOE

SHOE ASSY. - brake, R.H. upper & L.H. lower, Includes: Ref. 5 - 8

2шт.

5

A15062

BUSHING

- brake shoe pivot

1шт.

6

A14998

KIT

LINING KIT - brake shoe (Set of 2), Includes: Ref. 7

1шт.

7

A15060

RIVET

- brake, Serial Range: lining-shoe

32шт.

8

A19884

PIN

- brake shoe

2шт.

12

A15064

LINK

- brake shoe mounting

2шт.

13

129-282

SLOTTED NUT

- link bolt, 1/2" N.F. hex. high slotted

2шт.

14

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

15

A15059

BOLT

- brake shoe link

2шт.

16

A15066

AXLE PIN

PIN - anchor, brake shoe

4шт.

17

A15063

NUT

- anchor pin, 1" hex.

4шт.

18

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

19

A15071

SPRING

- return, brake shoe

2шт.

20

A14996

LINK

YOKE ASSY. - brake shoe to cylinder, Includes: Ref. 21

4шт.

21

NSS

NOT SOLD SEPARAT

PIN - brake shoe yoke (Order Ref. 20)

1шт.

28

A15067

PLATE - mounting, dust shield

4шт.

29

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

- mtg. plate, 3/8 x 7/8" N.C.

4шт.

30

92-6

LOCK WASHER,3/8"

4шт.

31

A15075

SHIELD - dust, R.H. lower & L.H. upper

2шт.

32

A15074

SHIELD - dust, R.H. upper & L.H. lower

2шт.

33

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - dust shield, 3/8 x 1/2" N.C. hex. hd.

12шт.

34

92-6

LOCK WASHER,3/8"

12шт.

A19980

CYLINDER

ASSY. - wheel brake, Includes: Ref. 38 - 41

2шт.

38

NSS

NOT SOLD SEPARAT

BODY - brake cylinder (Order A19980),wheel

1шт.

39

A15053

SPRING

- pressure, piston, brake wheel cylinder

1шт.

40

A15000

PISTON ASSY.

PISTON - brake wheel cylinder

2шт.

41

A19981

KIT

BOOT & CUP KIT - cylinder repair, brake wheel

1шт.

42

A15056

SCREW,Bleed, 1/4" - 28 x 2 15/16"

- bleeder, brake wheel cylinder

2шт.

43

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Bleeder screw, brake wheel cylinder Hex, 1/4"-28 x 1/2", G5, Full Thd

2шт.

44

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Brake wheel cylinder 1/4"

2шт.

45

A12989

ADAPTER

FITTING - cylinder inlet, brake wheel

2шт.

46

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - cylinder extension & fitting, brake wheel cylinder

4шт.

47

A15054

EXTENSION

- inlet fitting, brake wheel cylinder

2шт.

48

166-86

12 PT SCREW,Flg, 1/2" - 13 x 1 1/4", Gr 8

SCREW - cyl. mtg., 1/2 x 1-1/4" N.C. 12 pt. Ferry cap, brake wheel cylinder

4шт.

49

92-8

LOCK WASHER,1/2"

brake wheel cylinder 1/2"

4шт.

50

A15058

ADAPTER

- brake wheel cylinder

2шт.

51

113-408

X

BOLT - adapter mtg., 1/2 x 2" N.C. hex. hd., brake wheel cylinder

2шт.

52

113-430

BOLT

- adapter mtg., 1/2 x 4-1/4" N.C. hex. hd., brake wheel cylinder

2шт.

53

92-8

LOCK WASHER,1/2"

brake wheel cylinder 1/2"

4шт.

A25270

BRAKE ASSY.

- parking, rear axle, Includes: Ref. 60 - 65

1шт.

60

A25269

BACKING PLATE

PLATE ASSY. - back, parking brake

1шт.

61

A12779

LEVER

- brake cam actuator, parking

1шт.

62

A16642

WASHER

ROLLER - cam lever, parking brake

1шт.

63

A12778

SPRING

- return, brake shoe, parking

2шт.

64

A12780

BRAKE SHOE

SHOE ASSY. - parking brake (1 shoe), Includes: Ref. 65

2шт.

65

A12843

PACKAGE

LINING KIT - brake, parking

1шт.

66

A25271

BRAKE DRUM

DRUM - brake, parking

1шт.

67

28-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8

- drum to yoke, 3/8 x 1-1/4" N.F. hex. hd., parking brake

8шт.

68

129-524

NUT,3/8"-24, G8

Drum mtg. bolt, parking brake 3/8"-24, G8

8шт.

69

92-6

LOCK WASHER,3/8"

parking brake 3/8"

8шт.

70

113-313

BOLT - brake plate to brg. cover, 7/16 x 1" N.C. hex. hd., parking

7шт.

71

92-7

LOCK WASHER,7/16"

parking brake 7/16"

7шт.

Выбрано товаров: 55
