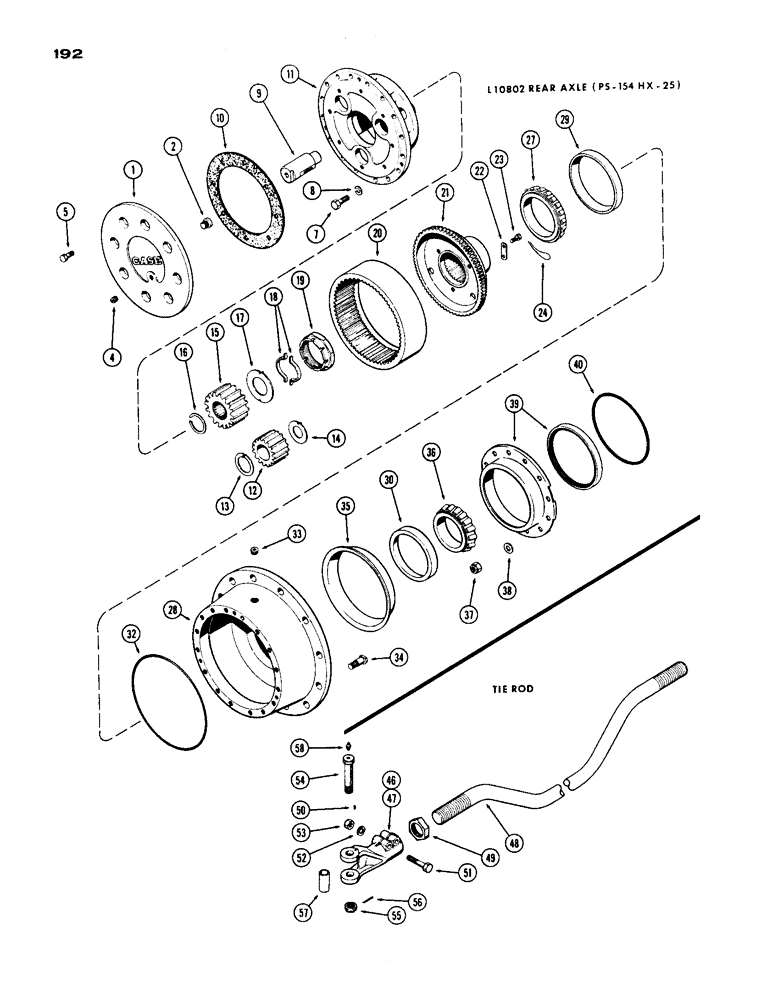

Запчасти Case IH 1200 (192) - L10802 REAR AXLE PLANETARY, 19.03 RATIO WITH CARDON JOINT (06) - POWER TRAIN

L10802

AXLE ASSY. - rear steering (Incl, Figure 193 - 203)

1шт.

1

A14973

X

COVER - planetary spider

2шт.

2

A12980

BUTTON

- thrust, drive joint

2шт.

4

221-1031

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - planetary cover, 1/4" P.T. sq. sckt. hd.

2шт.

5

L30675

SCREW

BOLT - planetary, Serial Range: cover-spider

16шт.

7

26-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 8

- spider to hub, 1/2 x 1-5/8" N.C. hex. hd.

32шт.

8

92-8

LOCK WASHER,1/2"

32шт.

9

A19885

SHAFT

- planetary pinion

6шт.

10

A14971

GASKET

- planetary, Serial Range: cover-spider

2шт.

11

A14979

U-JOINT SPIDER

SPIDER - planetary

2шт.

12

A14977

GEAR

PINION - planetary (16T)

6шт.

13

A14967

WASHER

- thrust, pinion outer

6шт.

14

A19886

WASHER

- thrust, pinion inner

6шт.

15

A14976

GEAR

- sun, planetary (20T)

2шт.

16

A14969

RING, SNAP

RING - snap, sun gear retainer

2шт.

17

A14966

WASHER

- planetary sun gear

2шт.

18

A1497

GEAR

LOCK - adjusting nut, hub bearing

4шт.

19

A14965

NUT

- adjusitng, hub bearing

2шт.

20

A14975

GEAR

- ring, planetary (52T)

2шт.

21

A14978

HUB

ASSY. - ring gear drive, w/sleeve

2шт.

22

A14964

LOCK ASSY

LOCK - ring gear

8шт.

23

A15983

BOLT,M10 x 1.25 x 40mm, Cl 10.9

CAPSCREW - ring gear lock

16шт.

24

NSS

NOT SOLD SEPARAT

LOCKWIRE - gear lock capscrew

1шт.

27

A14960

BEARING

- cone, wheel hub outer

2шт.

28

A14963

HUB ASSY. - axle wheel & planetary

2шт.

29

A14961

BEARING CUP

CUP - bearing, hub outer

1шт.

30

A14985

BEARING CUP

CUP - bearing, hub inner

1шт.

32

A19887

O-RING,11.5" ID x 11.68" OD x 0.103"

"O" RING - spider to hub seal

2шт.

33

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - drain, 3/4" P.T. Magnetic ctr. - sunk

2шт.

34

A13112

STUD

STUD - axle wheel hub

24шт.

35

A15418

SLINGER

- oil, wheel hub

2шт.

36

A15020

ROLLER BEARING,4" ID x 1.4219"

BEARING - cone, wheel hub inner

1шт.

37

A15033

LOCK NUT

- strg. spindle &, Serial Range: retainer-flange

24шт.

38

A15036

WASHER

- spindle & retainer nut

24шт.

39

L34036

SEAL

RETAINER ASSY. - oil seal, hub bearing (Replaces A15031)

2шт.

40

A15025

O-RING,8 3" ID x 9" OD x 1/8"

"O" RING - retainer to knuckle flange

2шт.

46

A13004

YOKE

- tie rod R.H.

1шт.

47

A13005

YOKE

- tie rod L.H.

1шт.

48

A15082

TIE-ROD

ROD - tie, axle steering

1шт.

49

A13115

LOCK NUT

NUT - tie rod R.H. lock

1шт.

50

A13111

AXLE PIN

PIN - lock, yoke bolt, tie rod

2шт.

51

25282R1

BOLT,Hex, 1/2" - 20 x 2 3/4", Gr 8

- yoke clamp, 1/2 x 2-3/4" N.F. hex. hd., tie rod

4шт.

52

92-8

LOCK WASHER,1/2"

tie rod 1/2"

4шт.

53

129-545

NUT,1/2"-20, G8

Yoke bolt, tie rod 1/2"-20, G8

4шт.

54

A13107

BOLT

- tie rod to axle flange

2шт.

55

A13110

NUT

- tie rod bolt

2шт.

56

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), , Tie rod 1/8" x 1 1/2"

2шт.

57

A15081

BUSHING,22.28mm ID x 28.66mm OD x 56.36mm L

- tie rod yoke bolt

2шт.

58

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str., tie rod

2шт.
