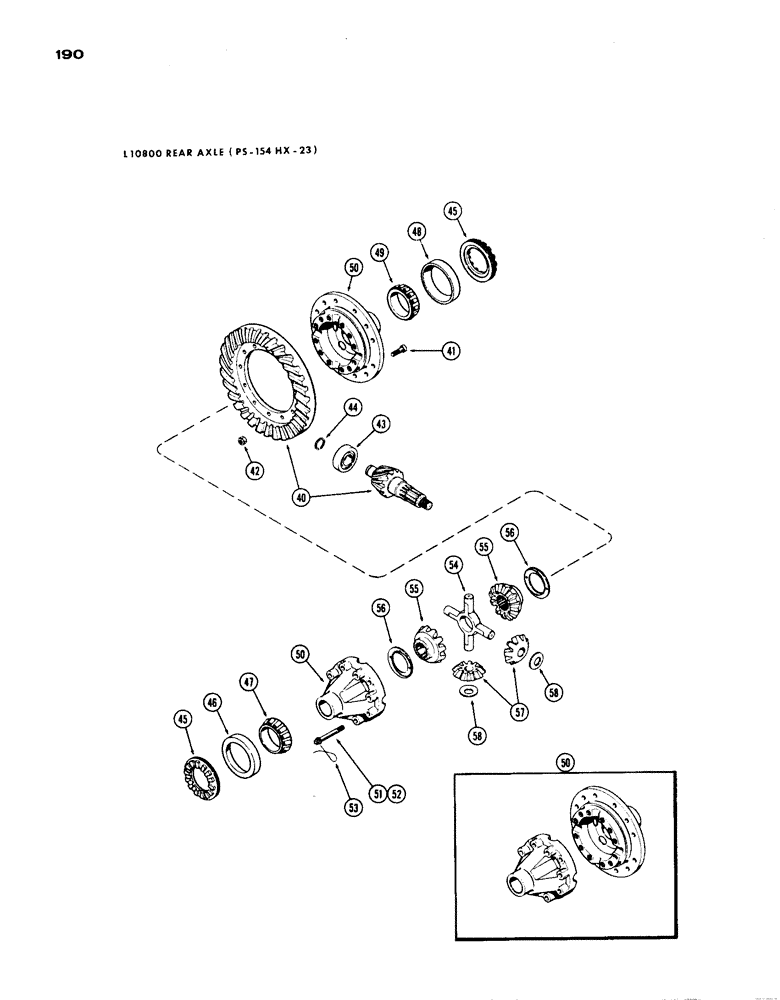

Запчасти Case IH 1200 (190) - L10800 REAR AXLE DIFFERENTIAL, CONTINUED, 15.99 RATIO WITH CARDON JOINT (06) - POWER TRAIN

40

L30385

GEAR & PINION SET - differential (matched), Includes: Ref. 41 - 44

1шт.

41

A16438

BOLT

- gear to differential case

12шт.

42

129-283

NUT

- gear to case bolt, 5/8" N.C. hex. thick sltd.

1шт.

43

L30387

ROLLER BEARING

BEARING - drive pinion rear

1шт.

44

A15442

LOCK

RING - lock, pinion bearing

1шт.

45

A25225

RING

- adjusting, differential bearing

2шт.

46

A25222

BEARING CUP

CUP - bearing, case plain half side

1шт.

47

A50197

ROLLER BEARING,3" ID x 0.906"

BEARING - cone, case plain half side

1шт.

48

ST968

BEARING CUP,3" ID x 1.7875"

CUP - bearing, case flange half side

1шт.

49

A25224

ROLLER BEARING,3" ID x 1.2205"

BEARING - cone, case flange half side

1шт.

50

A25128

CASE

ASSY. - differential (matched set)

1шт.

51

A25145

BOLT

- case halves (3.19" long)

8шт.

52

A25144

BOLT,1/2" - 13 x 2.38", Gr 8, Drilled

BOLT - case halves (2.38" long)

8шт.

53

NSS

NOT SOLD SEPARAT

LOCKWIRE - case halve bolt

16шт.

54

A25143

SPIDER ASSY.

SPIDER - differential pinion

1шт.

55

A25141

GEAR

- side, differential

2шт.

56

A25142

WASHER

- thrust, side gear

2шт.

57

A25131

PINION

- differential

4шт.

58

A25140

WASHER

- thrust, pinion

4шт.
