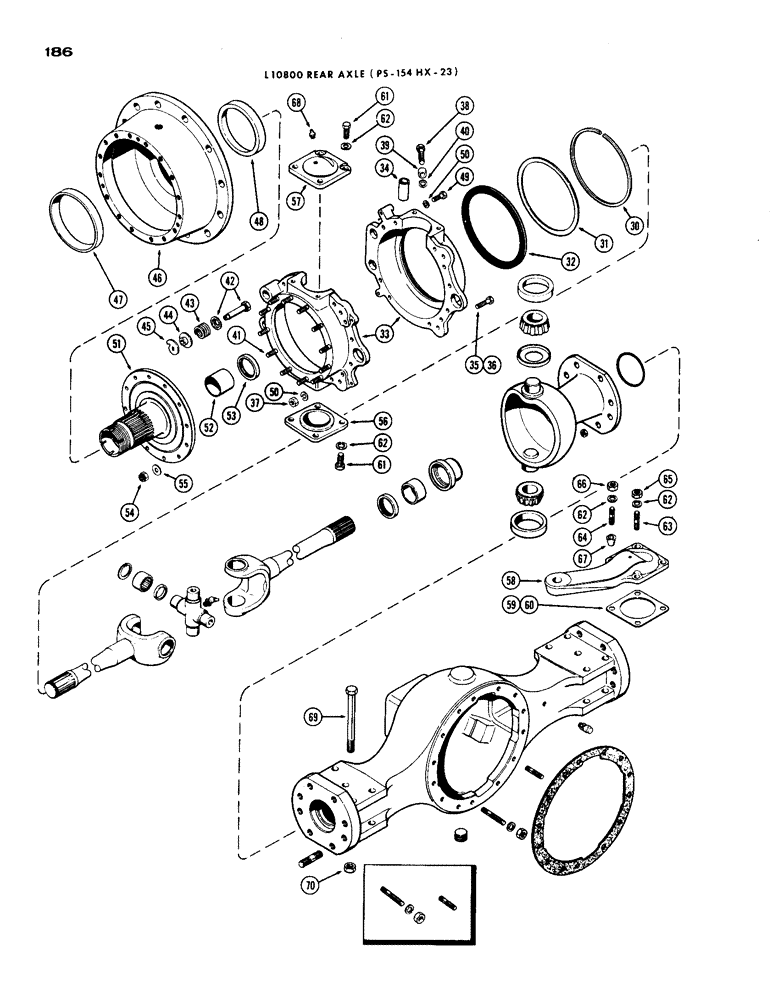

Запчасти Case IH 1200 (186) - L10800 REAR AXLE HOUSING AND KNUCKLE, CONTINUED, 15.99 RATIO WITH CARDON JOINT (06) - POWER TRAIN

30

A15038

RING

- snap, trunnion seal retainer

2шт.

31

A15035

RETAINER

- seal, trunnion

2шт.

32

A15029

SEAL

- trunnion socket

2шт.

33

A15050

HUB CAP

FLANGE ASSY. - strg. knuckle (Matched halves), Includes: Ref. 34 - 48

2шт.

34

A15081

BUSHING,22.28mm ID x 28.66mm OD x 56.36mm L

- yoke bolt

1шт.

35

113-405

X

BOLT - flange halve, 1/2 x 1-1/4" N.C. hex. hd.

2шт.

36

114-407

X

BOLT - flange halves, 1/2 x 1-7/8" N.F. hex. hd.

2шт.

37

25-178

NUT,1/2"-20, G5, Hvy

- flange bolt, 1/2" N.F. hex.

2шт.

38

A15078

SCREW - steering stop

1шт.

39

A15037

SPACER

- stop screw

1шт.

40

A15043

SHIM

- steering stop screw

1шт.

41

A15024

STUD

-, Serial Range: spindle-flange

12шт.

42

A16391

AXLE PIN

BOLT ASSY. - brake shoe adjusting

2шт.

43

A15069

VALVE SPRING

SPRING - brake adjusting bolt

2шт.

44

A15061

SPACER

RETAINER - adjusting bolt spring

2шт.

45

A13201

SHOE

CAM - brake shoe adjusting

2шт.

46

A14963

HUB ASSY. - wheel & planetary, Includes: Ref. 47 and 48

1шт.

47

A14961

BEARING CUP

CUP - bearing, hub outer

1шт.

48

A14985

BEARING CUP

CUP - bearing, hub inner

1шт.

49

113-405

X

BOLT - flange halves, 1/2 x 1-1/4" N.C. hex. hd.

8шт.

50

92-8

LOCK WASHER,1/2"

16шт.

51

A15051

STEERING KNUCKLE

SPINDLE ASSY. - steering, Includes: Ref. 52

2шт.

52

A15032

BUSHING

- steering spindle

1шт.

53

A15028

SEAL

- oil, drive joint shaft

2шт.

54

A15033

LOCK NUT

- spindle to flange stud

24шт.

55

A15036

WASHER

- flange stud nut

24шт.

56

A15047

CAP

- steering bearing lower

2шт.

57

A15046

CAP - steering bearing upper R.H.

1шт.

58

A25268

CAP & ARM - bearing upper L.H.

1шт.

59

A15041

SHIM

- bearing upper & lower cap (.005")

1шт.

60

A15042

SHIM

- beraing upper & lower cap (.010")

1шт.

61

113-603

X

BOLT - bearing cap, 5/8 x 1-1/2" N.C. hex. hd.

12шт.

62

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

63

A15077

STUD

- steering arm cap inner (2-5/16" long)

2шт.

64

A15076

STUD

- steering arm cap outer (2" long)

2шт.

65

A15080

NUT

- strg. arm cap inner stud

2шт.

66

129-562

NUT,5/8"-18, G8

Strg. cap arm stud 5/8"-18, G8

2шт.

67

A13105

BUSHING

DOWEL - split, stud

2шт.

68

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

2шт.

69

116-702

BOLT

BOLT - axle mtg., 3/4 x 8" N.F. hex. hd.

8шт.

70

131-186

LOCK NUT,3/4"-16, GB

NUT - axle mtg. bolt, 3/4" N.F. hex. Esna

8шт.
