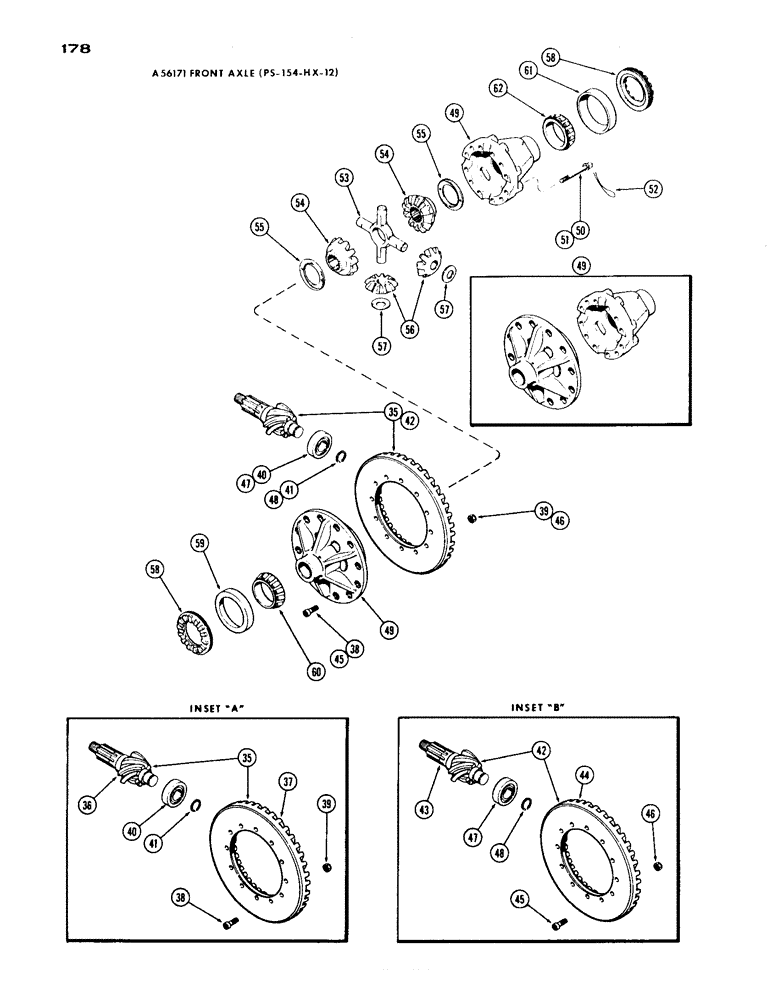

Запчасти Case IH 1200 (178) - A56171 FRONT AXLE DIFFERENTIAL, CONTINUED, 19.03 RATIO WITH CONSTANT VELOCITY JOINT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
35
A25246
PINION & GEAR SET - differential (matched) (exhaust stock, then Order L30391) (See inset "A"), Includes: Ref. 36 - 39
1шт.
36
NSS
NOT SOLD SEPARAT
PINION - drive, differential (9.83" over all length)
1шт.
37
NSS
NOT SOLD SEPARAT
GEAR - drive, differential
1шт.
38
A16438
BOLT
-, Serial Range: gear-case
12шт.
39
129-283
NUT
- gear bolt, 5/8" N.C. hex. thick slotted
12шт.
40
A19892
ROLLER BEARING,1.378 mm ID x 2.8346 mm OD
BEARING - roller, pinion rear (21/32" width) See inset "A"
1шт.
41
A15442
LOCK
RING - lock, pinion rear bearing
1шт.
42
L30391
GEAR-SET
PINION & GEAR SET - diff. (matched) (See inset "B"), Includes: Ref. 43 - 48
1шт.
43
NSS
NOT SOLD SEPARAT
PINION - drive, differential (9.91" over all length)
1шт.
44
NSS
NOT SOLD SEPARAT
GEAR - drive, differential
1шт.
45
A16438
BOLT
-, Serial Range: gear-case
12шт.
46
129-283
NUT
- gear bolt, 5/8" N.C. hex. thick slotted
12шт.
47
L30387
ROLLER BEARING
BEARING - roller, pinion rear (13/16" width)
1шт.
48
A15442
LOCK
RING - lock, pinion bearing
1шт.
49
A25128
CASE
ASSY. - differential (matched set)
1шт.
50
A25145
BOLT
- case halves (3.19" long)
8шт.
51
A25144
BOLT,1/2" - 13 x 2.38", Gr 8, Drilled
BOLT - case halves (2.38" long)
8шт.
52
NSS
NOT SOLD SEPARAT
LOCKWIRE - case bolt
1шт.
53
A25143
SPIDER ASSY.
SPIDER - differential
1шт.
54
A25141
GEAR
- side, differential
2шт.
55
A25142
WASHER
- thrust, side gear
2шт.
56
A25131
PINION
- differential
4шт.
57
A25140
WASHER
- thrust, pinion
4шт.
58
A25225
RING
- adjusting, differential bearing
2шт.
59
40399
WIRE
CUP - cone bearing, case flange half
1шт.
60
A25224
ROLLER BEARING,3" ID x 1.2205"
BEARING - cone, calse flange half
1шт.
61
A25222
BEARING CUP
CUP - cone bearing, case plain half
1шт.
62
A50197
ROLLER BEARING,3" ID x 0.906"
BEARING - cone, case plain half
1шт.
Выбрано товаров: 28
