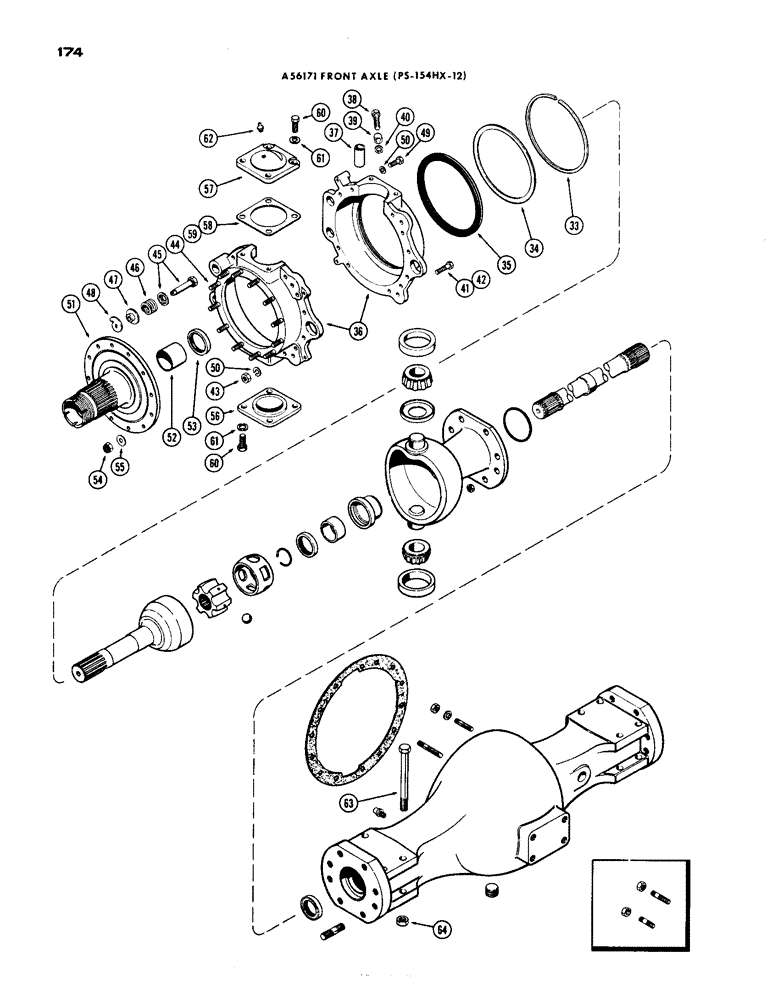

Запчасти Case IH 1200 (174) - A56171 FRONT AXLE HOUSING AND KNUCKLE, CONTINUED, 19.03 RATIO WITH CONSTANT VELOCITY JOINT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
33
A15038
RING
- snap, trunnion socket
2шт.
34
A15035
RETAINER
- seal, trunnion
2шт.
35
A15029
SEAL
- grease, trunnion socket
2шт.
36
A25237
FLANGE
ASSY. - steering knuckle (matched set), Includes: Ref. 37 - 48
2шт.
37
A15081
BUSHING,22.28mm ID x 28.66mm OD x 56.36mm L
- tie rod bolt
1шт.
38
A15078
SCREW - stop, steering
1шт.
39
A15037
SPACER
- stop screw
1шт.
40
A15043
SHIM
- stop screw spacer
1шт.
41
113-405
X
BOLT - flange halves, 1/2 x 1-1/4" N.C. hex. hd.
2шт.
42
87689
BOLT,1/2"-13 x 1.813" OAL, Gr 5
- flange halves, 1/2 x 1-7/8" N.F. hex. hd.
2шт.
43
25-178
NUT,1/2"-20, G5, Hvy
- flange bolt, 1/2" N.F. hex.
2шт.
44
A15024
STUD
- spindle, Serial Range: mtg.,-flange
12шт.
45
A16391
AXLE PIN
BOLT ASSY. - brake shoe adjusting
2шт.
46
A15069
VALVE SPRING
SPRING - brake shoe bolt
2шт.
47
A15061
SPACER
RETAINER - brake stop spring
2шт.
48
A13201
SHOE
CAM - brake adjusting bolt
2шт.
49
113-405
X
BOLT - flange halves, 1/2 x 1-1/4" N.C. hex. hd.
8шт.
50
92-8
LOCK WASHER,1/2"
16шт.
51
A15051
STEERING KNUCKLE
SPINDLE ASSY. - planetary, Includes: Ref. 52
2шт.
52
A15032
BUSHING
- universal drive shaft
1шт.
53
A15028
SEAL
- oil, drive shaft
2шт.
54
A15033
LOCK NUT
- spindle to knuckle flange
24шт.
55
A15036
WASHER
- spindle & flange nut
24шт.
56
A15047
CAP
- bearing, knuckle lower
2шт.
57
A15046
CAP - bearing, knuckle upper
2шт.
58
A15041
SHIM
- bearing cap, upper & lower (.005")
1шт.
59
A15042
SHIM
- bearing cap, upper & lower (.010")
1шт.
60
113-603
X
BOLT - bearing cap, 5/8 x 1-1/2" N.C. hex. hd.
16шт.
62
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, 1/8" P.T. str.
2шт.
63
116-702
BOLT
BOLT - axle to chassis, 3/4 x 8" N.F. hex. hd.
8шт.
64
131-186
LOCK NUT,3/4"-16, GB
NUT - axle bolt, 3/4" N.F. hex. Essna
8шт.
Выбрано товаров: 32
