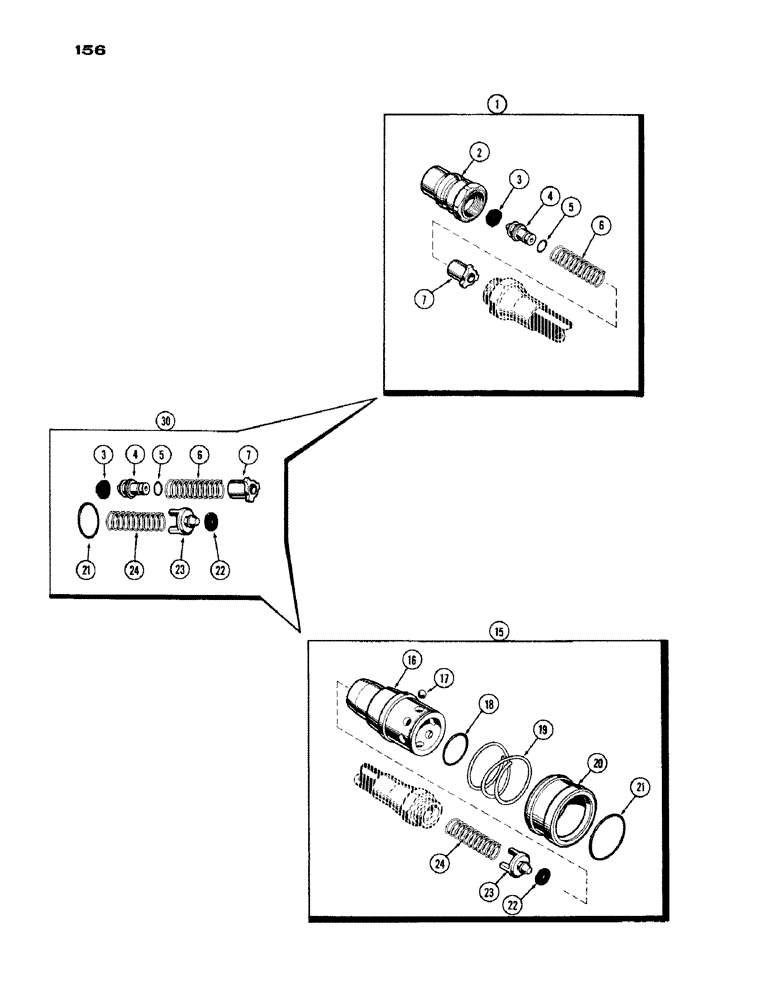

Запчасти Case IH 1200 (156) - MALE COUPLING (08) - HYDRAULICS

1

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - male, hydraulic, Includes: Ref. 2 - 7

4шт.

2

A27356

PIPE FITTING

BODY - plug, male coupling

1шт.

3

A33964

SEAL

- piston

1шт.

4

A27508

PISTON

- plug, coupling

1шт.

5

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - piston sleeve

1шт.

6

A27351

SPRING

- piston

1шт.

7

A9634

SLEEVE

- piston

1шт.

15

A28542

COUPLING, QUICK, FEM

COUPLING ASSY. - female, hydraulic, Includes: Ref. 16 - 24

4шт.

16

A27349

BODY

- socket, female coupling

1шт.

17

211-7

BALL,1/4" Dia

- locking, socket (steel), female coupling 1/4" Dia

8шт.

18

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - socket body, female coupling

1шт.

10

A27354

SPRING

- sleeve, ball retaining, female coupling

1шт.

20

A27353

SLEEVE

SLEEVE - ball retaining, female coupling

1шт.

21

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - snap, socket (rubber), female coupling

1шт.

22

A33964

SEAL

- piston, female coupling

1шт.

23

A26215

PISTON

- socket, female coupling

1шт.

24

A11324

SPRING

- piston, coupling, female

1шт.

30

A40459

KIT

REPAIR KIT - hyd. cplg, (Incl. Ref. 3, 4, 5, 6, 7, 21, 22, 23 and 24), female coupling

1шт.

THE ABOVE KIT WILL SERVICE A28541 & A28542 COUPLINGS

1шт.
