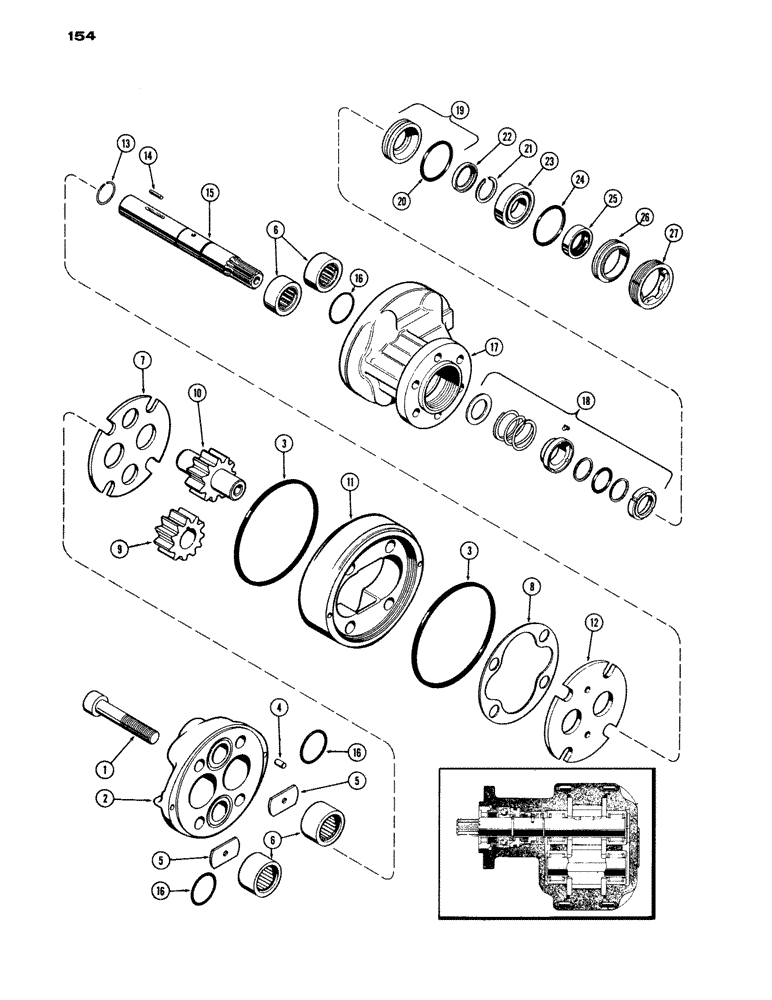

Запчасти Case IH 1200 (154) - HYDRAULIC PUMP (08) - HYDRAULICS

A55163

PUMP ASSY. - hydraulic, Includes: Ref. 1 - 27

1шт.

1

D25838

SCREW - cap, Serial Range: cover-body

4шт.

2

A18343

COVER ASSY

COVER - pump body

1шт.

3

NLS

NO LONGER SERVICED

"O: RING - pump body

2шт.

4

17258

AXLE PIN

PIN - dowel, pump body

4шт.

5

D24018

WASHER

- thrust, drive shaft

1шт.

6

D24009

BEARING

- needle, gear shaft

4шт.

7

A18344

PLATE - wear, front

1шт.

8

D24014

SHIM,.002" Thk

Pump body .002" Thk

1шт.

8

NLS

NO LONGER SERVICED

SHIM - pump body (.001")

1шт.

9

D24002

GEAR

- pump drive

1шт.

10

D24001

GEAR

- driven

1шт.

11

A25085

BODY - pump

1шт.

12

D24012

PLATE - wear, rear

1шт.

13

14245

RING, SNAP

RING - snap, seal retaining

1шт.

14

D24005

PIN

- dowel, drive, Serial Range: gear-shaft

1шт.

15

A25084

SHAFT - pump drive

1шт.

16

D24010

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - pump cover and adapter

3шт.

17

R17827

ADAPTER - pump mounting

1шт.

18

D25847

SEAL ASSY.

- drive shaft

1шт.

19

D24029

SEAL

SEAT & SEAL ASSY. - drive shaft

1шт.

20

D24028

O-RING

"O" RING - seat & seal assy.

1шт.

21

D24026

RING, SNAP

RING - snap, bearing retaining

1шт.

22

D24027

RETAINER

- snap ring

1шт.

23

D24025

BEARING

- ball, drive shaft

1шт.

24

D24024

O-RING

"O" RING - sleeve seal

1шт.

25

D24022

SEAL ASSY.

SEAL - wiper

1шт.

26

D24023

SLEEVE CYLINDER

SLEEVE - wiper seal

1шт.

27

D24021

RETAINER - bearing

1шт.
