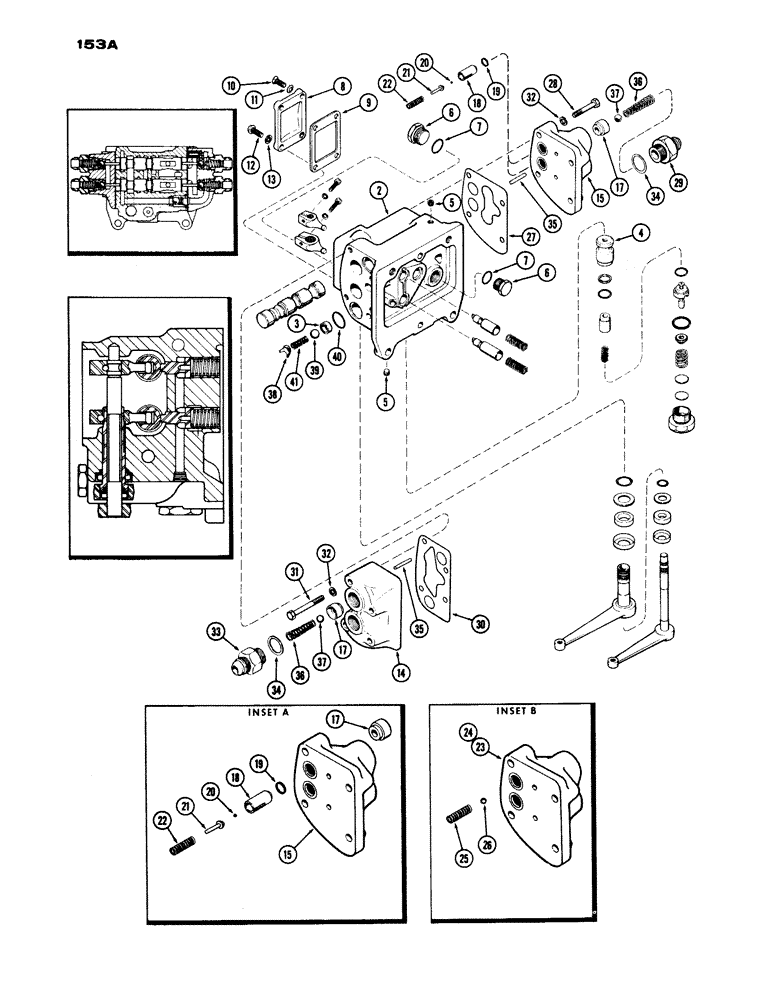

Запчасти Case IH 1200 (153A) - A34896 AUXILIARY VALVE, FIRST USED TRACTOR SERIAL NUMBER 9806321 (08) - HYDRAULICS

A34896

VALVE ASSY. - auxiliary, non-float, Includes: Ref. 2 - 41

1шт.

2

A34379

VALVE

BODY ASSY. - valve, Includes: Ref. 3 - 5

1шт.

3

A30896

RING

SEAT - ball, check valve

4шт.

4

A34486

SLEEVE

- relief valve pilot

1шт.

5

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, hyd. valve body, (1/8" hex. sckt. hd.)

4шт.

6

86512512

PLUG,7/8" - 14 ORB

- Body ports, Incl. Ref. 7 Hex Hd, 7/8"-14 ORB

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8 x 3/4 x 3/32")

1шт.

8

A7353

CAP

- aux. valve body

1шт.

9

A30854

GASKET

- aux. valve body cap

1шт.

10

73-412

SCREW,Slotted Flat Hd, 1/4"-20 x 3/4"

- mach., (1/4 x 3/4" N.C. flat hd.)

1шт.

11

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

1шт.

12

75-412

SCREW,Rd, 1/4" x 3/4"

- mach., (1/4 x 3/4" N.C. rd. hd.)

3шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

14

A57394

HEAD

ASSY. - R.H., Includes: Ref. 17 - 22

1шт.

15

A57407

HEAD

ASSY. - L.H., Includes: Ref. 17 - 22

1шт.

17

NSS

NOT SOLD SEPARAT

INSERT - valve seat (steel)

2шт.

18

A57398

SEAT

- thermal relief valve (nylon)

2шт.

19

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - thermal relief valve

2шт.

20

211-3

BALL,1/8" Dia

- steel, (.) 1/8" Dia

2шт.

21

A57397

GUIDE

- valve ball & spring (nylon)

2шт.

22

A57396

SPRING

- relief valve (black)

2шт.

23

A30886

X

HEAD - L.H., w/out insert (See inset B)

1шт.

24

A23395

HEAD - R.H., w/out insert (See inset B)

1шт.

25

A23364

SPRING

- relief valve (plain) (used w/A30886 & A23395 heads)

2шт.

26

211-7

BALL,1/4" Dia

- relief valve (used w/A30886 & A23395 heads) 1/4" Dia

2шт.

27

A30888

GASKET

- left hand head

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

L.H. head to body Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

28

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

L.H. head to body Hex, 3/8"-16 x 1 3/4", G5

3шт.

29

A34897

FITTING - left hand head

2шт.

30

A30855

GASKET

- right hand head

1шт.

31

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex. hd., R.H. head to body, (3/8 x 2-3/4" N.C.)

4шт.

32

92-6

LOCK WASHER,3/8"

8шт.

33

A34897

FITTING - right hand head

2шт.

34

A27366

GASKET

- hyd. vlave swivel adapter

4шт.

35

A30876

SPOOL

- aux. valve

4шт.

36

A30877

SPRING

- return, ball check

4шт.

37

211-13

BALL,1/2" Dia

- check 1/2" Dia

4шт.

38

A27364

GUIDE

- aux. valve ball check spring

4шт.

39

211-15

BALL,5/8" Dia

- check valve, (.) 5/8" Dia

4шт.

40

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - check valve, (7/8 x 1-1/8 x 1/8")

4шт.

41

A27452

SPRING

- check, outlet

4шт.
