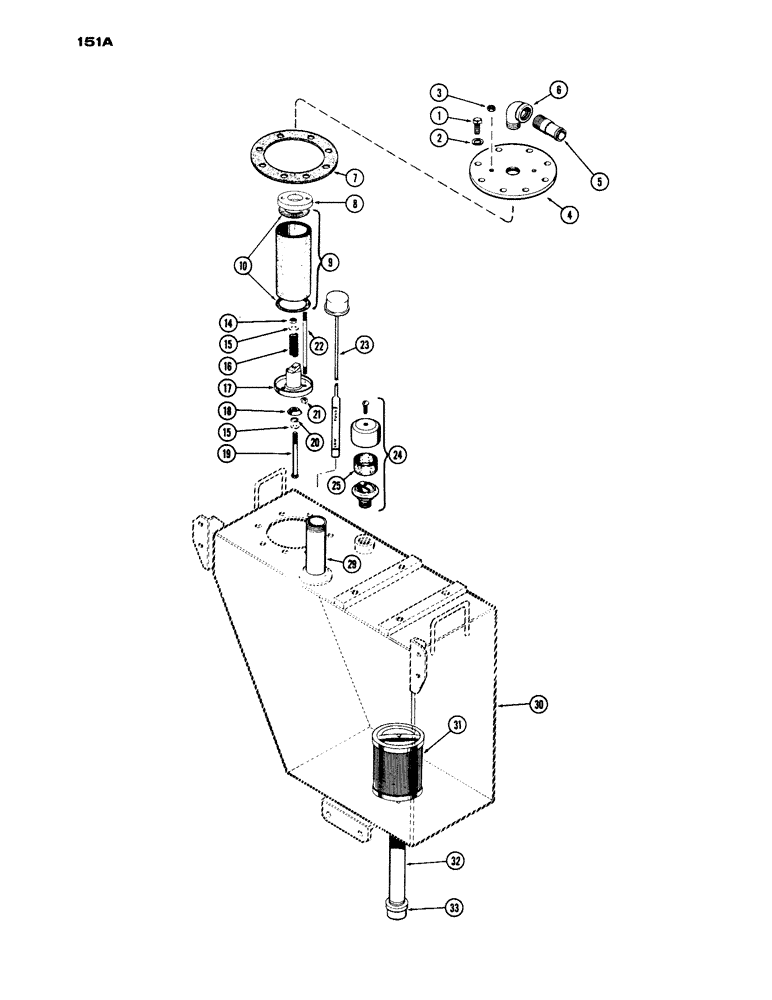

Запчасти Case IH 1200 (151A) - L12699 HYDRAULIC OIL RESERVOIR AND FILTER, FIRST USED TRACTOR SERIAL NUMBER 9806321 (08) - HYDRAULICS

NSS

NOT SOLD SEPARAT

TANK ASSY. - hyd. oil, w/filter (Replaces A55272), Includes: Ref. 1 - 33

1шт.

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover mounting Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

2

92-6

LOCK WASHER,3/8"

8шт.

3

9635082

NUT,5/16" - 18, Gr 5

- hex., (5/16" N.C.)

2шт.

4

L12384

COVER - filter, oil tank

1шт.

5

A12294

NIPPLE, LUBE

NIPPLE - filter inlet

1шт.

6

221-416

ELBOW,90 Degree, 1"-11 1/2, NPT

- filter inlet, (1" x 90 deg. st.)

1шт.

7

A17427

GASKET

- filter cover, oil tank

1шт.

8

A18784

CAP

- oil tank filter

1шт.

9

A16784

KIT

ELEMENT KIT - filter, Includes: Ref. 10

1шт.

10

A16735

GASKET

- filter element

2шт.

14

131-506

NUT,1/4-20

NUT - Flexloc, (1/4" N.C.)

1шт.

15

195-18

WASHER,1/4"

- flat, () 1/4"

2шт.

16

A30709

VALVE SPRING

SPRING - relief, oil filter

1шт.

17

A18780

CYLINDER END CAP

CAP - oil filter

1шт.

18

A18785

COVER ASSY

COVER - relief, oil filter

1шт.

19

13-480

CAP,Hex, 1/4" - 20 x 5", Gr 5

BOLT - filter cap, (1/4 x 5" N.C. hex.)

1шт.

20

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - filter relief cover

1шт.

21

131-507

NUT

- Flexloc, (5/16" N.C.)

2шт.

22

A18786

STUD

- retainer, oil filter

2шт.

23

A55178

GAUGE - level, hyd. oil

1шт.

24

A9238

BREATHER

ASSY. - hyd. oil tank, Includes: Ref. 25

1шт.

25

A10059

FILTER, ELEMENT

ELEMENT - breather

1шт.

29

221-1270

NIPPLE - pipe, (1-1/4 x 6")

1шт.

30

L12698

TANK - hyd. oil

1шт.

31

A17413

FILTER

- oil, hyd. pump inlet

1шт.

32

221-258

PIPE,Nipple, 1" NPT x 11/2"

NIPPLE - pipe, (1 x 13-1/2")

1шт.

33

221-1527

COUPLING

CAP - (1/4" pipe)

1шт.
