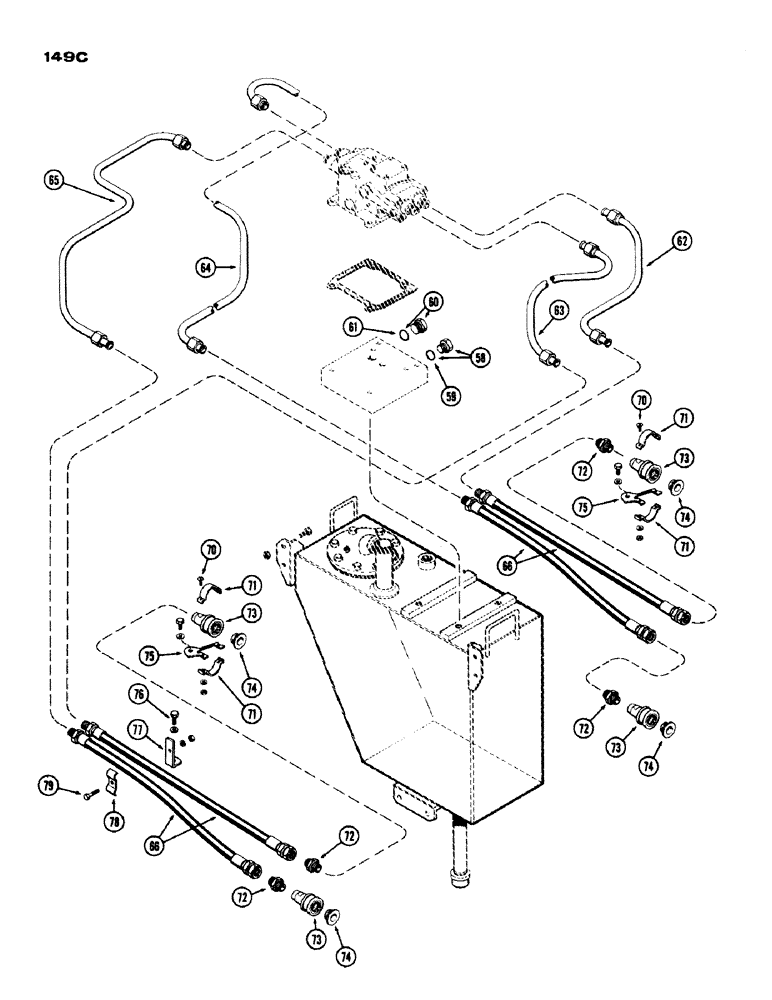

Запчасти Case IH 1200 (149C) - REMOTE HYD. CIRCUIT AND CONTROLS, CONTINUED, FIRST USED TRACTOR SERIAL NUMBER 9806321 (08) - HYDRAULICS

58

218-5159

PLUG,1-3/16" - 12 ORB

FITTING ASSY. - hyd., R.H. side rear, (7/8" tube O.D. x 1-3/16" thread)(this fitting must be inserted into valve mtg. block when 3-point hitch is not used) (Continued from page 149B), Includes: Ref. 59

1шт.

59

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - hyd., (7/8" x 1.048" x 116" width)

1шт.

60

273916

PLUG,Hex, 1-5/16" - 12 ORB

Assy, Hyd., RH side front, (1" tube O.D.) (This fitting must be inserted into valve mtg. block when 3-point hitch is not used), Includes Ref. 61 Hex Hd, 1 5/16"-12 ORB

1шт.

61

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - hyd., (1" x 1.171" x .116" width)

1шт.

62

L12392

TUBE - valve to coupling, R.H. rear

1шт.

63

L12396

TUBE - valve to coupling, L.R. rear

1шт.

64

L12394

TUBE - valve to coupling, R.H. front

1шт.

65

L12393

TUBE - valve to coupling, L.H. front

1шт.

66

A55677

HOSE - hyd. valve tube and coupling (single wire braid)

4шт.

66

T37971

HOSE

- hyd. valve tube & coupling (2 wire braid)

4шт.

70

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

- clamp, (#8-32 x 5/8" rd. hd. mach.)

8шт.

71

A27423

CLAMP

- mtg., break-away coupling

8шт.

72

A55695

ADAPTER - bread-away coupling

4шт.

73

A28542

COUPLING, QUICK, FEM

COUPLING ASSY. - hyd., female, (Repairs, Figure 157)

4шт.

74

A22768

PLUG

- dust, break-away coupling

4шт.

75

A27360

BRACKET

- mtg., break-away coupling

4шт.

76

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Support Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

77

A55965

SUPPORT - hyd. tubes

2шт.

78

R15257

CLAMP

- hyd., Serial Range: tube-support

2шт.

79

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- clamp, 5/16 x 1-1/2" N.C. hex

2шт.
