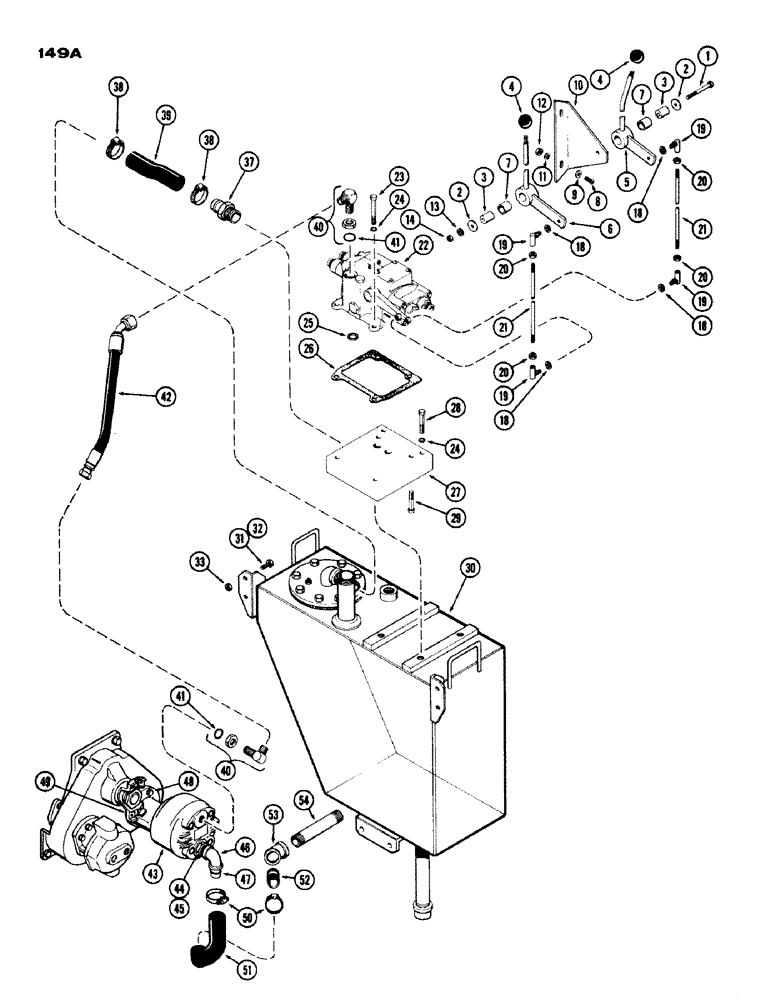

Запчасти Case IH 1200 (149A) - REMOTE HYDRAULIC CIRCUIT AND CONTROLS, FIRST USED TRACTOR SERIAL NUMBER 9806321 (08) - HYDRAULICS

1

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex. hd., (3/8 x 3-1/4" N.C.)

1шт.

2

195-28

WASHER,3/8"

- plain, () 3/8"

2шт.

3

L12366

SLEEVE - remote control lever pivot

2шт.

4

A18852

KNOB

- control lever

2шт.

5

L12381

LEVER ASSY. - remote control, R.H., w/bushing, Includes: Ref. 7

1шт.

6

L12382

LEVER ASSY. - remote control, L.H., w/bushing, Includes: Ref. 7

1шт.

7

L12369

BUSHING - pivot, control lever

1шт.

8

75-616

SCREW - mach., (3/8 x 1" rd. hd. N.C.

2шт.

9

95-6

WASHER,3/8"

- plain, 3/8"

2шт.

10

L12398

BRACKET - remote control lever

1шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

9635082

NUT,5/16" - 18, Gr 5

- hex., (3/8" N.C.)

2шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- hex., (3/8" N.C.)

1шт.

18

92-5

LOCK WASHER,5/16"

4шт.

19

A27382

BALL

JOINT - ball

4шт.

20

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., (5/16" N.F. jam)

4шт.

21

L12375

ROD - remote control

2шт.

22

A34896

VALE ASSY. - remote hyd. (Repairs Figure 153B)

1шт.

23

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

Block to valve to tank Hex, 1/2"-13 x 3 1/4", G5

2шт.

24

92-8

LOCK WASHER,1/2"

4шт.

25

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

GASKET - remote hyd. valve

1шт.

26

A32349

GASKET

- remote hyd. valve to valve mtg. block

1шт.

27

L12397

BLOCK - valve mounting

1шт.

28

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex. hd., (1/2 x 2-1/2" N.C.) block to tank

2шт.

29

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex. hd., (1/2 x 2-1/4" N.C.), block to valve

2шт.

30

NSS

NOT SOLD SEPARAT

TANK ASSY. - hyd. oil, (Repairs, Figure 151B)

1шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Tank mounting Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

32

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Tank mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

33

131-6

LOCK NUT,3/8"-16, GC

NUT - self-locking, (3/8" N.C. hex.)

4шт.

37

A12294

NIPPLE, LUBE

NIPPLE - hose to valve mtg. block

1шт.

38

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, (1-3/16" to 1-3/4")

2шт.

39

L12368

HOSE -, Serial Range: valve-reservoir

1шт.

40

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER ASSY. - hyd. pump & valve, Incl. Ref. 41

2шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - adapter, (59/64 x 1-5/32 x 7/64")

1шт.

42

L12387

HOSE - pump to remote hyd. valve

1шт.

43

A55163

PUMP ASSY. - remote hyd., (Repairs, Figure 155)

1шт.

44

A16921

FITTING ASSY. - hyd. pump inlet, Includes: Ref. 45

1шт.

45

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - inlet fitting, (1-11/64 x 1-13/32 x 7/64")

1шт.

46

221-1379

ELBOW

- hyd. pump, (90 deg. x 1" P.T.)

1шт.

47

A12294

NIPPLE, LUBE

NIPPLE -, Serial Range: elbow-hose

1шт.

48

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

SCREW - cap, (3/8 x 1-1/4" N.C. hex. sckt. hd.)

6шт.

49

A17629

GASKET - pump mounting

1шт.

50

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, (1-3/16" to 1-3/4")

2шт.

51

L12371

HOSE -, Serial Range: reservoir-pump

1шт.

52

A12294

NIPPLE, LUBE

NIPPLE - oil, Serial Range: tank-pump

1шт.

53

221-1370

ELBOW

- pipe, (1" x 45 deg.)

1шт.

54

221-1248

NIPPLE - pipe, (1" x 6-1/2")

1шт.
