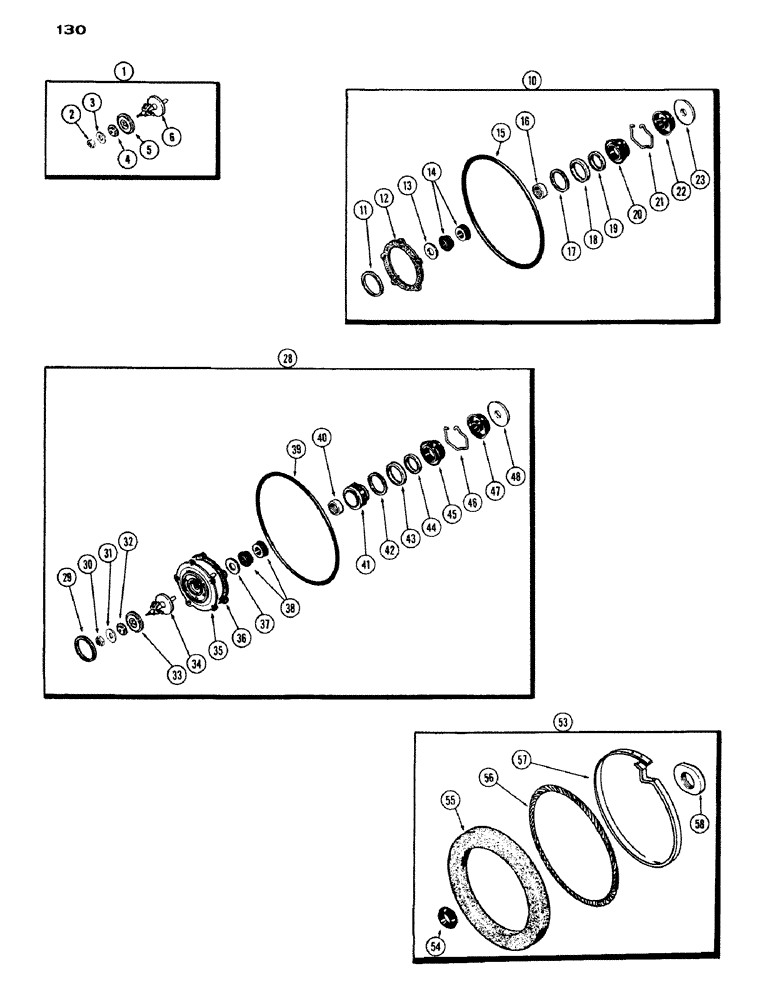

Запчасти Case IH 1200 (130) - HYDROVAC CYLINDER REPAIR KITS (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
A24877
KIT
- poppet replacement, Includes: Ref. 2 - 6
1шт.
2
129-15
NUT,#6-32
Valve poppet #6-32
1шт.
3
N S S
WASHER - poppet (REPLACES A24862)
1шт.
4
N S S
POPPET - valve (REPLACES A24865)
1шт.
5
N S S
SEAL - valve REPLACES A24861)
1шт.
6
N S S
SEAL - valve REPLACES A24860
1шт.
10
A24878
REPAIR KIT
KIT - minor repair, Includes: Ref. 11 - 48
1шт.
11
A24869
GASKET - cover
1шт.
12
A19673
GASKET - valve body
1шт.
13
NSS
NOT SOLD SEPARAT
SEAL - valve fitting
1шт.
14
NSS
NOT SOLD SEPARAT
CUP - piston
2шт.
15
A19695
SEAL
RING - cylinder seal
1шт.
16
NSS
NOT SOLD SEPARAT
SEAL - push rod
1шт.
17
A19703
GASKET
- end cap
1шт.
18
A19706
SEAL
- piston
1шт.
19
A19707
SEAL
- slave tube
1шт.
20
NSS
NOT SOLD SEPARAT
CUP - piston
1шт.
21
NSS
NOT SOLD SEPARAT
RING - snap
1шт.
22
NSS
NOT SOLD SEPARAT
CUP - piston
1шт.
23
NSS
NOT SOLD SEPARAT
WASHER - piston rod
1шт.
28
A24876
KIT
- major repair
1шт.
29
A24869
GASKET - cover
1шт.
30
129-5
NUT,#6-32
Valve poppet #6-32
1шт.
31
A24862
WASHER - poppet
1шт.
32
A24865
SEAL - valve
1шт.
33
A24861
SEAL ASSY.
POPPET - valve
1шт.
34
A24860
SEAL ASSY.
SEAL - valve
1шт.
35
A24872
DIAPHRAGM
ASSY. - poppet
1шт.
36
A19673
GASKET - valve body
1шт.
37
NSS
NOT SOLD SEPARAT
SEAL - valve fitting
1шт.
38
NSS
NOT SOLD SEPARAT
CUP - piston
2шт.
39
A19695
SEAL
RING - cylinder seal
1шт.
40
NSS
NOT SOLD SEPARAT
SEAL - push rod
1шт.
41
A19699
VALVE
- master cylinder
1шт.
42
A19703
GASKET
- end cap
1шт.
43
A19706
SEAL
- piston
1шт.
44
A19707
SEAL
- slave tube
1шт.
45
NSS
NOT SOLD SEPARAT
CUP - piston
1шт.
46
NSS
NOT SOLD SEPARAT
RING - snap
1шт.
47
NSS
NOT SOLD SEPARAT
CUP - piston
1шт.
48
NSS
NOT SOLD SEPARAT
WASHER - piston rod
1шт.
53
A19735
KIT
- piston packing, Includes: Ref. 54 - 58
1шт.
54
A19689
REPAIR KIT
SEAL - piston rod
1шт.
55
NSS
NOT SOLD SEPARAT
PACKING - piston
1шт.
56
A19686
GASKET
FELT - piston
1шт.
57
A19685
RING
- piston packing
1шт.
58
A19683
NUT - piston felt retainer
1шт.
Выбрано товаров: 47
