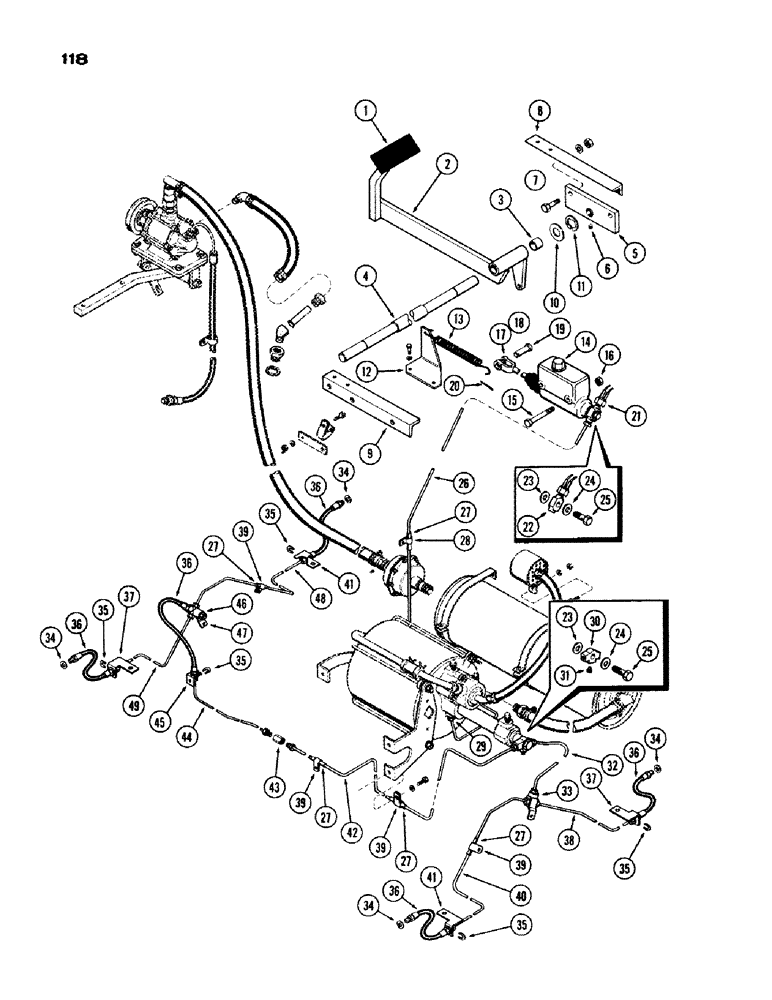

Запчасти Case IH 1200 (118) - HYDRAULIC BRAKE LINES AND PEDAL SYSTEM (07) - BRAKES

1

F9197

PAD

- brake pedal foot

1шт.

2

A55499

PEDAL ASSY. - brake foot, Includes: Ref. 3

1шт.

3

A30845

BUSHING

- pedal pivot

1шт.

4

L10530

SHAFT - brake pedal pivot

1шт.

5

L10516

SUPPORT - pedal shaft L.H. & R.H.

2шт.

6

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16 x 1/2" N.C. hex. sckt. hd.

2шт.

7

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Support Hex, 1/2"-13 x 1 3/4", G5

4шт.

8

L10516

ANGLE - shaft support mtg. R.H.

1шт.

9

L10515

ANGLE - shaft support mtg. L.H.

1шт.

10

195-111

WASHER,1"

- plain, 1-1/16 x 1-1/2 x 11/64"

1шт.

11

D21476

"E" RING - brake pedal retaining

1шт.

12

A56105

BRACKET - pedal return spring

1шт.

13

L10873

SPRING

- brake pedal return

1шт.

14

A18557

CYLINDER

ASSY. - brake master (Repairs, F. 123)

1шт.

15

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cyl. mtg., 3/8 x 3-1/2" N.C. hex.

2шт.

16

131-6

LOCK NUT,3/8"-16, GC

NUT ASSY. - special, 3/8" N.C. hex.

2шт.

17

A55506

ROD - push, master cylinder

1шт.

18

25-157

JAM NUT,Jam, 7/16"-20, G5

- jam, 7/16" N.F. hex.

1шт.

19

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2" SAE

1шт.

20

132-8

X

PIN - cotter, 1/8 x 1"

1шт.

21

A12491

SWITCH

- brake, hydraulic stop light

1шт.

22

A12863

SUN VISOR

FITTING - hyd. block, master cylinder

1шт.

23

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- washer, hyd. block inner (copper)

2шт.

24

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - washer, hyd. block outer (copper)

24шт.

25

A12864

BOLT

- hydraulic block mounting

2шт.

26

A55406

TUBE ASSY. - master cyl. to hydrovac unit

1шт.

27

A12458

SLEEVE

LOOM - hydraulic tube clip

6шт.

28

A7922

CLIP

- master cylinder tube

1шт.

29

A18273

FITTING

- master cyl, hyd. tube

1шт.

30

A17386

FITTING

- hydrovac block

1шт.

31

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd.

1шт.

32

A55410

TUBE ASSY. - brake, hydrovac to axle tee

1шт.

33

A12452

FITTING

TEE - rear axle hydraulic brake line

1шт.

34

A12643

WASHER

- brake hose

4шт.

35

A12628

WASHER

"C" WASHER - bracket to brake hose

5шт.

36

A56478

HYDRAULIC HOSE

HOSE - brake line

5шт.

37

L11401

BRACKET - brake hose & line R.H. rear & L.H. front

2шт.

38

A14490

TUBE ASSY. - rear axle R.H. brake

1шт.

30

A12454

CLIP

- brake line tube retaining

5шт.

40

A14491

TUBE ASSY. - rear axle brake L.H.

1шт.

41

L11400

BRACKET - brake hose & line L.R. rear & R.H. front

2шт.

42

A55496

TUBE ASSY. - hydrovac tee to front brake line

1шт.

43

222-1053

HYD CONNECTOR,1/4" Inv Fl

UNION - tube connector, 1/4" tube x 7/16"-14

1шт.

44

A55498

TUBE ASSY. - front brake line

1шт.

45

A55498

TUBE ASSY. - front brake line

1шт.

46

A13100

TEE

- front axle brake line

1шт.

47

A13101

STRAP - front axle tee mounting

1шт.

48

L11397

TUBE ASSY. - front axle brake R.H.

1шт.

49

L11398

TUBE ASSY. - front axle brake L.H.

1шт.
