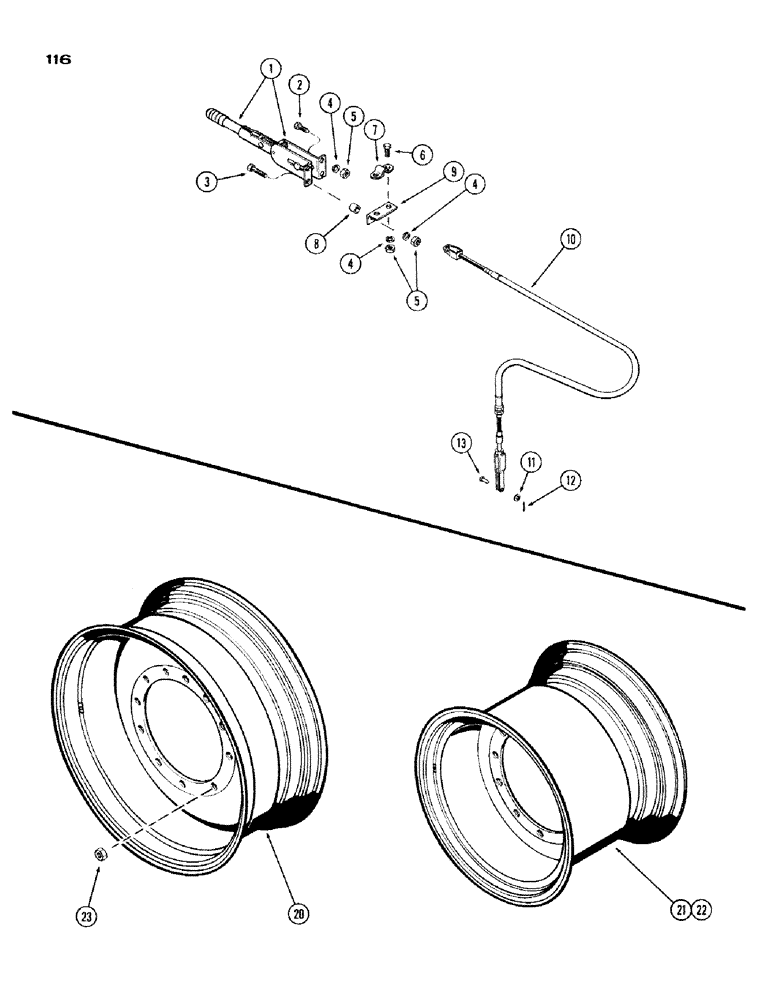

Запчасти Case IH 1200 (116) - PARKING BRAKE SYSTEM (07) - BRAKES

1

A17214

LEVER

ASSY. - hand, parking brake

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Lever mounting Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

3

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Lever mounting Hex, 3/8"-16 x 1 3/4", G5

2шт.

4

92-6

LOCK WASHER,3/8"

6шт.

5

25-106

NUT,3/8"-16, G5

- hex., 3/8" N.C.

6шт.

6

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Cable clamp Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

7

A55980

CLAMP

- cable, brake

1шт.

8

T31088

SPACER,3/8" Pipe x 1/2"

Mounting Lever 3/8" Pipe x 1/2"

1шт.

9

A55979

BRACKET - brake cable

1шт.

10

A55979

CABLE ASSY. - parking brake

1шт.

11

95-6

WASHER,3/8"

- plain, 3/8"

1шт.

12

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

13

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

20

A56142

WHEEL - drive, 18.4 x 15-28 tire

4шт.

21

A55180

WHEEL - drive, 18.4 x 15-34 tire

4шт.

22

A55666

WHEEL - drive, 23.1 x 18-26 tire

4шт.

23

A12522

WHEEL NUT

- drive wheel mounting

48шт.
