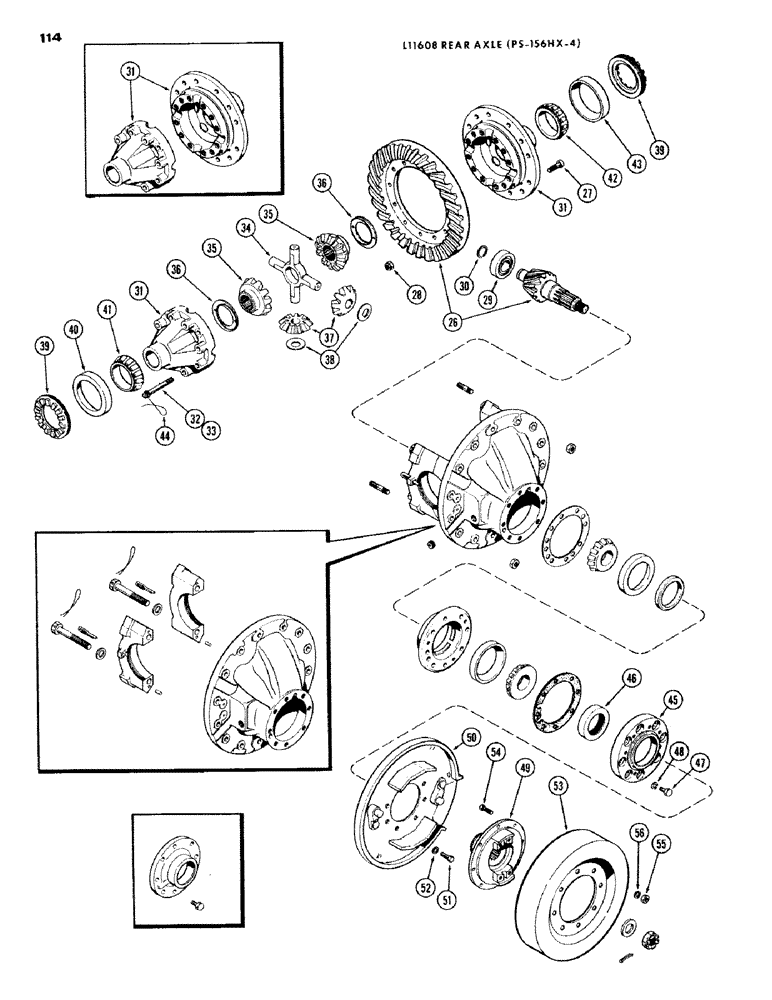

Запчасти Case IH 1200 (114) - L11608 REAR AXLE DIFFERENTIAL, CONTINUED (06) - POWER TRAIN

L30758

DIFFERENTIAL ASSY. - rear axle, Includes: Ref. 26 - 44 and Ref. 1 - 25 on Figure 112

1шт.

26

L30391

GEAR-SET

GEAR & PINION SET - differential, matched, Includes: Ref. 27 - 30

1шт.

27

A16438

BOLT

-, Serial Range: gear-case

12шт.

28

129-283

NUT

- hex., 5/8" N.C. slotted

12шт.

29

L30387

ROLLER BEARING

BEARING - pinion rear

1шт.

30

A15442

LOCK

RING - lock, pinion bearing

1шт.

L30635

DIFFERENTIAL

ASSY. - pinion & case, Includes: Ref. 31 - 38

1шт.

31

A25128

CASE

SET - differential, matched halves

1шт.

32

A25145

BOLT

- differential case (3.19" long)

8шт.

33

A25144

BOLT,1/2" - 13 x 2.38", Gr 8, Drilled

BOLT - differential case (2.38" long)

8шт.

34

A25143

SPIDER ASSY.

SPIDER - differential

1шт.

35

A25141

GEAR

- side, differential

2шт.

36

A25142

WASHER

- thrust, side gear

2шт.

37

A25131

PINION

- differential

4шт.

38

A25140

WASHER

- thrust, pinion

4шт.

39

A25225

RING

- adjusting, differential bearing lock

2шт.

40

A25222

BEARING CUP

CUP - bearing, differential case R.H. side

1шт.

41

A50197

ROLLER BEARING,3" ID x 0.906"

BEARING - cone, differential case R.H. side

1шт.

42

A25224

ROLLER BEARING,3" ID x 1.2205"

BEARING - cone, differential flange L.H. side

1шт.

43

ST968

BEARING CUP,3" ID x 1.7875"

CUP - bearing, differential flange L.H. side

1шт.

44

NSS

NOT SOLD SEPARAT

LOCKWIRE - differential case bolt

16шт.

45

A25273

ADAPTER - bearing cover & brake

1шт.

46

A25274

SEAL

- oil, adapter

1шт.

47

113-314

X

BOLT - adapter to flange, 7/16 x 2" N.C., hex. hd.

8шт.

48

92-7

LOCK WASHER,7/16"

8шт.

49

A25272

FLANGE - compantion

1шт.

50

A25269

BACKING PLATE

PLATE ASSY. - back, parking brake

1шт.

51

113-313

BOLT - brake plate mtg., 7/16 x 1" N.C. hex. hd.

7шт.

52

92-7

LOCK WASHER,7/16"

7шт.

53

A25271

BRAKE DRUM

DRUM - parking brake

1шт.

54

28-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 8

- brake drum mtg., 3/8 x 1-1/4" N.F. hex. hd.

8шт.

55

129-524

NUT,3/8"-24, G8

Drum mtg. bolt 3/8"-24, G8

8шт.

56

92-6

LOCK WASHER,3/8"

8шт.
