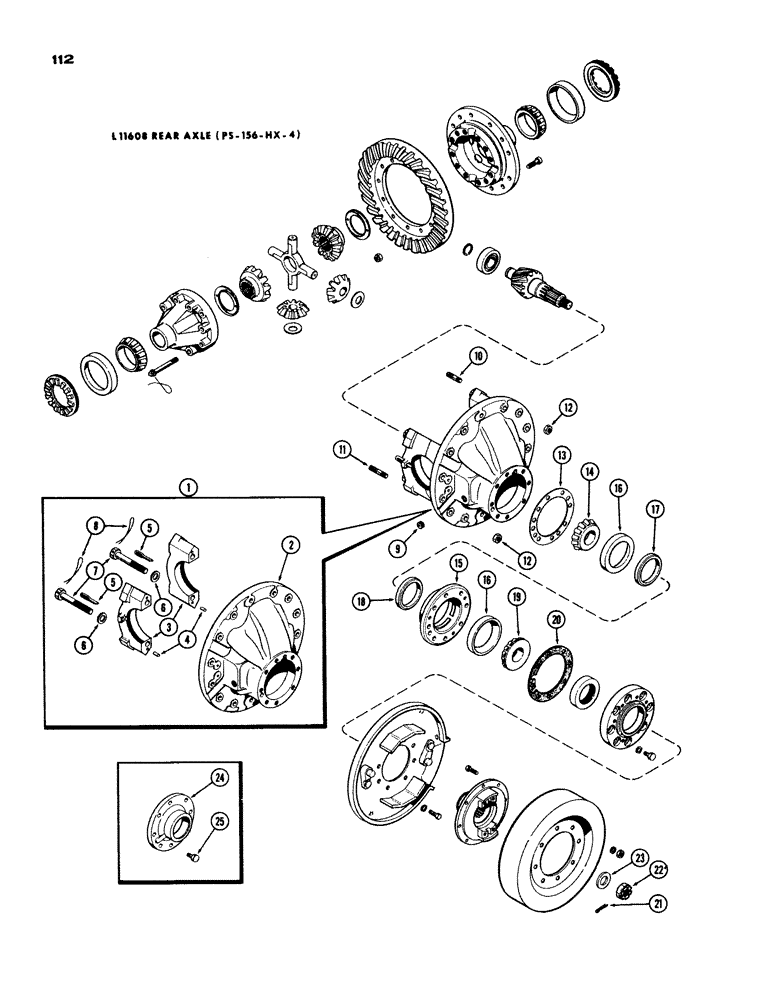

Запчасти Case IH 1200 (112) - L11608 REAR AXLE DIFFERENTIAL (06) - POWER TRAIN

L30758

DIFFERENTIAL ASSY. - rear axle, Includes: Ref. 1 - 25 and Ref. 26 - 44 on Figure114

1шт.

1

L30382

CARRIER ASSY. - differential, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

CARRIER - differential (Order Ref. 1)

1шт.

3

NSS

NOT SOLD SEPARAT

CAP ASSY. - differential bearing, Includes: Ref. 4

2шт.

4

A15443

DOWEL

PIN - dowel, brg. cap locating

2шт.

5

L30029

PIN

- cotter, adjusting lock

2шт.

WHEN LOCK PIN REF. #5 IS REMOVED IN DISASSEMBLY, IT MUST BE REPLACED WITH A NEW PIN.

1шт.

6

A16783

WASHER

- bearing cap bolt

4шт.

7

A12983

ROD

BOLT - bearing, Serial Range: cap-carrier

4шт.

8

NSS

NOT SOLD SEPARAT

LOCKWIRE - bearing cap bolt

4шт.

9

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, carrier, 3/4" P.T. sq. sckt. hd.

1шт.

10

A13130

STUD

- carrier to bearing (2-5/8" long)

10шт.

11

L30673

STUD

- carrier to housing (3" long)

4шт.

12

131-74

LOCK NUT,1/2"-20

NUT - carrier stud, 1/2" N.F. hex. Esna

14шт.

13

A12956

SHIM,.005" Thk

Bearing cage .005" Thk

1шт.

13

A12957

SHIM,.010" Thk

Bearing cage .010" Thk

1шт.

13

A12958

SHIM,.003" Thk

Bearing cage .003" Thk

1шт.

14

L30032

ROLLER BEARING

- cone, inner pinion

1шт.

15

L30030

CAGE

ASSY. - pinion bearing, Includes: Ref. 16

1шт.

16

A9840

BEARING CUP

CUP - bearing, pinion bearing

2шт.

17

L30388

SPACER

pinion brg. (.191")

1шт.

18

A25156

SPACER

- pinion bearing cone (.187")

1шт.

18

A25157

SPACER - pinion bearing cone (.188")

1шт.

18

A25158

SPACER - pinion bearing cone (.189")

1шт.

18

A25159

SPACER

- pinion bearing cone (.190")

1шт.

18

A25160

SPACER - pinion bearing cone (.191")

1шт.

18

A25161

SPACER - pinion bearing cone (.192")

1шт.

18

A25162

SPACER

- pinion bearing cone (.198")

1шт.

18

A25163

SPACER

- pinion bearing cone (.204")

1шт.

18

A25164

SPACER

- pinion bearing cone (.210")

1шт.

18

A25165

SPACER - pinion bearing cone (.216")

1шт.

18

A12963

SPACER

- pinion bearing cone (.222")

1шт.

19

A9841

ROLLER BEARING,1.875" ID x 1.0594"

BEARING - cone, pinion outer

1шт.

20

A12955

GASKET

- cover, bearing cage

1шт.

22

F19657

NUT

- companion retainer

1шт.

23

A15441

WASHER

- drive pinion nut

1шт.

24

A25155

COVER

ASSY. - pinion bearing (used on front axle only, remove & put in stock)

1шт.

25

113-315

BOLT - cover bolt, 7/16 x 1-5/8" N.C. hex. hd. (used with Ref. 24 only, remove and put in stock)

8шт.

21

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.
